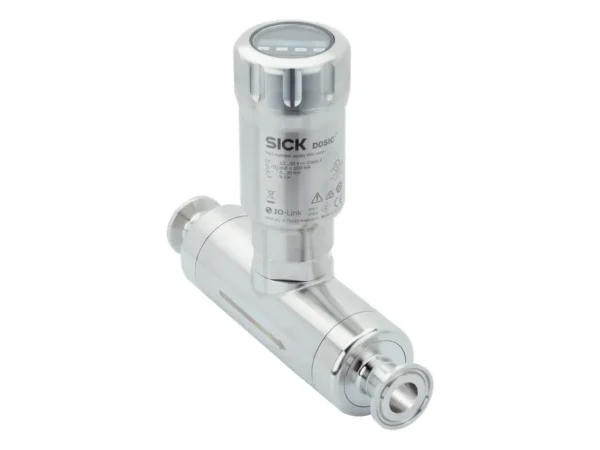

Home Akış (Flow) Sensörleri FUM-H025F1CD80000 – 1082031 🔍 FUM-H025F1CD80000 – 1082031 ✉ Teklif Al Teklif Al Stok kodu: 1082031 Kategoriler: Akış (Flow) Sensörleri Marka: SICK Açıklama Tecnichal data Features Measurement principle Ultrasonic sensor Measurement Ultrasonic Medium Conductive and non-conductive liquids Nominal width measuring tube DN 25 Process temperature –20 °C … +95 °C, up to 143°C for 60 minutes for SIP process (temperature measurement only) Process pressure –0.5 bar … 16 bar Communication interface IO-Link, IO-Link V1.1 EHEDG approval ✔ cULus certificate ✔ RoHS certificate ✔ FDA ✔ Temperature measurement ✔ Performance Minimim flow ≥ 1.5 l/min Maximum flow ≥ 250 l/min Inlet zone 5 x DN (12.5 cm) Output zone 3 x DN (7.5 cm) Conductivity No limitation Measurement accuracy ± 1 % From measured value Repeatability 0.5 % Resolution 10 ml/min Response time 12 ms Electronics Supply voltage 12 V DC … 30 V DC Power consumption < 3 W without output load Initialization time ≤ 5 s Protection class III Connection type M12 round connector x 1, 8-pin Output signal 2 x analog output: 4 mA … 20 mA, 2 x digital input or output (configurable) Output load 4 mA … 20 mA, 500 ohms when Uv > 15 V, 350 ohms when Uv > 12 V Lower signal level 3.5 mA … 3.8 mA Upper signal level 21.5 mA … 20.5 mA Digital output ≤ 100 mA Impulse output signal 50 µs … 2 s Impuls/frequency output 0 kHz … 10 kHz Inductive load < 1 H Capacitive load < 100 nF < 2.5 nF (IO-Link) EMC EN 61326-1, EN 61326-2-3 Limit digital inputs HIGH state voltage > 16.0 V, LOW state voltage < 4.0 V MTTF > 63 years Mechanics Process connection Clamp (DIN 32676) DN 25 Wetted parts Stainless steel 1.4404 (Ra ≤ 0,8 µm) Housing material Stainless steel 1,4305 Housing design With viewing window made from PMMA (acrylic glass) Enclosure rating IP67/IP69 (DIN EN 60529) Weight 3 kg Ambient data Ambient operating temperature 0 °C … +60 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27200412 ECLASS 5.1.4 27200412 ECLASS 6.0 27200412 ECLASS 6.2 27200412 ECLASS 7.0 27200412 ECLASS 8.0 27200412 ECLASS 8.1 27200412 ECLASS 9.0 27200412 ECLASS 10.0 27200412 ECLASS 11.0 27200412 ECLASS 12.0 27200412 ETIM 5.0 EC002580 ETIM 6.0 EC002580 ETIM 7.0 EC002580 ETIM 8.0 EC002580 UNSPSC 16.0901 41112501 İlgili ürünler FUM-H015F1NC80000 – 1082026SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FUM-H025F1GE50000 – 1082028SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FUM-H015F1GC80000 – 1082024SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FUM-H025F1MD50000 – 1082029SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git
Tecnichal data Features Measurement principle Ultrasonic sensor Measurement Ultrasonic Medium Conductive and non-conductive liquids Nominal width measuring tube DN 25 Process temperature –20 °C … +95 °C, up to 143°C for 60 minutes for SIP process (temperature measurement only) Process pressure –0.5 bar … 16 bar Communication interface IO-Link, IO-Link V1.1 EHEDG approval ✔ cULus certificate ✔ RoHS certificate ✔ FDA ✔ Temperature measurement ✔ Performance Minimim flow ≥ 1.5 l/min Maximum flow ≥ 250 l/min Inlet zone 5 x DN (12.5 cm) Output zone 3 x DN (7.5 cm) Conductivity No limitation Measurement accuracy ± 1 % From measured value Repeatability 0.5 % Resolution 10 ml/min Response time 12 ms Electronics Supply voltage 12 V DC … 30 V DC Power consumption < 3 W without output load Initialization time ≤ 5 s Protection class III Connection type M12 round connector x 1, 8-pin Output signal 2 x analog output: 4 mA … 20 mA, 2 x digital input or output (configurable) Output load 4 mA … 20 mA, 500 ohms when Uv > 15 V, 350 ohms when Uv > 12 V Lower signal level 3.5 mA … 3.8 mA Upper signal level 21.5 mA … 20.5 mA Digital output ≤ 100 mA Impulse output signal 50 µs … 2 s Impuls/frequency output 0 kHz … 10 kHz Inductive load < 1 H Capacitive load < 100 nF < 2.5 nF (IO-Link) EMC EN 61326-1, EN 61326-2-3 Limit digital inputs HIGH state voltage > 16.0 V, LOW state voltage < 4.0 V MTTF > 63 years Mechanics Process connection Clamp (DIN 32676) DN 25 Wetted parts Stainless steel 1.4404 (Ra ≤ 0,8 µm) Housing material Stainless steel 1,4305 Housing design With viewing window made from PMMA (acrylic glass) Enclosure rating IP67/IP69 (DIN EN 60529) Weight 3 kg Ambient data Ambient operating temperature 0 °C … +60 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27200412 ECLASS 5.1.4 27200412 ECLASS 6.0 27200412 ECLASS 6.2 27200412 ECLASS 7.0 27200412 ECLASS 8.0 27200412 ECLASS 8.1 27200412 ECLASS 9.0 27200412 ECLASS 10.0 27200412 ECLASS 11.0 27200412 ECLASS 12.0 27200412 ETIM 5.0 EC002580 ETIM 6.0 EC002580 ETIM 7.0 EC002580 ETIM 8.0 EC002580 UNSPSC 16.0901 41112501
