Name: SICK 1091146 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 1091146
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Measurement principle

Calorimetric measurement process

Medium

Water and oil-based liquids

Pipe diameters

≥ 25 mm

Measuring range
	3 cm/s … 300 cm/s, Water
	3 cm/s … 300 cm/s, Oil A / Oil B
	3 cm/s … 600 cm/s, Taught-in media

Process temperature

–40 °C … +150 °C

Process pressure

–1 bar … 100 bar, 40 bar (with SICK T-connector DN15, DN25), 25 bar (with SICK T-connector DN40), 20 bar (with SICK T-connector DN50)

Communication interface

IO-Link, IO-Link V1.1, COM3 (230.4 kbit/s)

Temperature measurement

✔

Indication

✔
OLED + 3 status LEDs

Performance

Inlet zone

5 x DN

Output zone

3 x DN

Measurement accuracy
	± 7 % From measured value + 2% of measuring range end value

Repeatability

< 1 cm/s

Resolution

0.01 m/s Speed; 0.1 L/min volume; 0.1% relative (via IO-Link)

Temperature drift

< 0.5 cm / (s*K)

Response time

< 2.5 s

Temperature measurement
Measurement accuracy (temperature)	± 1 °C
Resolution (Temperature)	< 0.1 °C
Response time (temperature)	< 5 s

Operating mode

Relative speed (%), Volume flow and total volume, Relative teach (%)

Electronics

Supply voltage	9 V DC … 30 V DC
Power consumption	< 2 W at 24 V DC (without load on the outputs) < 8 W At maximum load
Initialization time	≤ 5 s ≤ 10 s (IO-Link)
Protection class	III
Connection type	M12 round connector x 1, 4-pin
Output signal	2 push-pull digital outputs (Q2 configurable for IO-Link; Q2 configurable as pulse output / digital input) for flow and temperature
Output current	< 100 mA
Inductive load	1 H
Capacitive load	100 nF (2.5 nF, IO-Link mode)
EMC	EN 61326-1, EN 61326-2-3
Digital input limit	HIGH voltage dependent on Uv LOW voltage < 4.0 V
MTTF	> 200 years

Mechanics

Process connection	Without process connection (adapter needed for installation)
Wetted parts	Stainless steel 1.4404 (Ra ≤ 0,8 µm)
Housing material	VISTAL^® (PA66+PA6I GF50)
Enclosure rating	IP67
Weight	74 g
Probe diameter	8 mm
Probe length	60 mm
Minimum immersion length	12 mm
Distance to pipe wall	10 mm

Ambient data

Ambient operating temperature	–40 °C … +70 °C
Ambient temperature, storage	–40 °C … +80 °C

Classifications

ECLASS 5.0	27273101
ECLASS 5.1.4	27273101
ECLASS 6.0	27273101
ECLASS 6.2	27273101
ECLASS 7.0	27273101
ECLASS 8.0	27273101
ECLASS 8.1	27273101
ECLASS 9.0	27273101
ECLASS 10.0	27273101
ECLASS 11.0	27273101
ECLASS 12.0	27274803
ETIM 5.0	EC002580
ETIM 6.0	EC002580
ETIM 7.0	EC002580
ETIM 8.0	EC002580
UNSPSC 16.0901	41112501

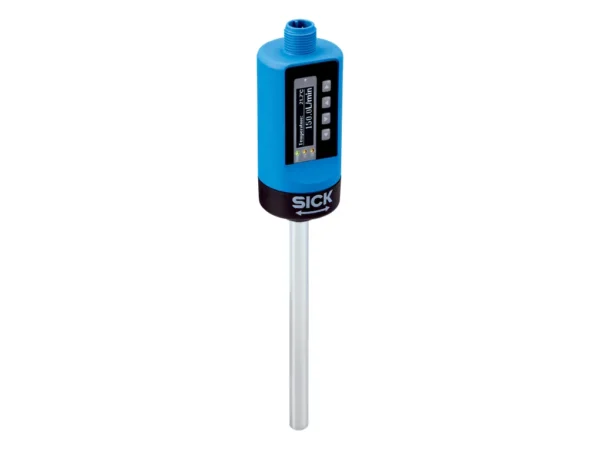

FTS-I060F14A – 1091146
