Name: SICK 1091149 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 1091149
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Measurement principle

Calorimetric measurement process

Medium

Water and oil-based liquids

Pipe diameters

≥ 25 mm

Process temperature

–40 °C … +150 °C

Process pressure

–1 bar … 100 bar, 40 bar (with SICK T-connector DN15, DN25), 25 bar (with SICK T-connector DN40), 20 bar (with SICK T-connector DN50)

Communication interface

IO-Link, IO-Link V1.1, COM3 (230.4 kbit/s)

Temperature measurement

✔

Performance

Inlet zone

5 x DN

Output zone

3 x DN

Measurement accuracy
	± 7 % From measured value + 2% of measuring range end value

Repeatability

< 1 cm/s

Resolution

0.01 m/s Speed; 0.1 L/min volume; 0.1% relative (via IO-Link)

Temperature drift

< 0.5 cm / (s*K)

Response time

< 2.5 s

Temperature measurement
Measurement accuracy (temperature)	± 1 °C
Resolution (Temperature)	< 0.1 °C
Response time (temperature)	< 5 s

Operating mode

Relative speed (%), Volume flow and total volume, Relative teach (%)

Electronics

Supply voltage	9 V DC … 30 V DC
Power consumption	< 2 W at 24 V DC (without load on the outputs) < 8 W At maximum load
Initialization time	≤ 5 s ≤ 10 s (IO-Link)
Protection class	III
Connection type	M12 round connector x 1, 4-pin
Output signal	2 push-pull digital outputs (Q2 configurable for IO-Link; Q2 configurable as pulse output / digital input) for flow and temperature
Output current	< 100 mA
Inductive load	1 H
Capacitive load	100 nF (2.5 nF, IO-Link mode)
EMC	EN 61326-1, EN 61326-2-3
Digital input limit	HIGH voltage dependent on Uv LOW voltage < 4.0 V
MTTF	> 200 years

Mechanics

Process connection	Without process connection (adapter needed for installation)
Wetted parts	Stainless steel 1.4404 (Ra ≤ 0,8 µm)
Housing material	Stainless steel 1.4404 / 316L
Enclosure rating	IP67 / IP69
Weight	197 g
Probe diameter	8 mm
Probe length	60 mm
Minimum immersion length	12 mm
Distance to pipe wall	10 mm

Ambient data

Ambient operating temperature	–40 °C … +70 °C
Ambient temperature, storage	–40 °C … +80 °C

Classifications

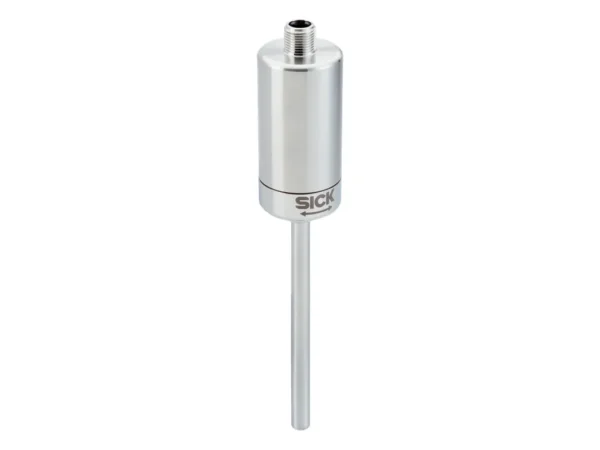

FTS-H060F04A – 1091149
