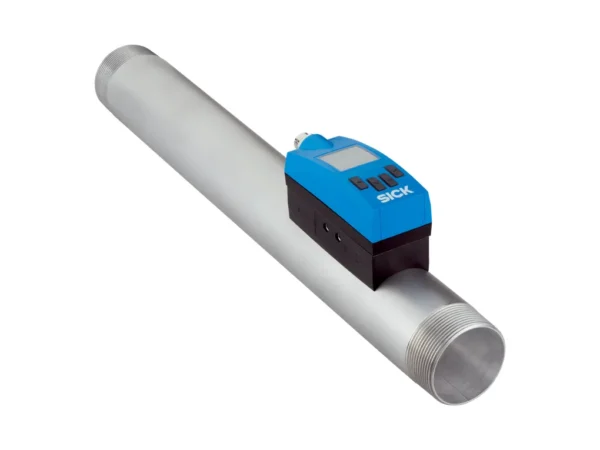

Home Akış (Flow) Sensörleri FTMG-ISR50SXX – 1120115 🔍 FTMG-ISR50SXX – 1120115 ✉ Teklif Al Teklif Al Stok kodu: 1120115 Kategoriler: Akış (Flow) Sensörleri Marka: SICK Açıklama Tecnichal data Features Measurement principle Calorimetric (flow, temperature), piezoresistive (pressure) Medium Compressed air (air quality ISO 8573-1:2010 [3:4:4]), Argon, nitrogen, carbon dioxide Measured values Mass, Mass flow rate, volume, Volumetric flow rate, Energy, Flow velocity, pressure, Temperature Nominal width measuring tube DN 50 Measuring range Standard 58.9 l/min … 11,780.9 l/min 0.5 m/s … 100 m/s Enhanced 11,780.9 l/min … 17,671.5 l/min 100 m/s … 150 m/s Process temperature –20 °C … +60 °C Process pressure 0 bar … 16 bar Communication interface IO-Link, IO-Link V1.1 Temperature measurement ✔ Pressure measurement ✔ Indication ✔128 x 128 pixels, adjustable rotary OLED display (90° steps) and 4 pushbuttons Performance Measurement accuracy Standard ± 6 % of the measured value + 0.6% of the measuring range limit value (extended measuring range) Enhanced ± 8 % of the measured value + 0.8% of the measuring range limit value (extended measuring range) Repeatability ± 1.5 % From measured value Response time < 0.3 s Temperature measurement Measurement accuracy (temperature) ± 2 °C Repeatability (temperature) ± 0.5 °C Pressure measurement Measurement accuracy (pressure) ± 1.5 % of measuring range end value Non-linearity (pressure) ± 0.5 % from measuring range Repeatability (pressure) ± 0.2 % from measuring range Electronics Supply voltage 17 V DC … 30 V DC Power consumption < 4.5 W at 24 V DC without output load Initialization time ≤ 10 s Protection class III Connection type M12 x 1 round connector, 5-pin, A-coded Output signal 1x analog output 4 mA … 20 mA + 1x digital/analog output (PNP, NPN, push-pull, 4 mA … 20 mA / switchable), frequency pulse output + 1x digital output (PNP, NPN, push-pull, switchable), IO-Link V1.1 (COM3 / 230K4 baud) Output load 4 mA … 20 mA, max. 500 ohm Lower signal level 3.5 mA … 3.8 mA Upper signal level 20.5 mA … 21.5 mA Inaccuracy QA Pin2: < 0.5% full-range (20 mA) Q2 Pin5: < 0.5% full-range (20 mA) Digital output ≤ 100 mA Inductive load ≤ 1 H Capacitive load ≤ 100 nF (2.5 nF, IO-Link mode) MTTF > 100 years Mechanics Process connection R 2 male thread Wetted parts Probe: stainless steel 1.4305, PA6; seal: FKM (Viton®); measurement channel: stainless steel 1.4301 Housing material PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 Enclosure rating IP65/IP67 (according to IEC 60529) Weight Approx. 2.8 kg Ambient data Ambient operating temperature –20 °C … +60 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27200403 ECLASS 5.1.4 27200403 ECLASS 6.0 27200403 ECLASS 6.2 27200403 ECLASS 7.0 27200403 ECLASS 8.0 27200403 ECLASS 8.1 27200403 ECLASS 9.0 27200403 ECLASS 10.0 27200403 ECLASS 11.0 27200403 ECLASS 12.0 27200403 ETIM 5.0 EC002580 ETIM 6.0 EC002580 ETIM 7.0 EC002580 ETIM 8.0 EC002580 UNSPSC 16.0901 41112501 İlgili ürünler FUM-H015F1CB80000 – 1082023SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FTMG-ESD15AXX – 1100214SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FUM-H015F1MB50000 – 1082020SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FUM-H015F1NC50000 – 1082022SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git
Tecnichal data Features Measurement principle Calorimetric (flow, temperature), piezoresistive (pressure) Medium Compressed air (air quality ISO 8573-1:2010 [3:4:4]), Argon, nitrogen, carbon dioxide Measured values Mass, Mass flow rate, volume, Volumetric flow rate, Energy, Flow velocity, pressure, Temperature Nominal width measuring tube DN 50 Measuring range Standard 58.9 l/min … 11,780.9 l/min 0.5 m/s … 100 m/s Enhanced 11,780.9 l/min … 17,671.5 l/min 100 m/s … 150 m/s Process temperature –20 °C … +60 °C Process pressure 0 bar … 16 bar Communication interface IO-Link, IO-Link V1.1 Temperature measurement ✔ Pressure measurement ✔ Indication ✔128 x 128 pixels, adjustable rotary OLED display (90° steps) and 4 pushbuttons Performance Measurement accuracy Standard ± 6 % of the measured value + 0.6% of the measuring range limit value (extended measuring range) Enhanced ± 8 % of the measured value + 0.8% of the measuring range limit value (extended measuring range) Repeatability ± 1.5 % From measured value Response time < 0.3 s Temperature measurement Measurement accuracy (temperature) ± 2 °C Repeatability (temperature) ± 0.5 °C Pressure measurement Measurement accuracy (pressure) ± 1.5 % of measuring range end value Non-linearity (pressure) ± 0.5 % from measuring range Repeatability (pressure) ± 0.2 % from measuring range Electronics Supply voltage 17 V DC … 30 V DC Power consumption < 4.5 W at 24 V DC without output load Initialization time ≤ 10 s Protection class III Connection type M12 x 1 round connector, 5-pin, A-coded Output signal 1x analog output 4 mA … 20 mA + 1x digital/analog output (PNP, NPN, push-pull, 4 mA … 20 mA / switchable), frequency pulse output + 1x digital output (PNP, NPN, push-pull, switchable), IO-Link V1.1 (COM3 / 230K4 baud) Output load 4 mA … 20 mA, max. 500 ohm Lower signal level 3.5 mA … 3.8 mA Upper signal level 20.5 mA … 21.5 mA Inaccuracy QA Pin2: < 0.5% full-range (20 mA) Q2 Pin5: < 0.5% full-range (20 mA) Digital output ≤ 100 mA Inductive load ≤ 1 H Capacitive load ≤ 100 nF (2.5 nF, IO-Link mode) MTTF > 100 years Mechanics Process connection R 2 male thread Wetted parts Probe: stainless steel 1.4305, PA6; seal: FKM (Viton®); measurement channel: stainless steel 1.4301 Housing material PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 Enclosure rating IP65/IP67 (according to IEC 60529) Weight Approx. 2.8 kg Ambient data Ambient operating temperature –20 °C … +60 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27200403 ECLASS 5.1.4 27200403 ECLASS 6.0 27200403 ECLASS 6.2 27200403 ECLASS 7.0 27200403 ECLASS 8.0 27200403 ECLASS 8.1 27200403 ECLASS 9.0 27200403 ECLASS 10.0 27200403 ECLASS 11.0 27200403 ECLASS 12.0 27200403 ETIM 5.0 EC002580 ETIM 6.0 EC002580 ETIM 7.0 EC002580 ETIM 8.0 EC002580 UNSPSC 16.0901 41112501
