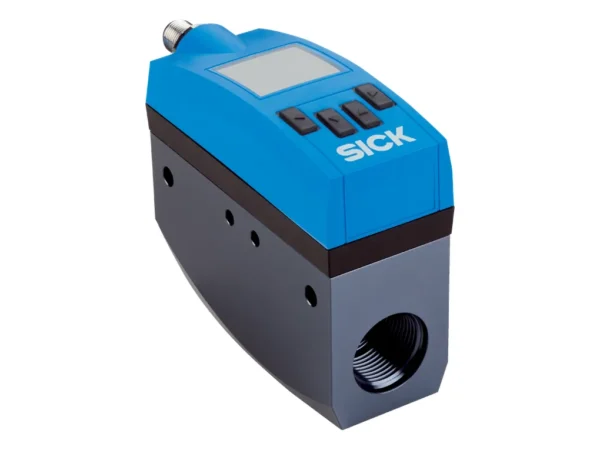

Home Akış (Flow) Sensörleri FTMG-ESD25AXX – 1100216 🔍 FTMG-ESD25AXX – 1100216 ✉ Teklif Al Teklif Al Stok kodu: 1100216 Kategoriler: Akış (Flow) Sensörleri Marka: SICK Açıklama Tecnichal data Features Measurement principle Calorimetric (flow, temperature), piezoresistive (pressure) Medium Compressed air (air quality ISO 8573-1:2010 [3:4:4]), Argon, nitrogen, carbon dioxide Measured values Mass, Mass flow rate, volume, Volumetric flow rate, Energy, Flow velocity, pressure, Temperature Nominal width measuring tube DN 25 Measuring range Standard 14.7 l/min … 2,945.2 l/min 0.5 m/s … 100 m/s Enhanced 2,945.2 l/min … 4,417.9 l/min 100 m/s … 150 m/s Process temperature –20 °C … +60 °C Process pressure 0 bar … 16 bar Communication interface MQTT OPC UA Temperature measurement ✔ Pressure measurement ✔ Indication ✔128 x 128 pixels, adjustable rotary OLED display (90° steps) and 4 pushbuttons Performance Measurement accuracy Standard ± 3 % of the measured value + 0.3% of the measuring range limit value (extended measuring range) Enhanced ± 8 % of the measured value + 1% of the measuring range limit value (extended measuring range) Repeatability ± 1.5 % From measured value Response time < 0.3 s Temperature measurement Measurement accuracy (temperature) ± 2 °C Repeatability (temperature) ± 0.5 °C Pressure measurement Measurement accuracy (pressure) ± 1.5 % of measuring range end value Non-linearity (pressure) ± 0.5 % from measuring range Repeatability (pressure) ± 0.2 % from measuring range Electronics Power consumption < 5 W Initialization time ≤ 10 s Protection class III Connection type 1 x M12 round connector, 8-pin, X-coded Output signal OPC UA, MQTT, integrated web server MTTF > 100 years Standard communication IEEE802.3 Clause 25 (100BaseTx); 100 Mbit/sec Standard supply Power over Ethernet according to IEEE802.3af Performance class Class 0; acc. IEEE802.3af Powered Device < 13 W Power supply mode Mode A and Mode B Mechanics Process connection G 1 (according to DIN ISO 228-1) Wetted parts Probe: stainless steel 1.4305, PA6; seal: FKM (Viton®); measurement channel: aluminum Housing material PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 Enclosure rating IP65/IP67 (according to IEC 60529) Weight Approx. 685 g Ambient data Ambient operating temperature –20 °C … +60 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27200403 ECLASS 5.1.4 27200403 ECLASS 6.0 27200403 ECLASS 6.2 27200403 ECLASS 7.0 27200403 ECLASS 8.0 27200403 ECLASS 8.1 27200403 ECLASS 9.0 27200403 ECLASS 10.0 27200403 ECLASS 11.0 27200403 ECLASS 12.0 27200403 ETIM 5.0 EC002580 ETIM 6.0 EC002580 ETIM 7.0 EC002580 ETIM 8.0 EC002580 UNSPSC 16.0901 41112501 İlgili ürünler FTMG-ISD25AXX – 1100213SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FUM-H025F1MD80000 – 1082034SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FUM-H025F1GE80000 – 1082033SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FTMG-ISD15AXX – 1100211SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git
Tecnichal data Features Measurement principle Calorimetric (flow, temperature), piezoresistive (pressure) Medium Compressed air (air quality ISO 8573-1:2010 [3:4:4]), Argon, nitrogen, carbon dioxide Measured values Mass, Mass flow rate, volume, Volumetric flow rate, Energy, Flow velocity, pressure, Temperature Nominal width measuring tube DN 25 Measuring range Standard 14.7 l/min … 2,945.2 l/min 0.5 m/s … 100 m/s Enhanced 2,945.2 l/min … 4,417.9 l/min 100 m/s … 150 m/s Process temperature –20 °C … +60 °C Process pressure 0 bar … 16 bar Communication interface MQTT OPC UA Temperature measurement ✔ Pressure measurement ✔ Indication ✔128 x 128 pixels, adjustable rotary OLED display (90° steps) and 4 pushbuttons Performance Measurement accuracy Standard ± 3 % of the measured value + 0.3% of the measuring range limit value (extended measuring range) Enhanced ± 8 % of the measured value + 1% of the measuring range limit value (extended measuring range) Repeatability ± 1.5 % From measured value Response time < 0.3 s Temperature measurement Measurement accuracy (temperature) ± 2 °C Repeatability (temperature) ± 0.5 °C Pressure measurement Measurement accuracy (pressure) ± 1.5 % of measuring range end value Non-linearity (pressure) ± 0.5 % from measuring range Repeatability (pressure) ± 0.2 % from measuring range Electronics Power consumption < 5 W Initialization time ≤ 10 s Protection class III Connection type 1 x M12 round connector, 8-pin, X-coded Output signal OPC UA, MQTT, integrated web server MTTF > 100 years Standard communication IEEE802.3 Clause 25 (100BaseTx); 100 Mbit/sec Standard supply Power over Ethernet according to IEEE802.3af Performance class Class 0; acc. IEEE802.3af Powered Device < 13 W Power supply mode Mode A and Mode B Mechanics Process connection G 1 (according to DIN ISO 228-1) Wetted parts Probe: stainless steel 1.4305, PA6; seal: FKM (Viton®); measurement channel: aluminum Housing material PC+ABS, PA66+PA6I GF50, PC, TPE, stainless steel 1.4301 Enclosure rating IP65/IP67 (according to IEC 60529) Weight Approx. 685 g Ambient data Ambient operating temperature –20 °C … +60 °C Ambient temperature, storage –40 °C … +85 °C Classifications ECLASS 5.0 27200403 ECLASS 5.1.4 27200403 ECLASS 6.0 27200403 ECLASS 6.2 27200403 ECLASS 7.0 27200403 ECLASS 8.0 27200403 ECLASS 8.1 27200403 ECLASS 9.0 27200403 ECLASS 10.0 27200403 ECLASS 11.0 27200403 ECLASS 12.0 27200403 ETIM 5.0 EC002580 ETIM 6.0 EC002580 ETIM 7.0 EC002580 ETIM 8.0 EC002580 UNSPSC 16.0901 41112501
