Name: SICK 6049137 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 6049137
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Device version	Close
Sensor principle	Sender/receiver
Minimum detectable object (MDO)	2 mm, dynamic: 4 mm 6 mm, static: 6 mm
Beam separation	4 mm
Detection height	250 mm
Output function	Light/dark switching adjustable by means of rotary switch

Mechanics/electronics

Wave length	880 nm
Supply voltage V_s	DC 18 V … 30 V
Ripple	< 10 %
Output current I_max.	≤ 100 mA
Off delay	0 s … 5 s
Initialization time	0.3 s
Switching output	PNP NPN
Dimensions (W x H x D)	312 mm x 230 mm x 25 mm
Connection type	Male connector M12, 4-pin
Housing material	Aluminum, painted
Indication	LED
Enclosure rating	IP65
Circuit protection	U_V connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression
Protection class	III
Weight	0.86 kg
Switching frequency	5,000 Hz

Performance

Detection area (W x H)	250 mm x 200 mm
Response time	< 0.1 ms

Ambient data

Shock resistance	EN 60068-2-27
Vibration resistance	EN 60068-2-6
EMC	EN 60947-5-2
Ambient light immunity	Sunlight: 10,000 lx
Ambient operating temperature	0 °C … +60 °C
Ambient temperature, storage	–20 °C … +80 °C

Classifications

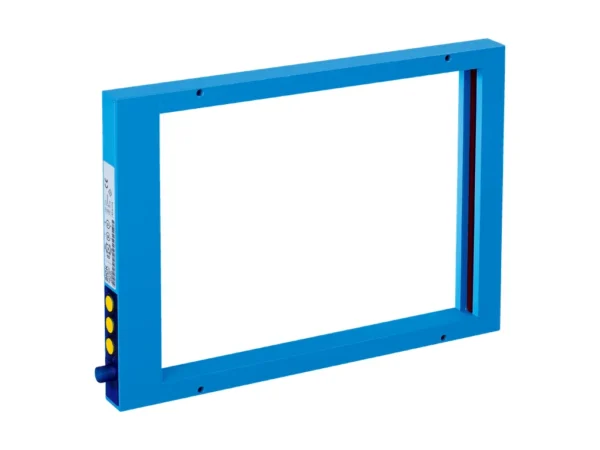

FLG4-20025011 – 6049137
