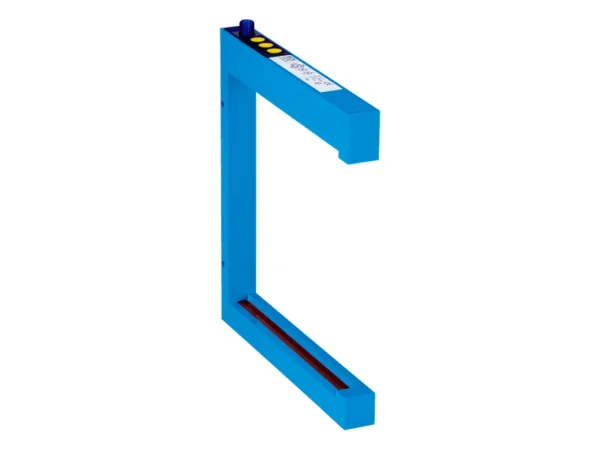

Home Işık Perdeleri FLG4-20018021 – 6050068 🔍 FLG4-20018021 – 6050068 ✉ Teklif Al Teklif Al Stok kodu: 6050068 Kategoriler: Işık Perdeleri Marka: SICK Açıklama Tecnichal data Features Device version Open Sensor principle Sender/receiver Minimum detectable object (MDO) 2 mm, dynamic: 4 mm 6 mm, static: 6 mm Beam separation 4 mm Detection height 180 mm Output function Light/dark switching adjustable by means of rotary switch Mechanics/electronics Wave length 880 nm Supply voltage Vs DC 18 V … 30 V Ripple < 10 % Output current Imax. ≤ 100 mA Off delay 0 s … 5 s Initialization time 0.3 s Switching output PNP NPN Dimensions (W x H x D) 242 mm x 230 mm x 25 mm Connection type Male connector M12, 4-pin Housing material Aluminum, painted Indication LED Enclosure rating IP65 Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Protection class III Weight 1 kg Switching frequency 5,000 Hz Performance Detection area (W x H) 180 mm x 200 mm Response time < 0.1 ms Ambient data Shock resistance EN 60068-2-27 Vibration resistance EN 60068-2-6 EMC EN 60947-5-2 Ambient light immunity Sunlight: 10,000 lx Ambient operating temperature 0 °C … +60 °C Ambient temperature, storage –20 °C … +80 °C Classifications eCl@ss 5.0 27270910 eCl@ss 5.1.4 27270910 eCl@ss 6.0 27270910 eCl@ss 6.2 27270910 eCl@ss 7.0 27270910 eCl@ss 8.0 27270910 eCl@ss 8.1 27270910 eCl@ss 9.0 27270910 eCl@ss 10.0 27270910 eCl@ss 11.0 27270910 eCl@ss 12.0 27270910 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 39121528 İlgili ürünler Safety Light Curtain, GuardShield, Type 4, Cascade, Pair, Resolution 14mm, Protected Height 1280mm, with Laser – 440L-C4JL1280YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Transceiver, LineE 1350 – 14mm, Product line E, Type4/Cat.4, 14mm Finger resolution, Protective height: 1350 mm, Laser integrated, Enclosure rating IP65, GuardShield – 450L-E4FL1350YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git 450L-E Enhanced Safety Light Curtain, 30mm (1.18 in.) Resolution, 1800 mm (70.92 in.) Protected Height – 450L-E4HL1800YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Mounting brackets, Safety Light Curtain, two clamps for one stick, side and backside mounting – 450L-AM-SMALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git
Tecnichal data Features Device version Open Sensor principle Sender/receiver Minimum detectable object (MDO) 2 mm, dynamic: 4 mm 6 mm, static: 6 mm Beam separation 4 mm Detection height 180 mm Output function Light/dark switching adjustable by means of rotary switch Mechanics/electronics Wave length 880 nm Supply voltage Vs DC 18 V … 30 V Ripple < 10 % Output current Imax. ≤ 100 mA Off delay 0 s … 5 s Initialization time 0.3 s Switching output PNP NPN Dimensions (W x H x D) 242 mm x 230 mm x 25 mm Connection type Male connector M12, 4-pin Housing material Aluminum, painted Indication LED Enclosure rating IP65 Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Protection class III Weight 1 kg Switching frequency 5,000 Hz Performance Detection area (W x H) 180 mm x 200 mm Response time < 0.1 ms Ambient data Shock resistance EN 60068-2-27 Vibration resistance EN 60068-2-6 EMC EN 60947-5-2 Ambient light immunity Sunlight: 10,000 lx Ambient operating temperature 0 °C … +60 °C Ambient temperature, storage –20 °C … +80 °C Classifications eCl@ss 5.0 27270910 eCl@ss 5.1.4 27270910 eCl@ss 6.0 27270910 eCl@ss 6.2 27270910 eCl@ss 7.0 27270910 eCl@ss 8.0 27270910 eCl@ss 8.1 27270910 eCl@ss 9.0 27270910 eCl@ss 10.0 27270910 eCl@ss 11.0 27270910 eCl@ss 12.0 27270910 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 39121528
