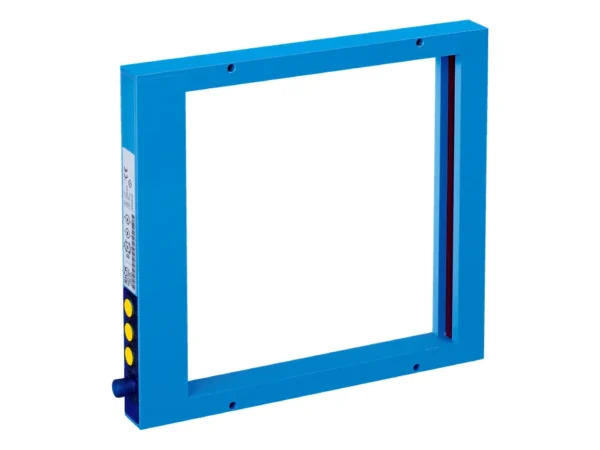

Home Işık Perdeleri FLG4-20018011 – 6049136 🔍 FLG4-20018011 – 6049136 ✉ Teklif Al Teklif Al Stok kodu: 6049136 Kategoriler: Işık Perdeleri Marka: SICK Açıklama Tecnichal data Features Device version Close Sensor principle Sender/receiver Minimum detectable object (MDO) 2 mm, dynamic: 4 mm 6 mm, static: 6 mm Beam separation 4 mm Detection height 180 mm Output function Light/dark switching adjustable by means of rotary switch Mechanics/electronics Wave length 880 nm Supply voltage Vs DC 18 V … 30 V Ripple < 10 % Output current Imax. ≤ 100 mA Off delay 0 s … 5 s Initialization time 0.3 s Switching output PNP NPN Dimensions (W x H x D) 242 mm x 230 mm x 25 mm Connection type Male connector M12, 4-pin Housing material Aluminum, painted Indication LED Enclosure rating IP65 Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Protection class III Weight 1 kg Switching frequency 5,000 Hz Performance Detection area (W x H) 180 mm x 200 mm Response time < 0.1 ms Ambient data Shock resistance EN 60068-2-27 Vibration resistance EN 60068-2-6 EMC EN 60947-5-2 Ambient light immunity Sunlight: 10,000 lx Ambient operating temperature 0 °C … +60 °C Ambient temperature, storage –20 °C … +80 °C Classifications eCl@ss 5.0 27270910 eCl@ss 5.1.4 27270910 eCl@ss 6.0 27270910 eCl@ss 6.2 27270910 eCl@ss 7.0 27270910 eCl@ss 8.0 27270910 eCl@ss 8.1 27270910 eCl@ss 9.0 27270910 eCl@ss 10.0 27270910 eCl@ss 11.0 27270910 eCl@ss 12.0 27270910 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 39121528 İlgili ürünler Transceiver, LineE 1050 – 30mm, Product line E, Type4/Cat.4, 30mm Hand resolution, Protective height: 1050 mm, Laser integrated, Enclosure rating IP65, GuardShield – 450L-E4HL1050YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Transceiver, LineE 1350 – 30mm, Product line E, Type4/Cat.4, 30mm Hand resolution, Protective height: 1350 mm, Laser integrated, Enclosure rating IP65, GuardShield – 450L-E4HL1350YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git GuardShield LineE 300 – 14mm Transceiver – 450L-E4FL0300YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git Transceiver, LineE 600 – 14mm, Product line E, Type4/Cat.4, 14mm Finger resolution, Protective height: 600 mm, Laser integrated, Enclosure rating IP65, GuardShield – 450L-E4FL0600YDALLEN BRADLEYIşık Perdeleri ₺18.000,00 Ürüne Git
Tecnichal data Features Device version Close Sensor principle Sender/receiver Minimum detectable object (MDO) 2 mm, dynamic: 4 mm 6 mm, static: 6 mm Beam separation 4 mm Detection height 180 mm Output function Light/dark switching adjustable by means of rotary switch Mechanics/electronics Wave length 880 nm Supply voltage Vs DC 18 V … 30 V Ripple < 10 % Output current Imax. ≤ 100 mA Off delay 0 s … 5 s Initialization time 0.3 s Switching output PNP NPN Dimensions (W x H x D) 242 mm x 230 mm x 25 mm Connection type Male connector M12, 4-pin Housing material Aluminum, painted Indication LED Enclosure rating IP65 Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Protection class III Weight 1 kg Switching frequency 5,000 Hz Performance Detection area (W x H) 180 mm x 200 mm Response time < 0.1 ms Ambient data Shock resistance EN 60068-2-27 Vibration resistance EN 60068-2-6 EMC EN 60947-5-2 Ambient light immunity Sunlight: 10,000 lx Ambient operating temperature 0 °C … +60 °C Ambient temperature, storage –20 °C … +80 °C Classifications eCl@ss 5.0 27270910 eCl@ss 5.1.4 27270910 eCl@ss 6.0 27270910 eCl@ss 6.2 27270910 eCl@ss 7.0 27270910 eCl@ss 8.0 27270910 eCl@ss 8.1 27270910 eCl@ss 9.0 27270910 eCl@ss 10.0 27270910 eCl@ss 11.0 27270910 eCl@ss 12.0 27270910 ETIM 5.0 EC002549 ETIM 6.0 EC002549 ETIM 7.0 EC002549 ETIM 8.0 EC002549 UNSPSC 16.0901 39121528
