Name: SICK 1097723 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 1097723
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Application

Explosive areas

Ex-approvals

ATEX for gas: II 2 G Ex db IIB T6

ATEX for dust: II 2 D Ex tb IIIC T56°C Db IP6X

NFPA 70/NEC 500 Class I, Div. 1, Groups C and D

NFPA 70/NEC 500 Class II, Div. 1, Groups E, F and G

NFPA 70/NEC 500 Class III, Div. 1

Functional principle

Sender/receiver

System part

Sender

Scanning range

14.2 m

Dimension of the light path
Typical	0.5 m … 14.2 m

Number of beams

Beam separation

300 mm

Response time

20 ms

Synchronization

Optical synchronisation

Items supplied

Sender

Safety-related parameters

Type	Type 4 (IEC 61496-1)
Safety integrity level	SIL 3 (IEC 61508)
Category	Category 4 (ISO 13849-1)
Performance level	PL e (ISO 13849-1)
PFH_D (mean probability of a dangerous failure per hour)	3 x 10^-9
T_M (mission time)	20 years (ISO 13849-1)
Safe state in the event of a fault	At least one OSSD is in the OFF state.

Functions

Protective operation

✔

Interfaces

System connection	Connecting cable, 5-wire
Length of cable	30 m
Cable diameter	5 mm
Conductor cross section	0.34 mm²

Display elements

LEDs

Electrical data

Protection class	III (IEC 61140)
Supply voltage V_S	24 V DC (19.2 V DC … 28.8 V DC)
Residual ripple	≤ 10 %
Power consumption	≤ 50 mA
Power consumption	≤ 1.44 W (DC)

Mechanical data

Dimensions

See dimensional drawing

Housing cross-section

161.8 mm x 142.1 mm

Material
Housing	Aluminum extruded profile

Weight

45.88 kg (± 50 g)

Ambient data

Enclosure rating	IP65 (IEC 60529) IP66 (IEC 60529)
Ambient operating temperature	–20 °C … +55 °C
Storage temperature	–30 °C … +70 °C
Air humidity	15 % … 95 %, Non-condensing
Vibration resistance	5 g, 10 Hz … 55 Hz (IEC 60068-2-6)
Shock resistance	10 g, 16 ms (IEC 60068-2-27)

Other information

Type of light

Near-infrared (NIR), invisible

Classifications

eCl@ss 5.0	27272703
eCl@ss 5.1.4	27272703
eCl@ss 6.0	27272703
eCl@ss 6.2	27272703
eCl@ss 7.0	27272703
eCl@ss 8.0	27272703
eCl@ss 8.1	27272703
eCl@ss 9.0	27272703
eCl@ss 10.0	27272703
eCl@ss 11.0	27272703
eCl@ss 12.0	27272703
ETIM 5.0	EC001832
ETIM 6.0	EC001832
ETIM 7.0	EC001832
ETIM 8.0	EC001832
UNSPSC 16.0901	46171620

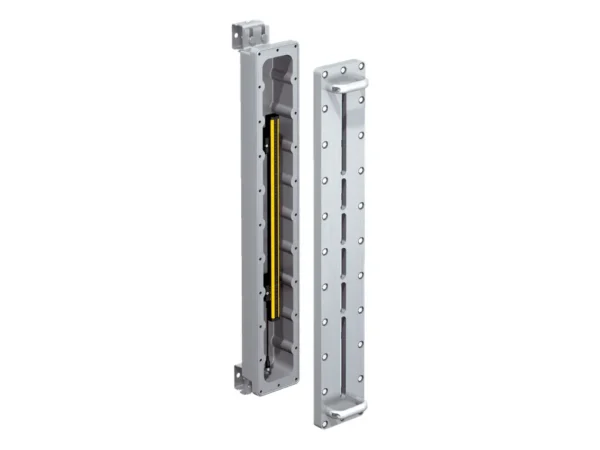

EXS-12D0430A020 – 1097723
