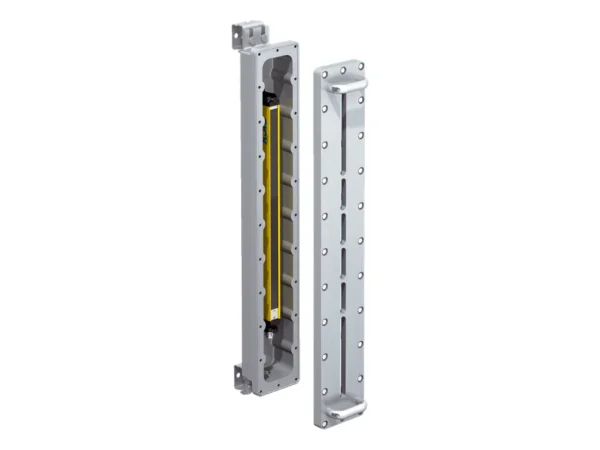

Name: SICK 1097731 | Işık Perdesi | Royal Endüstriyel
Brand: SICK
SKU: 1097731
Price: 18000.00 TRY
Availability: InStock

Tecnichal data

Features

Application	Explosive areas
Ex-approvals	ATEX for gas: II 2 G Ex db IIB T6 ATEX for dust: II 2 D Ex tb IIIC T56°C Db IP6X NFPA 70/NEC 500 Class I, Div. 1, Groups C and D NFPA 70/NEC 500 Class II, Div. 1, Groups E, F and G NFPA 70/NEC 500 Class III, Div. 1
System part	Receiver
Resolution	30 mm
Protective field height	1,200 mm
Scanning range	17.6 m
Synchronization	Optical synchronisation

Safety-related parameters

Type	Type 4 (IEC 61496-1)
Safety integrity level	SIL 3 (IEC 61508)
Category	Category 4 (EN ISO 13849)
Performance level	PL e (EN ISO 13849)
PFH_D (mean probability of a dangerous failure per hour)	15 x 10^-9 (EN ISO 13849)
T_M (mission time)	20 years (EN ISO 13849)
Safe state in the event of a fault	At least one OSSD is in the OFF state.

Functions

	Functions	Delivery status
Protective operation	✔
Restart interlock	✔	External
External device monitoring (EDM)	✔	Deactivated
Beam coding	✔	Uncoded
Configurable scanning range	✔
Reduced resolution	✔	Deactivated
Fixed blanking	✔	Deactivated
Floating blanking	✔	Deactivated
Dynamic blanking for object pattern recognition	✔
Self-teaching dynamic blanking for goods detection	✔
Self-teaching dynamic blanking for pallet detection	✔
Multiple sampling	✔	2x evaluation
Direction monitoring	✔
Virtual photoelectric switches	✔
Sensor gap monitoring	✔
Sequence monitoring	✔
Object entry monitoring	✔
Detection of geometrically even objects	✔
Safe SICK device communication via EFI	✔

Functions in combination with UE402

Bypass	✔
Operating mode switching	✔

Interfaces

System connection	Connecting cable (30 m) with flying leads, 12-wire
Cable diameter	10 mm
Conductor cross section	0.75 mm²

Configuration connection

Female connector M8, 4-pin

Configuration method

PC with CDS (Configuration and Diagnostic Software)

Display elements

7-segment display

Electrical data

Protection class

III (IEC 61140)

Supply voltage V_S

24 V DC (19.2 V … 28.8 V)

Residual ripple

≤ 10 %

Output signal switching devices (OSSDs)
Type of output	2 PNP semiconductors, short-circuit protected, cross-circuit monitored
ON state, switching voltage HIGH	24 V DC (V_S – 2.25 V DC … V_S)
OFF state, switching voltage LOW	≤ 3.5 V DC
Current-carrying capacity per OSSD	≤ 500 mA

Application diagnostic output (ADO)
Type of output	PNP semiconductor, short-circuit protected
Output voltage HIGH (active)	24 V DC (V_S – 4.2 V DC … V_S)
Output voltage LOW (deactivated)	High resistance
Output current HIGH (active)	≤ 100 mA

Mechanical data

Ambient data

Enclosure rating	IP65 (EN 60529) IP66 (EN 60529)
Ambient operating temperature	0 °C … +55 °C
Storage temperature	–25 °C … +70 °C
Air humidity	15 % … 95 %, Non-condensing
Vibration resistance	5 g, 10 Hz … 55 Hz (EN 60068-2-6)
Shock resistance	10 g, 16 ms (EN 60068-2-27)

Other information

Wave length

850 nm

Classifications

EXE-12C6602A020 – 1097731
