Technical Specs
Specifications
Sub Brand:ArmorStratix 5700
Environmental Conditions:IP67
Stratix Family Selection Assistance – Optional
Type:Managed Switch
# of Copper Ports Required:9 to 20
# of Fiber Ports Required:None
Do you need routing capability..?:No
Do you Need PoE(Power Over Ethernet):Yes
Do you need integrated DLR?:Yes
Data
Stratix Ethernet Family:ArmorStratix 5700
Environment:IP67

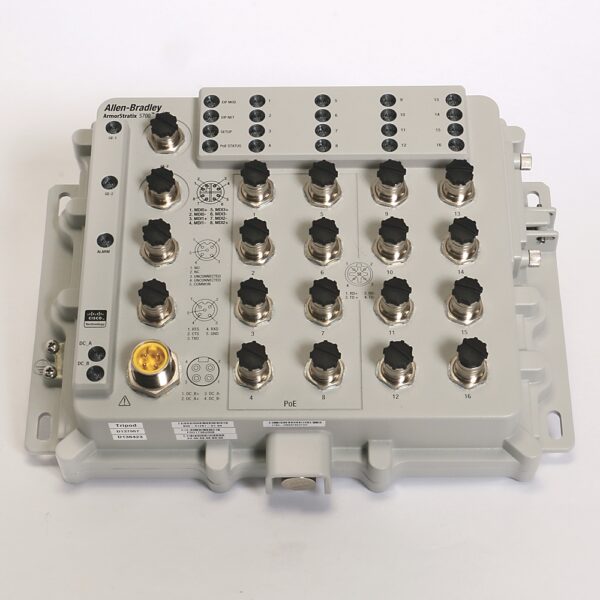

Ethernet Family:ArmorStratix 5700, 8 copper 10/100 ports, 8 PoE 10/100 ports, 2 copper 10/100/1000 ports, Full FW, 1588 PTP, DLR
Accessories
Network Media:Shielded tear PUR,4 twisted pairs, 26 AWG ,Industrial Cat 6, UL Listed ,weld splatter,sun light and oil resistant Cable,1 m
Factory Talk Manager:FactoryTalk Network Manager License (download)
Additional Details
Mounting:Din Rail
Operating Temperature:-40..60 °C (-40…140 °F)
