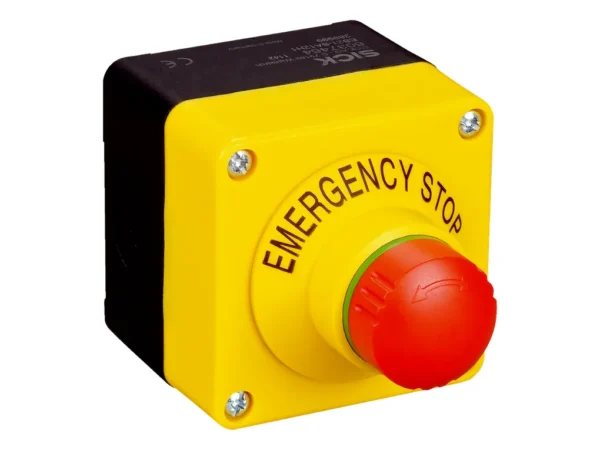

Home Emergency Stop Ekipmanları ES21-SA14F1 E-STOP-UNIT – 6053943 🔍 ES21-SA14F1 E-STOP-UNIT – 6053943 ✉ Teklif Al Teklif Al Stok kodu: 6053943 Kategoriler: Emergency Stop Ekipmanları Marka: SICK Açıklama Tecnichal data Features Number of positive action N/C contacts 2 Number of N/O contacts 1 Actuation directions 1 Obstruction protection ✔ Release type Rotary release Labeling “EMERGENCY STOP” ✔ Safety-related parameters B10d parameter 2.5 x 105 switching cycles Functions Safe series connection None, only individual wiring (with diagnostics) Interfaces Connection type Cable gland, 2 x M20 Conductor cross section ≤ 2.5 mm² Contact Screw connection Electrical data – Operating data Protection class II (EN 50178) Switching principle Slow action switching element Number of positive action N/C contacts 2 Number of N/O contacts 1 Usage category AC-15/DC-13 (EN 60947-5-1) Rated operating current (voltage) 3 A (250 V AC) 2 A (24 V DC) Rated insulation voltage Ui 600 V Switching voltage ≥ 5 V DC Switching current ≥ 1 mA Mechanical data Weight 220 g Housing material Plastic Mounting version Surface mount version Ambient data Enclosure rating IP65 (IEC 60529) Ambient operating temperature –25 °C … +60 °C Storage temperature –25 °C … +85 °C Classifications eCl@ss 5.0 27371228 eCl@ss 5.1.4 27371228 eCl@ss 6.0 27371244 eCl@ss 6.2 27371244 eCl@ss 7.0 27371244 eCl@ss 8.0 27371244 eCl@ss 8.1 27371244 eCl@ss 9.0 27371244 eCl@ss 10.0 27371244 eCl@ss 11.0 27371244 eCl@ss 12.0 27371244 ETIM 5.0 EC002034 ETIM 6.0 EC002034 ETIM 7.0 EC002034 ETIM 8.0 EC002034 UNSPSC 16.0901 39121545 İlgili ürünler ES21-AT1140 E-STOP-PUSHBUTTON PROT-CO – 5321165SICKEmergency Stop Ekipmanları ₺2.200,00 Ürüne Git ES21-SA11H1 EMERG.-STOP-UNIT 250V/3A – 6036751SICKEmergency Stop Ekipmanları ₺2.200,00 Ürüne Git ES21-SA12H1 EMERG.-STOP-UNIT ILLUM. – 6037464SICKEmergency Stop Ekipmanları ₺2.200,00 Ürüne Git ES21-MB16R5 E-STOP-UNIT – 6083130SICKEmergency Stop Ekipmanları ₺2.200,00 Ürüne Git
Tecnichal data Features Number of positive action N/C contacts 2 Number of N/O contacts 1 Actuation directions 1 Obstruction protection ✔ Release type Rotary release Labeling “EMERGENCY STOP” ✔ Safety-related parameters B10d parameter 2.5 x 105 switching cycles Functions Safe series connection None, only individual wiring (with diagnostics) Interfaces Connection type Cable gland, 2 x M20 Conductor cross section ≤ 2.5 mm² Contact Screw connection Electrical data – Operating data Protection class II (EN 50178) Switching principle Slow action switching element Number of positive action N/C contacts 2 Number of N/O contacts 1 Usage category AC-15/DC-13 (EN 60947-5-1) Rated operating current (voltage) 3 A (250 V AC) 2 A (24 V DC) Rated insulation voltage Ui 600 V Switching voltage ≥ 5 V DC Switching current ≥ 1 mA Mechanical data Weight 220 g Housing material Plastic Mounting version Surface mount version Ambient data Enclosure rating IP65 (IEC 60529) Ambient operating temperature –25 °C … +60 °C Storage temperature –25 °C … +85 °C Classifications eCl@ss 5.0 27371228 eCl@ss 5.1.4 27371228 eCl@ss 6.0 27371244 eCl@ss 6.2 27371244 eCl@ss 7.0 27371244 eCl@ss 8.0 27371244 eCl@ss 8.1 27371244 eCl@ss 9.0 27371244 eCl@ss 10.0 27371244 eCl@ss 11.0 27371244 eCl@ss 12.0 27371244 ETIM 5.0 EC002034 ETIM 6.0 EC002034 ETIM 7.0 EC002034 ETIM 8.0 EC002034 UNSPSC 16.0901 39121545
