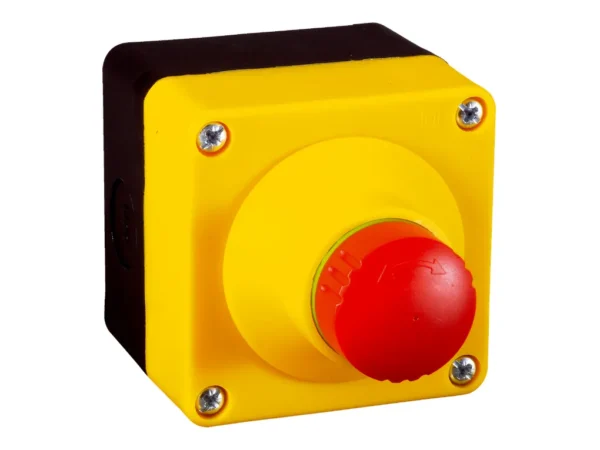

Home Emergency Stop Ekipmanları ES21-SA11H1 EMERG.-STOP-UNIT 250V/3A – 6036751 🔍 ES21-SA11H1 EMERG.-STOP-UNIT 250V/3A – 6036751 ✉ Teklif Al Teklif Al Stok kodu: 6036751 Kategoriler: Emergency Stop Ekipmanları Marka: SICK Açıklama Tecnichal data Features Number of positive action N/C contacts 2 Number of N/O contacts 1 Actuation directions 1 Emergency stop pushbutton (illuminable) ✔ Obstruction protection ✔ Release type Rotary release Safety-related parameters B10d parameter 2.5 x 105 switching cycles Functions Safe series connection None, only individual wiring (with diagnostics) Interfaces Connection type Cable gland, 2 x M20 Conductor cross section ≤ 2.5 mm² Contact Screw connection Electrical data – Operating data Protection class II (EN 50178) Switching principle Slow action switching element Number of positive action N/C contacts 2 Number of N/O contacts 1 Usage category AC-15/DC-13 (EN 60947-5-1) Rated operating current (voltage) 3 A (250 V AC) 2 A (24 V DC) Rated insulation voltage Ui 600 V Switching voltage ≥ 5 V DC Switching current ≥ 1 mA Electrical data – Illumination Supply voltage Vs 24 V DC (12 V DC … 30 V DC) Power consumption 8 mA … 44 mA Life time 70.000 h 100.000 h Mechanical data Weight 230 g Housing material Plastic Mounting version Surface mount version Ambient data Enclosure rating IP54 (IEC 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +85 °C Classifications eCl@ss 5.0 27371228 eCl@ss 5.1.4 27371228 eCl@ss 6.0 27371244 eCl@ss 6.2 27371244 eCl@ss 7.0 27371244 eCl@ss 8.0 27371244 eCl@ss 8.1 27371244 eCl@ss 9.0 27371244 eCl@ss 10.0 27371244 eCl@ss 11.0 27371244 eCl@ss 12.0 27371244 ETIM 5.0 EC002034 ETIM 6.0 EC002034 ETIM 7.0 EC002034 ETIM 8.0 EC002034 UNSPSC 16.0901 39121545 İlgili ürünler ES11-SA2B8 E-STOP-UNIT – 6051328SICKEmergency Stop Ekipmanları ₺2.200,00 Ürüne Git ES21-MB16S4 E-STOP-UNIT – 6082623SICKEmergency Stop Ekipmanları ₺2.200,00 Ürüne Git ES21-SB14G1 E-STOP-UNIT – 6053944SICKEmergency Stop Ekipmanları ₺2.200,00 Ürüne Git ES11-SA1A4 E-STOP-UNIT – 6051327SICKEmergency Stop Ekipmanları ₺2.200,00 Ürüne Git
Tecnichal data Features Number of positive action N/C contacts 2 Number of N/O contacts 1 Actuation directions 1 Emergency stop pushbutton (illuminable) ✔ Obstruction protection ✔ Release type Rotary release Safety-related parameters B10d parameter 2.5 x 105 switching cycles Functions Safe series connection None, only individual wiring (with diagnostics) Interfaces Connection type Cable gland, 2 x M20 Conductor cross section ≤ 2.5 mm² Contact Screw connection Electrical data – Operating data Protection class II (EN 50178) Switching principle Slow action switching element Number of positive action N/C contacts 2 Number of N/O contacts 1 Usage category AC-15/DC-13 (EN 60947-5-1) Rated operating current (voltage) 3 A (250 V AC) 2 A (24 V DC) Rated insulation voltage Ui 600 V Switching voltage ≥ 5 V DC Switching current ≥ 1 mA Electrical data – Illumination Supply voltage Vs 24 V DC (12 V DC … 30 V DC) Power consumption 8 mA … 44 mA Life time 70.000 h 100.000 h Mechanical data Weight 230 g Housing material Plastic Mounting version Surface mount version Ambient data Enclosure rating IP54 (IEC 60529) Ambient operating temperature –25 °C … +55 °C Storage temperature –25 °C … +85 °C Classifications eCl@ss 5.0 27371228 eCl@ss 5.1.4 27371228 eCl@ss 6.0 27371244 eCl@ss 6.2 27371244 eCl@ss 7.0 27371244 eCl@ss 8.0 27371244 eCl@ss 8.1 27371244 eCl@ss 9.0 27371244 eCl@ss 10.0 27371244 eCl@ss 11.0 27371244 eCl@ss 12.0 27371244 ETIM 5.0 EC002034 ETIM 6.0 EC002034 ETIM 7.0 EC002034 ETIM 8.0 EC002034 UNSPSC 16.0901 39121545
