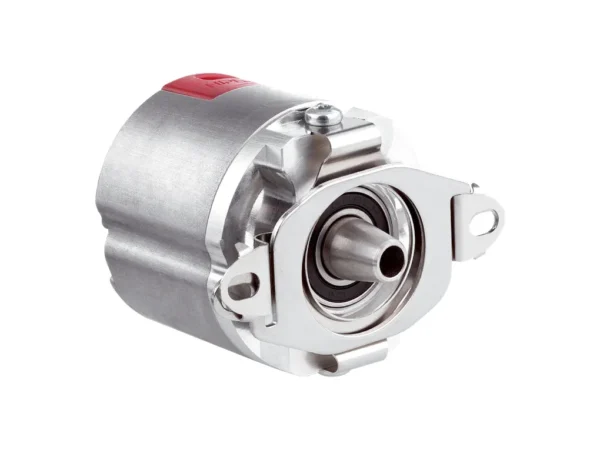

Home Akış (Flow) Sensörleri EDM35-0VF0A024A – 1106846 🔍 EDM35-0VF0A024A – 1106846 ✉ Teklif Al Teklif Al Stok kodu: 1106846 Kategoriler: Akış (Flow) Sensörleri Marka: SICK Açıklama Tecnichal data Performance Position Resolution per revolution 24 bit System accuracy ± 25 ″ Signal noise (σ) ± 1 ″ Number of the absolute ascertainable revolutions 4,096 Interfaces Code sequence Increasing, when turning the shaft For clockwise rotation, looking in direction “A” (see dimensional drawing) Communication interface HIPERFACE DSL® Initialization time ≤ 500 ms Measurement external temperature resistance 32-bit value, without prefix (1 Ω) 0 … 209.600 Ω Electrical data Supply voltage 7 V … 12 V Warm-up time voltage ramp Max. 180 ms Current consumption ≤ 150 mA Compatible with sHub® ✔ MTTF: mean time to dangerous failure 150 years (EN ISO 13849) Mechanical data Shaft version Tapered shaft Dimensions See dimensional drawing Weight ≤ 100 g Moment of inertia of the rotor 5 gcm² Operating speed ≤ 9,000 min⁻¹ Angular acceleration ≤ 250,000 rad/s² Start up torque ≤ 0.6 Ncm, +20 °C Permissible movement static ± 1 mm axial Permissible movement dynamic ± 0.1 mm radial Life of ball bearings 50,000 h at 6,000 min-1 (at a flange temperature of 70 °C) Ambient data Storage temperature range –40 °C … +125 °C, without package Relative humidity/condensation 90 %, Condensation not permitted Resistance to shocks 100 g, 6 ms (according to EN 60068-2-27) Frequency range of resistance to vibrations 50 g, 10 Hz … 2,000 Hz (EN 60068-2-6) EMC According to EN 61000-6-2, EN 61000-6-4 and IEC 61326-3 Enclosure rating IP40, When cover is closed and mating connector is attached (IEC 60529-1) Classifications ECLASS 5.0 27270590 ECLASS 5.1.4 27270590 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270590 ECLASS 8.0 27270590 ECLASS 8.1 27270590 ECLASS 9.0 27270590 ECLASS 10.0 27273805 ECLASS 11.0 27273901 ECLASS 12.0 27273901 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler SEM90-HN050AK22 – 1075348SICKAkış (Flow) Sensörleri ₺850,00 Ürüne Git FTMG-ISD15AXX – 1100211SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FTMG-ISD25AXX – 1100213SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git FUM-H025F1CD50000 – 1082027SICKAkış (Flow) Sensörleri ₺5.500,00 Ürüne Git
Tecnichal data Performance Position Resolution per revolution 24 bit System accuracy ± 25 ″ Signal noise (σ) ± 1 ″ Number of the absolute ascertainable revolutions 4,096 Interfaces Code sequence Increasing, when turning the shaft For clockwise rotation, looking in direction “A” (see dimensional drawing) Communication interface HIPERFACE DSL® Initialization time ≤ 500 ms Measurement external temperature resistance 32-bit value, without prefix (1 Ω) 0 … 209.600 Ω Electrical data Supply voltage 7 V … 12 V Warm-up time voltage ramp Max. 180 ms Current consumption ≤ 150 mA Compatible with sHub® ✔ MTTF: mean time to dangerous failure 150 years (EN ISO 13849) Mechanical data Shaft version Tapered shaft Dimensions See dimensional drawing Weight ≤ 100 g Moment of inertia of the rotor 5 gcm² Operating speed ≤ 9,000 min⁻¹ Angular acceleration ≤ 250,000 rad/s² Start up torque ≤ 0.6 Ncm, +20 °C Permissible movement static ± 1 mm axial Permissible movement dynamic ± 0.1 mm radial Life of ball bearings 50,000 h at 6,000 min-1 (at a flange temperature of 70 °C) Ambient data Storage temperature range –40 °C … +125 °C, without package Relative humidity/condensation 90 %, Condensation not permitted Resistance to shocks 100 g, 6 ms (according to EN 60068-2-27) Frequency range of resistance to vibrations 50 g, 10 Hz … 2,000 Hz (EN 60068-2-6) EMC According to EN 61000-6-2, EN 61000-6-4 and IEC 61326-3 Enclosure rating IP40, When cover is closed and mating connector is attached (IEC 60529-1) Classifications ECLASS 5.0 27270590 ECLASS 5.1.4 27270590 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270590 ECLASS 8.0 27270590 ECLASS 8.1 27270590 ECLASS 9.0 27270590 ECLASS 10.0 27273805 ECLASS 11.0 27273901 ECLASS 12.0 27273901 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
