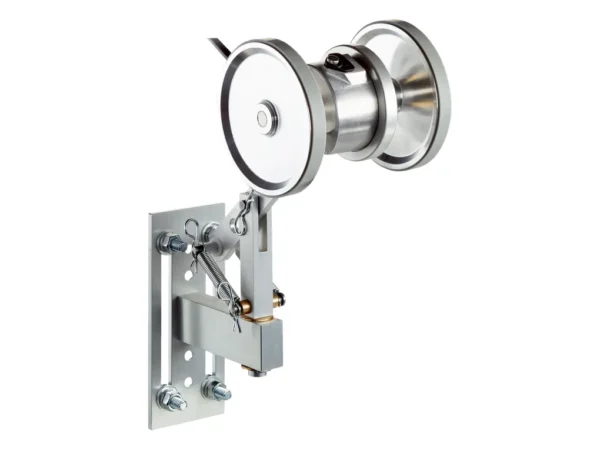

Home Enkoderler DUV60E-D4KMHADA – 1106590 🔍 DUV60E-D4KMHADA – 1106590 ✉ Teklif Al Teklif Al Stok kodu: 1106590 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Pulses per revolution 1 … 1500 Resolution in pulses/mm 0.125 mm/pulse to 304.8 mm/pulse (type-dependent) Measuring step 90° electric/pulses per revolution Measuring step deviation ± 18°, / pulses per revolution Error limits Measuring step deviation x 3 Duty cycle 0.5 ± 5 % Initialization time < 5 ms Interfaces Communication interface Incremental Communication Interface detail TTL / HTL Parameterising data DIP switch, selectable output Electrical data Operating power consumption (no load) 120 mA Connection type Cable, 8-wire, universal, 5 m Pulses per revolution ✔ Output voltage ✔ Direction of rotation ✔ Power consumption max. without load ≤ 1.25 W Supply voltage 4.75 V … 30 V Load current max. ≤ 30 mA, per channel Maximum output frequency 60 kHz Reference signal, number 1 Reference signal, position 180°, electric, gated with A Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 275 years (EN ISO 13849-1) Mechanical data Measuring wheel circumference 12 ″ Measuring wheel surface Smooth plastic (urethane) Spring arm design Spring tension, under-belt flange mount Mass 0.9 kg Encoder material Shaft Stainless steel Flange Aluminum Housing Aluminum Cable PVC Spring arm mechanism material Spring element Spring steel Measuring wheel, spring arm Aluminum Yoke Aluminum Counterweight Aluminum Start up torque 0.5 Ncm Operating torque 0.4 Ncm Operating speed 1,500 min⁻¹ Bearing lifetime 3.6 x 109 revolutions Maximum travel/deflection of spring arm 40 mm Recommended pretension 20 mm Max. permissible working area for the spring (continuous operation) ± 10 mm Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP65 Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –30 °C … +70 °C Storage temperature range –40 °C … +75 °C Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270790 eCl@ss 11.0 27270707 eCl@ss 12.0 27270504 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-SIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP2BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP6BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Pulses per revolution 1 … 1500 Resolution in pulses/mm 0.125 mm/pulse to 304.8 mm/pulse (type-dependent) Measuring step 90° electric/pulses per revolution Measuring step deviation ± 18°, / pulses per revolution Error limits Measuring step deviation x 3 Duty cycle 0.5 ± 5 % Initialization time < 5 ms Interfaces Communication interface Incremental Communication Interface detail TTL / HTL Parameterising data DIP switch, selectable output Electrical data Operating power consumption (no load) 120 mA Connection type Cable, 8-wire, universal, 5 m Pulses per revolution ✔ Output voltage ✔ Direction of rotation ✔ Power consumption max. without load ≤ 1.25 W Supply voltage 4.75 V … 30 V Load current max. ≤ 30 mA, per channel Maximum output frequency 60 kHz Reference signal, number 1 Reference signal, position 180°, electric, gated with A Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 275 years (EN ISO 13849-1) Mechanical data Measuring wheel circumference 12 ″ Measuring wheel surface Smooth plastic (urethane) Spring arm design Spring tension, under-belt flange mount Mass 0.9 kg Encoder material Shaft Stainless steel Flange Aluminum Housing Aluminum Cable PVC Spring arm mechanism material Spring element Spring steel Measuring wheel, spring arm Aluminum Yoke Aluminum Counterweight Aluminum Start up torque 0.5 Ncm Operating torque 0.4 Ncm Operating speed 1,500 min⁻¹ Bearing lifetime 3.6 x 109 revolutions Maximum travel/deflection of spring arm 40 mm Recommended pretension 20 mm Max. permissible working area for the spring (continuous operation) ± 10 mm Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP65 Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –30 °C … +70 °C Storage temperature range –40 °C … +75 °C Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270790 eCl@ss 11.0 27270707 eCl@ss 12.0 27270504 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
