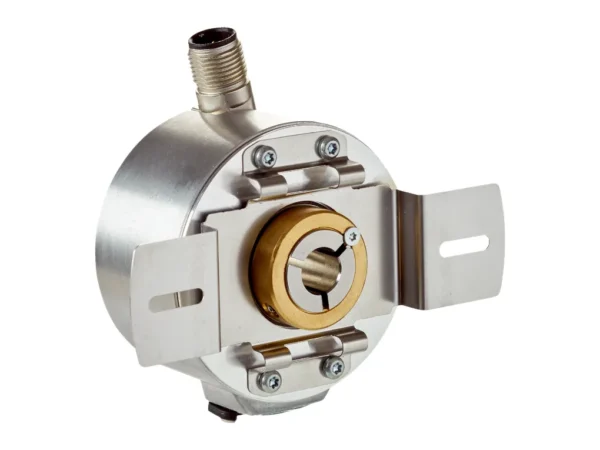

Home Enkoderler DUS60E-TEKC0ABA – 1095909 🔍 DUS60E-TEKC0ABA – 1095909 ✉ Teklif Al Teklif Al Stok kodu: 1095909 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Measuring step 90°, electric/pulses per revolution Measuring step deviation ± 18° / pulses per revolution Error limits Measuring step deviation x 3 Duty cycle ≤ 0.5 ± 5 % Interfaces Communication interface Incremental Communication Interface detail TTL / HTL Parameterising data DIP switch, selectable output Output function A and B output Initialization time < 5 ms Output frequency + 60 kHz Load current ≤ 30 mA, per channel Operating current ≤ 120 mA (without load) Power consumption ≤ 1.25 W (without load) DIP switch parameters Pulses per revolution ✔ Output voltage ✔ Direction of rotation ✔ Configuration switches 2048 PPR values, direction selection, TTL/HTL selectable Electrical data Connection type Male connector, M12, 8-pin, universal Supply voltage 4.75 … 30 V Reference signal, number 1 Reference signal, position 180°, electric, gated with A Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 275 years (EN ISO 13849-1) Mechanical data Mechanical design Through hollow shaft, Front clamp Shaft diameter 12 mm Flange type / stator coupling 2-point stator coupling, slot, hole diameter 63 mm – 83 mm Weight 0.25 kg Shaft material Stainless steel Flange material Aluminum Housing material Aluminum Material, cable PVC Start up torque 0.5 Ncm (+20 °C) Operating torque 0.4 Ncm (+20 °C) Permissible movement static ± 0.3 mm (radial) ± 0.5 mm (axial) Permissible movement dynamic ± 0.1 mm (radial) ± 0.2 mm (axial) Operating speed 1,500 min⁻¹ Moment of inertia of the rotor 50 gcm² Bearing lifetime 3.6 x 109 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP65 Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –30 °C … +90 °C Storage temperature range –40 °C … +75 °C Resistance to shocks 100 g (EN 60068-2-27) Resistance to vibration 30 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270501 eCl@ss 11.0 27270501 eCl@ss 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-MIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP2BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 847T-DN2A-RG03000ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1734-IKALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Measuring step 90°, electric/pulses per revolution Measuring step deviation ± 18° / pulses per revolution Error limits Measuring step deviation x 3 Duty cycle ≤ 0.5 ± 5 % Interfaces Communication interface Incremental Communication Interface detail TTL / HTL Parameterising data DIP switch, selectable output Output function A and B output Initialization time < 5 ms Output frequency + 60 kHz Load current ≤ 30 mA, per channel Operating current ≤ 120 mA (without load) Power consumption ≤ 1.25 W (without load) DIP switch parameters Pulses per revolution ✔ Output voltage ✔ Direction of rotation ✔ Configuration switches 2048 PPR values, direction selection, TTL/HTL selectable Electrical data Connection type Male connector, M12, 8-pin, universal Supply voltage 4.75 … 30 V Reference signal, number 1 Reference signal, position 180°, electric, gated with A Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 275 years (EN ISO 13849-1) Mechanical data Mechanical design Through hollow shaft, Front clamp Shaft diameter 12 mm Flange type / stator coupling 2-point stator coupling, slot, hole diameter 63 mm – 83 mm Weight 0.25 kg Shaft material Stainless steel Flange material Aluminum Housing material Aluminum Material, cable PVC Start up torque 0.5 Ncm (+20 °C) Operating torque 0.4 Ncm (+20 °C) Permissible movement static ± 0.3 mm (radial) ± 0.5 mm (axial) Permissible movement dynamic ± 0.1 mm (radial) ± 0.2 mm (axial) Operating speed 1,500 min⁻¹ Moment of inertia of the rotor 50 gcm² Bearing lifetime 3.6 x 109 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP65 Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –30 °C … +90 °C Storage temperature range –40 °C … +75 °C Resistance to shocks 100 g (EN 60068-2-27) Resistance to vibration 30 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270501 eCl@ss 11.0 27270501 eCl@ss 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
