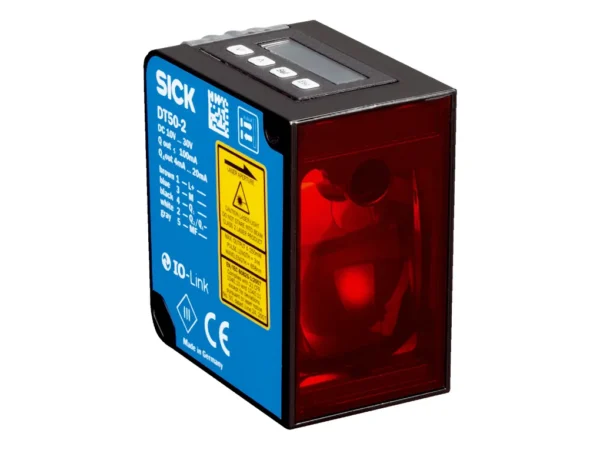

| Supply voltage Vs |
DC 10 V … 30 V |
| Ripple |
≤ 5 Vpp |
| Power consumption |
≤ 1.7 W |
| Initialization time |
≤ 300 ms |
| Warm-up time |
≤ 15 min |
| Housing material |
Metal (zinc diecast) |
| Window material |
Plastic (PMMA) |
| Connection type |
Male connector, M12, 5-pin |
| Indication |
3 x LED, LC display |
| Weight |
235 g |
| Dimensions (W x H x D) |
36.2 mm x 63 mm x 58.6 mm |
| Enclosure rating |
IP65
IP67
|
| Protection class |
III |
|
| Safety-related parameters |
|
| Performance |
| Measurement range min … max: |
200 mm … 30,000 mm, 90% remission factor
200 mm … 17,000 mm, 18 % remission
200 mm … 10,000 mm, 6% remission factor
|
| Target |
Natural objects |
| Resolution |
0.1 mm |
| Repeatability |
≥ 0.5 mm |
| Accuracy |
± 7 mm |
| Response time |
1.67 ms … 150 ms, 1.67 ms / 6.67 ms / 16.67ms / 50 ms / 150 ms |
| Switching frequency |
500 Hz / 125 Hz / 50 Hz / 16.6 Hz / 5.5 Hz |
| Output time |
0.67 ms / 2.67 ms / 6.67 ms / 20 ms / 60 ms |
| Light source |
Laser, red
visible red light |
| Laser class |
1 (IEC 60825-1:2014, EN 60825-1:2014) |
| Typ. light spot size (distance) |
10 mm x 10 mm (at 10 m) |
| Additional function |
Set speed: Super Fast … Super Slow, teach-in, scaling and inversion of analog output, Output Q2 adaptable: Current output / Voltage output / Digital output / Q1 not / deactivated, Switching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB), teach-in, scaling and inversion of digital output, Multifunctional input: laser off / external teach / deactivated, reset to factory default, Shape comparison: based on the distance measured over a period of time, Hold measurement value, switch-off or lock display, easy teach option |
| Average laser service life (at 25 °C) |
100,000 h |
|
| Interfaces |
| IO-Link |
✔ , IO-Link V1.1, COM3 (230,4 kBaud) |
| Function |
Process data, parameterization, diagnosis, data storage |
|
| Digital output |
|
| Number |
1 … 2 |
| Type |
Push-pull: PNP/NPN |
| Function |
Complementary digital outputs (Q, Ǭ) |
|
Output Q2 adaptable: Current output / Voltage output / Digital output / Q1 not / deactivated |
| Maximum output current IA |
≤ 100 mA |
|
| Analog output |
|
| Number |
1 |
| Type |
Current output / voltage output |
| Function |
Output Q2 adaptable: Current output / Voltage output / Digital output / Q1 not / deactivated |
| Current |
4 mA … 20 mA, ≤ 450 Ω |
| Voltage |
0 V … 10 V, ≥ 50,000 Ω |
| Resolution |
16 bit |
|
| Multifunctional input (MF) |
1 x |
| Hysteresis |
0 mm … 29,950 mm |
|
| Ambient data |
| Ambient temperature, operation |
–40 °C … +65 °C, Uv ≤ 24 V
–30 °C … +80 °C, operation with 2 cooling plates
–30 °C … +140 °C, operation with 2 cooling plates and protection filter
|
| Ambient temperature, storage |
–40 °C … +75 °C |
| Max. rel. humidity (not condensing) |
≤ 95 % |
| Typ. Ambient light immunity |
40,000 lx |
| Vibration resistance |
(IEC 60068-2-6:2007) Sinusoidal resonance measurement: 10 Hz … 1,000 Hz
(IEC 60068-2-64:2008) Noise test: 20 Hz … 500 Hz, 10 g RMS, 2 h / axis
|
| Shock resistance |
(IEC 60068-2-27:2008) 30 g, 11 ms, 6 axes, ± 3 single shocks / axis
(IEC 60068-2-27:2008) 10 g, 6 ms, 6 axes, ± 500 shocks / axis
(IEC 60068-2-27:2008) 70 g, 6 ms, 1 axis, ± 100,000 shocks / axis
|
|
| Classifications |
| ECLASS 5.0 |
27270801 |
| ECLASS 5.1.4 |
27270801 |
| ECLASS 6.0 |
27270801 |
| ECLASS 6.2 |
27270801 |
| ECLASS 7.0 |
27270801 |
| ECLASS 8.0 |
27270801 |
| ECLASS 8.1 |
27270801 |
| ECLASS 9.0 |
27270801 |
| ECLASS 10.0 |
27270801 |
| ECLASS 11.0 |
27270801 |
| ECLASS 12.0 |
27270916 |
| ETIM 5.0 |
EC001825 |
| ETIM 6.0 |
EC001825 |
| ETIM 7.0 |
EC001825 |
| ETIM 8.0 |
EC001825 |
| UNSPSC 16.0901 |
41111613 |
|
