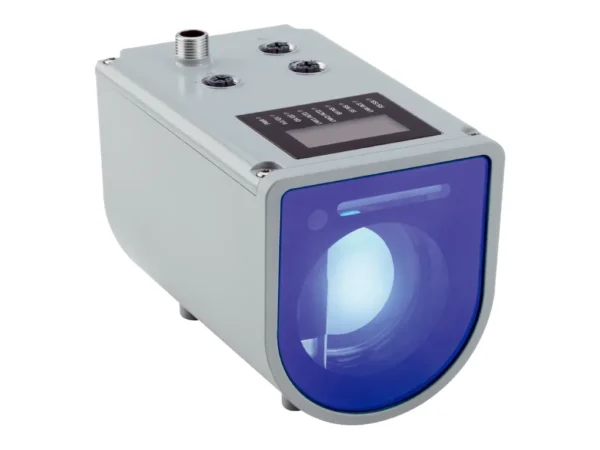

DT1000-S11110 – 1100074

≤ 22 W, With heating switched off

≤ 35 W, With heating switched on

IP65

IP67

0.2 m … 155 m, 6% remission factor

0.2 m … 460 m, 90% remission factor

1 ms

4 ms

16 ms

64 ms

128 ms

Infrared light (905 nm, measuring laser)

Visible red light (650 nm, Adjustment aid)

5 mm x 20 mm (at 1 m) ¹¹⁾

20 mm x 20 mm (at 5 m) ¹¹⁾

35 mm x 25 mm (at 10 m) ¹¹⁾

150 mm x 50 mm (at 50 m) ¹¹⁾

290 mm x 80 mm (at 100 m) ¹¹⁾

570 mm x 140 mm (at 200 m) ¹¹⁾

Rain and snow filter

Fog filter

Moving average distance value

Kalman filter

Moving average speed value

Internal pull-down circuit
HIGH switching voltage: min. 13 V … max. supply voltage

LOW switching voltage: max. 5 V

Switching functions: deactivate measuring laser, activate alignment laser, preset

–40 °C … +55 °C

–40 °C … +95 °C, operation with cooling case

Shock: 30 g / 6 ms according to DIN EN 60068-2-27 (Ea), 6 axes

Continuous shock: 25 g / 6 ms according to DIN EN 60068-2-27 (fatigue), 500 shocks, 6 axes
