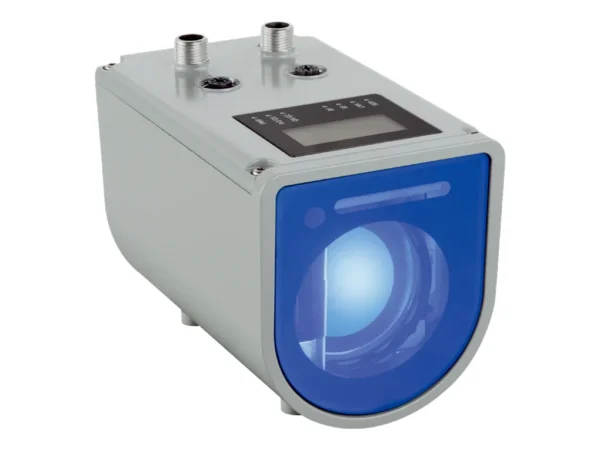

| Features |
| Measurement principle |
HDDM+ |
|
| Mechanics/electronics |
| Supply voltage Vs |
DC 18 V … 30 V, reverse polarity protected |
| Ripple |
≤ 5 Vpp |
| Power consumption |
≤ 22 W, With heating switched off
≤ 35 W, With heating switched on
|
| Initialization time |
> 30 s |
| Housing material |
Metal (Aluminum alloy (AlSi12)) |
| Window material |
Glass |
| Connection type |
Round connector M12 x 1 |
| Indication |
Graphical, resistive touch display, status LEDs |
| Weight |
1,000 g |
| Dimensions (W x H x D) |
84 mm x 104.4 mm x 140.5 mm |
| Enclosure rating |
IP65
IP67
|
| Protection class |
III (EN 61140) |
|
| Safety-related parameters |
|
| Performance |
| Measurement principle |
HDDM+ |
| Measurement range min … max: |
0.2 m … 155 m, 6% remission factor
0.2 m … 460 m, 90% remission factor
|
| Target |
Natural objects |
| Resolution |
0.001 mm … 100 mm, adjustable |
| Repeatability |
≥ 1 mm, See repeatability characteristic lines |
| Accuracy |
Typ. ± 15 mm |
| Response time |
3 ms … 384 ms |
| Measurement cycle time |
1 ms
4 ms
16 ms
64 ms
128 ms
|
| Output time |
≥ 1 ms 10) |
| Light source |
Infrared light (905 nm, measuring laser)
Visible red light (650 nm, Adjustment aid)
|
| Laser class |
1, even with simultaneous operation of measurement and alignment laser (IEC 60825-1:2014, EN 60825-1:2014) |
| Typ. light spot size (distance) |
5 mm x 20 mm (at 1 m) 11)
20 mm x 20 mm (at 5 m) 11)
35 mm x 25 mm (at 10 m) 11)
150 mm x 50 mm (at 50 m) 11)
290 mm x 80 mm (at 100 m) 11)
570 mm x 140 mm (at 200 m) 11)
|
| Filter |
Rain and snow filter
Fog filter
Moving average distance value
Kalman filter
Moving average speed value
|
| Max. object temperature |
+1,400 °C 12) |
| Additional function |
Selection of relevant distance and signal level range, Selection of first or last echo in selected distance and signal level range |
| Average laser service life (at 25 °C) |
100,000 h 13) |
| Max. movement speed |
128 m/s |
|
| Interfaces |
| Ethernet |
✔ , TCP/IP |
| Function |
Parameterization, output of measurement data |
| Data transmission rate |
10/100 MBit/s |
|
| PROFIBUS DP |
✔ |
| Function |
Parameterization, output of measurement data |
| Data transmission rate |
9.6 kBaud … 12 MBaud, Automatic detection |
|
| Serial |
✔ , RS-422 |
| Remark |
Switchable to SSI |
| Function |
Parameterization, output of measurement data |
|
| SSI |
✔ |
| Remark |
Switchable to RS-422 |
| Function |
Output of measurement data |
|
| Inputs/outputs |
|
| In1/Q1 |
Digital input, digital output (Switchable) |
| QA/Q2 |
Analog output, digital output (Switchable) |
|
| Digital input |
Internal pull-down circuit
HIGH switching voltage: min. 13 V … max. supply voltage
LOW switching voltage: max. 5 V
Switching functions: deactivate measuring laser, activate alignment laser, preset
|
| Digital output |
|
| Number |
0 … 2 |
| Type |
Push-pull: PNP/NPN |
| Maximum output current IA |
≤ 100 mA |
|
| Analog output |
|
| Number |
1 |
| Type |
Current output |
| Current |
4 mA … 20 mA |
| Resolution |
16 bit |
|
|
| Ambient data |
| Ambient temperature, operation |
–40 °C … +55 °C
–40 °C … +95 °C, operation with cooling case
|
| Ambient temperature, storage |
–40 °C … +75 °C |
| Max. rel. humidity (not condensing) |
≤ 95 % |
| Effect of air pressure |
0.3 ppm/hPa |
| Effect of air temperature |
–1 ppm/K |
| Temperature drift |
Typ. 0.25 mm/K |
| Typ. Ambient light immunity |
≤ 100,000 lx |
| Mechanical load |
Shock: 30 g / 6 ms according to DIN EN 60068-2-27 (Ea), 6 axes
Continuous shock: 25 g / 6 ms according to DIN EN 60068-2-27 (fatigue), 500 shocks, 6 axes
|
|
| Classifications |
| eCl@ss 5.0 |
27270801 |
| eCl@ss 5.1.4 |
27270801 |
| eCl@ss 6.0 |
27270801 |
| eCl@ss 6.2 |
27270801 |
| eCl@ss 7.0 |
27270801 |
| eCl@ss 8.0 |
27270801 |
| eCl@ss 8.1 |
27270801 |
| eCl@ss 9.0 |
27270801 |
| eCl@ss 10.0 |
27270801 |
| eCl@ss 11.0 |
27270801 |
| eCl@ss 12.0 |
27270916 |
| ETIM 5.0 |
EC001825 |
| ETIM 6.0 |
EC001825 |
| ETIM 7.0 |
EC001825 |
| ETIM 8.0 |
EC001825 |
| UNSPSC 16.0901 |
41111613 |
|
