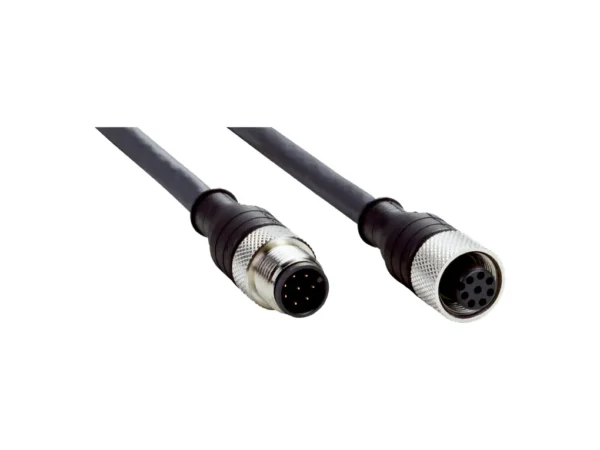

Home Sensör Kabloları DSL-127SGM25E25KM0 – 2076626 🔍 DSL-127SGM25E25KM0 – 2076626 ✉ Teklif Al Teklif Al Stok kodu: 2076626 Kategoriler: Sensör Kabloları Marka: SICK Açıklama Tecnichal data Technical specifications Connection type head A Female connector, M12, 8-pin, straight Connection type head B Male connector, M12, 8-pin, straight Connector material TPU Connector color Black Locking nut material CuZn, nickel-plated brass Tightening torque 0.5 Nm Cable 0.25 m, 7-wire, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Black Cable diameter 6 mm Conductor cross section 0.25 mm² Shielding Shielded Bending radius Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Bending cycles > 2,000,000 Reference voltage ≤ 30 V Current loading 2 A Traversing speed 3.3 m/s Acceleration ≤ 5 m/s² Signal type Sensor/actuator cable Authorizations UL recognized in accordance with AWM Style 20549 (80 °C / 300 V), jacket UL recognized in accordance with AWM Style 10493 (80 °C / 300 V), conductor UL File No. CYJV.E335179 Enclosure rating IP65/ IP67 (EN 60529) Operating temperature Flexible use –25 °C … +80 °C Stationary position –50 °C … +80 °C Drag chain operation –25 °C … +60 °C Head –25 °C … +80 °C Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604 İlgili ürünler Endüstriyel bağlantı kablosu – 889D-F4UC-20ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4HC-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889M-FX9AE-15ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-E4HJ-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git
Tecnichal data Technical specifications Connection type head A Female connector, M12, 8-pin, straight Connection type head B Male connector, M12, 8-pin, straight Connector material TPU Connector color Black Locking nut material CuZn, nickel-plated brass Tightening torque 0.5 Nm Cable 0.25 m, 7-wire, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Black Cable diameter 6 mm Conductor cross section 0.25 mm² Shielding Shielded Bending radius Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Bending cycles > 2,000,000 Reference voltage ≤ 30 V Current loading 2 A Traversing speed 3.3 m/s Acceleration ≤ 5 m/s² Signal type Sensor/actuator cable Authorizations UL recognized in accordance with AWM Style 20549 (80 °C / 300 V), jacket UL recognized in accordance with AWM Style 10493 (80 °C / 300 V), conductor UL File No. CYJV.E335179 Enclosure rating IP65/ IP67 (EN 60529) Operating temperature Flexible use –25 °C … +80 °C Stationary position –50 °C … +80 °C Drag chain operation –25 °C … +60 °C Head –25 °C … +80 °C Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604
