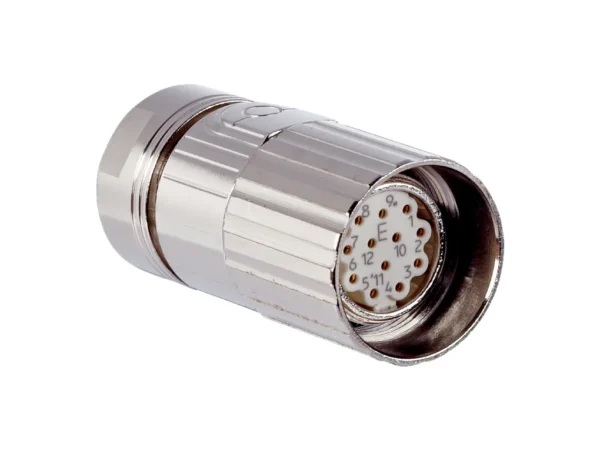

Home Konnektörler DOS-2312-GS02 CONNECTOR FEM M23 12P.ST – 2071778 🔍 DOS-2312-GS02 CONNECTOR FEM M23 12P.ST – 2071778 ✉ Teklif Al Teklif Al Stok kodu: 2071778 Kategoriler: Konnektörler Marka: SICK Açıklama Tecnichal data Technical specifications Accessory group Plug connectors and cables Accessory family Field-attachable connectors Connection type head A Female connector, M23, 12-pin, straight Connection type Solder connection Locking plug connector Quick screw connection Connector material Zinc die-cast, nickel-plated Connector color Black Locking nut material Nickel-plated brass Shielding Shielded Reference voltage ≤ 160 V Current loading 7 A Signal type HIPERFACE®, SSI, Incremental Enclosure rating IP66/ IP67 Description M23 female connector Ambient operating temperature Head –20 °C … +130 °C Classifications ECLASS 5.0 27279290 ECLASS 5.1.4 27279290 ECLASS 6.0 27279221 ECLASS 6.2 27279221 ECLASS 7.0 27440104 ECLASS 8.0 27440104 ECLASS 8.1 27440104 ECLASS 9.0 27440102 ECLASS 10.0 27440102 ECLASS 11.0 27440102 ECLASS 12.0 27440116 ETIM 5.0 EC002635 ETIM 6.0 EC002635 ETIM 7.0 EC002635 ETIM 8.0 EC002635 UNSPSC 16.0901 39121421 İlgili ürünler Ethernet Modülleri 4 Port GbE ITAM Module with RJ45 connector – ITAM-NC02-C0A1EAdvantechKonnektörler ₺450,00 Ürüne Git Ethernet Medya, RJ45, Standard, Right Angle Male, 4 conductors (2-pair), Teal 24 AWG Highflex TPE, Unshielded, 100BASE-TX, 100 Mbit/s, RJ45 Connector, Straight Male, standard, 5 Meters, Standard – 1585J-E4TBJM-5ALLEN BRADLEYKonnektörler ₺450,00 Ürüne Git Busbar Connector – 141A-VC3BALLEN BRADLEYKonnektörler ₺450,00 Ürüne Git SCREW TERMINAL SOCKET FLARE MOVE SF38 12V – 80.063.4021.1WIELANDKonnektörler ₺450,00 Ürüne Git
Tecnichal data Technical specifications Accessory group Plug connectors and cables Accessory family Field-attachable connectors Connection type head A Female connector, M23, 12-pin, straight Connection type Solder connection Locking plug connector Quick screw connection Connector material Zinc die-cast, nickel-plated Connector color Black Locking nut material Nickel-plated brass Shielding Shielded Reference voltage ≤ 160 V Current loading 7 A Signal type HIPERFACE®, SSI, Incremental Enclosure rating IP66/ IP67 Description M23 female connector Ambient operating temperature Head –20 °C … +130 °C Classifications ECLASS 5.0 27279290 ECLASS 5.1.4 27279290 ECLASS 6.0 27279221 ECLASS 6.2 27279221 ECLASS 7.0 27440104 ECLASS 8.0 27440104 ECLASS 8.1 27440104 ECLASS 9.0 27440102 ECLASS 10.0 27440102 ECLASS 11.0 27440102 ECLASS 12.0 27440116 ETIM 5.0 EC002635 ETIM 6.0 EC002635 ETIM 7.0 EC002635 ETIM 8.0 EC002635 UNSPSC 16.0901 39121421
