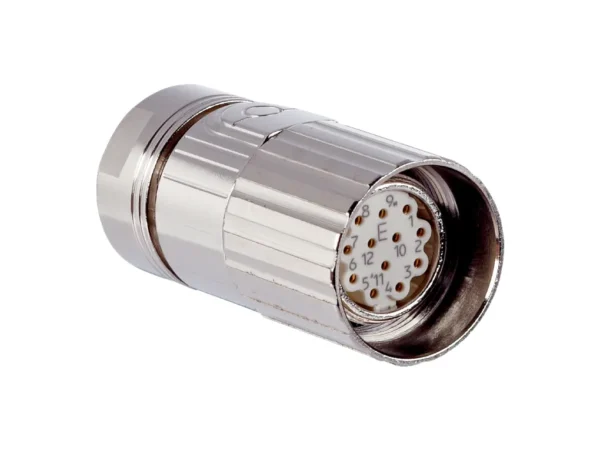

Home Konnektörler DOS-2312-G02 CONNECTOR FEM M23 12P.ST – 2077057 🔍 DOS-2312-G02 CONNECTOR FEM M23 12P.ST – 2077057 ✉ Teklif Al Teklif Al Stok kodu: 2077057 Kategoriler: Konnektörler Marka: SICK Açıklama Tecnichal data Technical specifications Accessory group Plug connectors and cables Accessory family Field-attachable connectors Connection type head A Female connector, M23, 12-pin, straight Connection type Solder connection Locking plug connector Quick screw connection Connector material Zinc diecast Locking nut material Nickel-plated Shielding Shielded Reference voltage ≤ 300 V Current loading 8 A Signal type HIPERFACE®, SSI, Incremental Enclosure rating IP65/ IP66/ IP67/ IP69K Description Head A: female connector, M23, 12-pin, straight, shielded, for cable diameter 5.5 mm … 10.5 mm Head B: – Operating temperature: –40 °C … +125 °C Ambient operating temperature Head –40 °C … +125 °C Classifications ECLASS 5.0 27279290 ECLASS 5.1.4 27279290 ECLASS 6.0 27279221 ECLASS 6.2 27279221 ECLASS 7.0 27440104 ECLASS 8.0 27440104 ECLASS 8.1 27440104 ECLASS 9.0 27440102 ECLASS 10.0 27440102 ECLASS 11.0 27440102 ECLASS 12.0 27440116 ETIM 5.0 EC002635 ETIM 6.0 EC002635 ETIM 7.0 EC002635 ETIM 8.0 EC002635 UNSPSC 16.0901 39121421 İlgili ürünler SCREW TERMINAL SOCKET FLARE MOVE SF38 230V – 80.063.4026.1WIELANDKonnektörler ₺450,00 Ürüne Git Ethernet Modülleri 4 Port GbE ITA-EM Module with RJ45 connector – ITA-EM-NC22-C0A1EAdvantechKonnektörler ₺450,00 Ürüne Git Busbar Connector – 141A-VC3BALLEN BRADLEYKonnektörler ₺450,00 Ürüne Git Plug-In Control Plug – 141A-APC12ALLEN BRADLEYKonnektörler ₺450,00 Ürüne Git
Tecnichal data Technical specifications Accessory group Plug connectors and cables Accessory family Field-attachable connectors Connection type head A Female connector, M23, 12-pin, straight Connection type Solder connection Locking plug connector Quick screw connection Connector material Zinc diecast Locking nut material Nickel-plated Shielding Shielded Reference voltage ≤ 300 V Current loading 8 A Signal type HIPERFACE®, SSI, Incremental Enclosure rating IP65/ IP66/ IP67/ IP69K Description Head A: female connector, M23, 12-pin, straight, shielded, for cable diameter 5.5 mm … 10.5 mm Head B: – Operating temperature: –40 °C … +125 °C Ambient operating temperature Head –40 °C … +125 °C Classifications ECLASS 5.0 27279290 ECLASS 5.1.4 27279290 ECLASS 6.0 27279221 ECLASS 6.2 27279221 ECLASS 7.0 27440104 ECLASS 8.0 27440104 ECLASS 8.1 27440104 ECLASS 9.0 27440102 ECLASS 10.0 27440102 ECLASS 11.0 27440102 ECLASS 12.0 27440116 ETIM 5.0 EC002635 ETIM 6.0 EC002635 ETIM 7.0 EC002635 ETIM 8.0 EC002635 UNSPSC 16.0901 39121421
