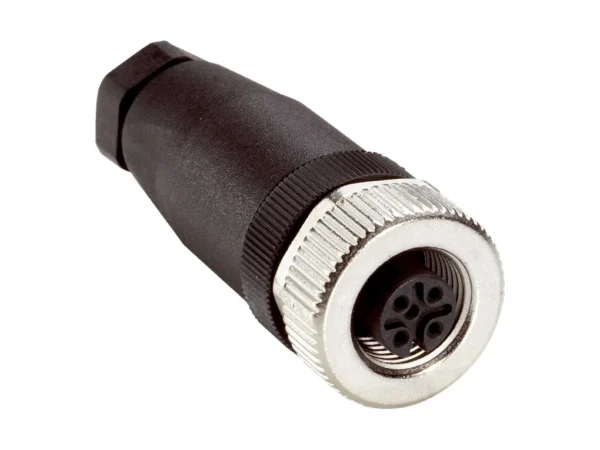

Home Sensör Kabloları DOS-1205-G – 6009719 🔍 DOS-1205-G – 6009719 ✉ Teklif Al Teklif Al Stok kodu: 6009719 Kategoriler: Sensör Kabloları Marka: SICK Açıklama Tecnichal data Technical specifications Accessory group Plug connectors and cables Accessory family Field-attachable connectors Connection type head A Female connector, M12, 5-pin, straight Connection type Screw-type terminals Connector material PA Connector color Black Locking nut material CuZn Tightening torque 0.6 Nm Shielding Unshielded Permitted cross-section ≤ 0.75 mm² Reference voltage ≤ 125 V Current loading 4 A Authorizations UL UL File No. E335179 Enclosure rating IP67 Description Head A: female connector, M12, 5-pin, straight, unshielded, for cable diameter 4 mm … 6 mm Head B: – Ambient operating temperature Head –40 °C … +85 °C Classifications ECLASS 5.0 27279290 ECLASS 5.1.4 27279290 ECLASS 6.0 27279221 ECLASS 6.2 27279221 ECLASS 7.0 27440104 ECLASS 8.0 27440104 ECLASS 8.1 27440104 ECLASS 9.0 27440102 ECLASS 10.0 27440102 ECLASS 11.0 27440102 ECLASS 12.0 27440116 ETIM 5.0 EC002635 ETIM 6.0 EC002635 ETIM 7.0 EC002635 ETIM 8.0 EC002635 UNSPSC 16.0901 39121421 İlgili ürünler Endüstriyel bağlantı kablosu – 889D-M4HC-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4WE-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4HC-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-R8AB-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git
Tecnichal data Technical specifications Accessory group Plug connectors and cables Accessory family Field-attachable connectors Connection type head A Female connector, M12, 5-pin, straight Connection type Screw-type terminals Connector material PA Connector color Black Locking nut material CuZn Tightening torque 0.6 Nm Shielding Unshielded Permitted cross-section ≤ 0.75 mm² Reference voltage ≤ 125 V Current loading 4 A Authorizations UL UL File No. E335179 Enclosure rating IP67 Description Head A: female connector, M12, 5-pin, straight, unshielded, for cable diameter 4 mm … 6 mm Head B: – Ambient operating temperature Head –40 °C … +85 °C Classifications ECLASS 5.0 27279290 ECLASS 5.1.4 27279290 ECLASS 6.0 27279221 ECLASS 6.2 27279221 ECLASS 7.0 27440104 ECLASS 8.0 27440104 ECLASS 8.1 27440104 ECLASS 9.0 27440102 ECLASS 10.0 27440102 ECLASS 11.0 27440102 ECLASS 12.0 27440116 ETIM 5.0 EC002635 ETIM 6.0 EC002635 ETIM 7.0 EC002635 ETIM 8.0 EC002635 UNSPSC 16.0901 39121421
