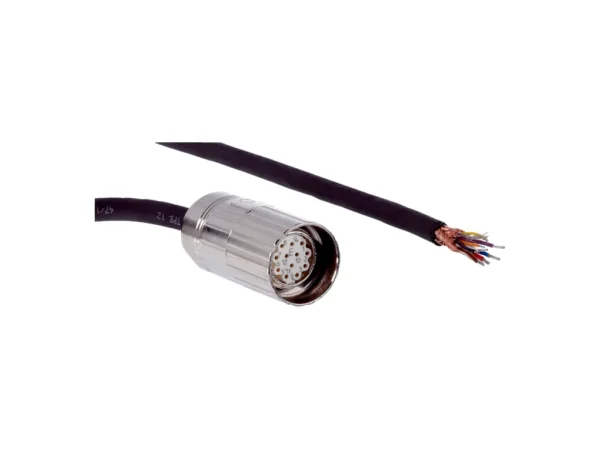

Home Sensör Kabloları DOL-2312-G1M5MD1 – 2062240 🔍 DOL-2312-G1M5MD1 – 2062240 ✉ Teklif Al Teklif Al Stok kodu: 2062240 Kategoriler: Sensör Kabloları Marka: SICK Açıklama Tecnichal data Technical specifications Connection type head A Female connector, M23, 12-pin, straight Connection type head B Flying leads Locking nut material Zinc die-cast, nickel-plated Cable 1.5 m, 12-wire, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Black Cable diameter 7.8 mm Conductor cross section 4 x 2 x 0.25 mm² + 2 x 0.5 mm² + 2 x 0.14 mm² Shielding Shielded Bending radius Stationary position > 5 x cable diameter Drag chain operation > 7.5 x cable diameter Reference voltage ≤ 160 V Current loading 7 A Signal type Incremental Enclosure rating IP66/ IP67 Description Head A: female connector, M23, 12-pin, straight Head B: Cable Cable: incremental, suitable for drag chain, PUR, halogen-free, shielded, 4 x 2 x 0.25 mm² +2 x 0.5 mm² +1 x 0.14 mm², Ø 7.8 mm Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604 İlgili ürünler Endüstriyel bağlantı kablosu – 889N-F5AEC-12FALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4HC-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4HC-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-E4HJ-10ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git
Tecnichal data Technical specifications Connection type head A Female connector, M23, 12-pin, straight Connection type head B Flying leads Locking nut material Zinc die-cast, nickel-plated Cable 1.5 m, 12-wire, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Black Cable diameter 7.8 mm Conductor cross section 4 x 2 x 0.25 mm² + 2 x 0.5 mm² + 2 x 0.14 mm² Shielding Shielded Bending radius Stationary position > 5 x cable diameter Drag chain operation > 7.5 x cable diameter Reference voltage ≤ 160 V Current loading 7 A Signal type Incremental Enclosure rating IP66/ IP67 Description Head A: female connector, M23, 12-pin, straight Head B: Cable Cable: incremental, suitable for drag chain, PUR, halogen-free, shielded, 4 x 2 x 0.25 mm² +2 x 0.5 mm² +1 x 0.14 mm², Ø 7.8 mm Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604
