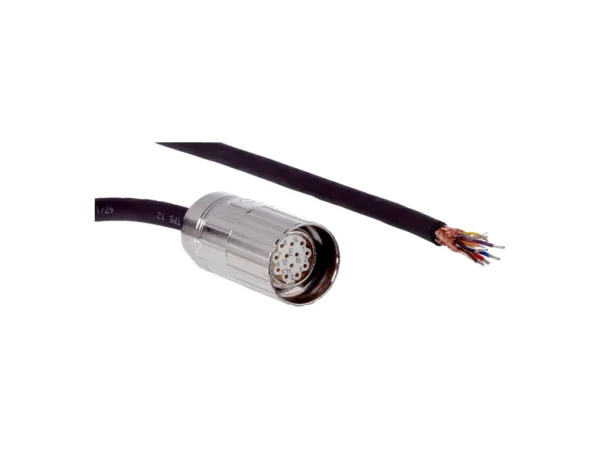

Home Sensör Kabloları DOL-2312-G07MLA5 CABLE FEM 12PIN 7M – 2030683 🔍 DOL-2312-G07MLA5 CABLE FEM 12PIN 7M – 2030683 ✉ Teklif Al Teklif Al Stok kodu: 2030683 Kategoriler: Sensör Kabloları Marka: SICK Açıklama Tecnichal data Technical specifications Connection type head A Female connector, M23, 12-pin, straight Connection type head B Flying leads Locking nut material Zinc die-cast, nickel-plated Cable 7 m, 11-wire, PUR Jacket material PUR Jacket color Black Cable diameter 7.5 mm Conductor cross section 4 x 2 x 0.25 mm2 + 2 x 0.5 mm2 + 1 x 0.14 mm² Shielding Shielded Bending radius Stationary position > 5 x cable diameter Reference voltage ≤ 160 V Current loading 7 A Signal type SSI Enclosure rating IP66/ IP67 Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604 İlgili ürünler Endüstriyel bağlantı kablosu – 889D-M4WE-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4HC-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-M4HL-10ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-E4HJ-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git
Tecnichal data Technical specifications Connection type head A Female connector, M23, 12-pin, straight Connection type head B Flying leads Locking nut material Zinc die-cast, nickel-plated Cable 7 m, 11-wire, PUR Jacket material PUR Jacket color Black Cable diameter 7.5 mm Conductor cross section 4 x 2 x 0.25 mm2 + 2 x 0.5 mm2 + 1 x 0.14 mm² Shielding Shielded Bending radius Stationary position > 5 x cable diameter Reference voltage ≤ 160 V Current loading 7 A Signal type SSI Enclosure rating IP66/ IP67 Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604
