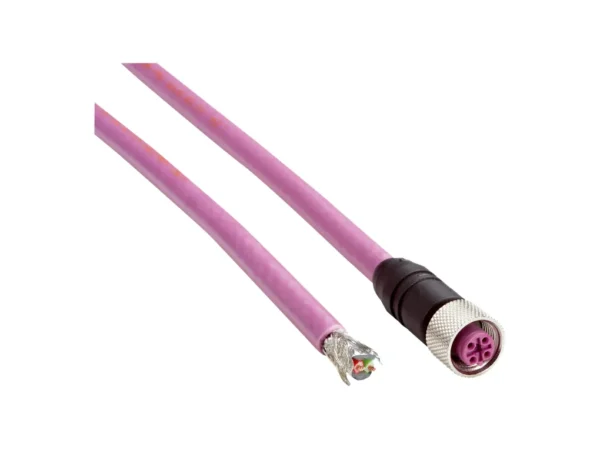

Home Sensör Kabloları DOL-1205-G12MQ – 6032636 🔍 DOL-1205-G12MQ – 6032636 ✉ Teklif Al Teklif Al Stok kodu: 6032636 Kategoriler: Sensör Kabloları Marka: SICK Açıklama Tecnichal data Technical specifications Accessory group Plug connectors and cables Accessory family Connecting cables Connection type head A Female connector, M12, 5-pin, straight, B-coded Connection type head B Flying leads Connection type Flying leads Connector material TPU Connector color Black Locking nut material CuZn, nickel-plated brass Tightening torque 0.5 Nm Cable 12 m, 2-wire, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Violet Cable diameter 7.6 mm Conductor cross section 2 x 0.34 mm² Shielding Shielded Bending radius Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Bending cycles ≥ 1,000,000 Reference voltage ≤ 60 V Rated impulse voltage 1.5 kV Current loading 4 A Traversing speed 3 m/s Travelling distance 5 m Acceleration ≤ 5 m/s² Signal type PROFIBUS DP Special feature Twisted pair Application Zones with oils and lubricants Enclosure rating IP67 Ambient operating temperature Flexible use –25 °C … +80 °C Stationary position –50 °C … +80 °C Drag chain operation –25 °C … +60 °C Head –25 °C … +85 °C Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604 İlgili ürünler Endüstriyel bağlantı kablosu – 889D-F4WE-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4UE-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4UC-20ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-R8AB-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git
Tecnichal data Technical specifications Accessory group Plug connectors and cables Accessory family Connecting cables Connection type head A Female connector, M12, 5-pin, straight, B-coded Connection type head B Flying leads Connection type Flying leads Connector material TPU Connector color Black Locking nut material CuZn, nickel-plated brass Tightening torque 0.5 Nm Cable 12 m, 2-wire, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Violet Cable diameter 7.6 mm Conductor cross section 2 x 0.34 mm² Shielding Shielded Bending radius Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Bending cycles ≥ 1,000,000 Reference voltage ≤ 60 V Rated impulse voltage 1.5 kV Current loading 4 A Traversing speed 3 m/s Travelling distance 5 m Acceleration ≤ 5 m/s² Signal type PROFIBUS DP Special feature Twisted pair Application Zones with oils and lubricants Enclosure rating IP67 Ambient operating temperature Flexible use –25 °C … +80 °C Stationary position –50 °C … +80 °C Drag chain operation –25 °C … +60 °C Head –25 °C … +85 °C Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604
