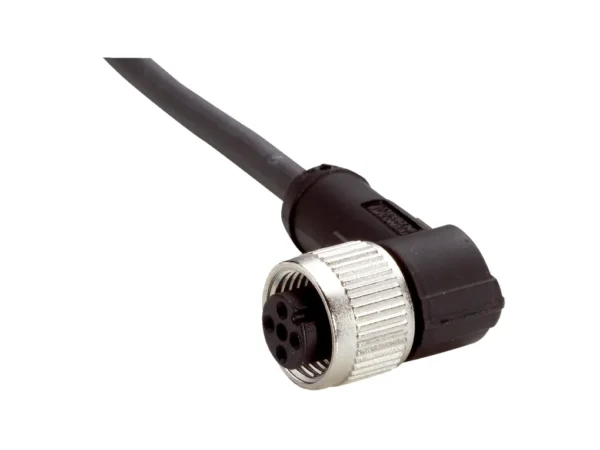

Home Sensör Kabloları DOL-1204W20MC75KM0 – 2089704 🔍 DOL-1204W20MC75KM0 – 2089704 ✉ Teklif Al Teklif Al Stok kodu: 2089704 Kategoriler: Sensör Kabloları Marka: SICK Açıklama Tecnichal data Technical specifications Connection type head A Female connector, M12, 4-pin, angled Connection type head B Flying leads Connection type Flying leads Connector material TPU Connector color Black Locking nut material Zinc die-cast, nickel-plated Tightening torque 0.4 Nm Cable 20 m, 4-wire, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Black Cable diameter 5.9 mm Conductor cross section 0.75 mm² Shielding Unshielded Bending radius Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Bending cycles ≥ 2,000,000 Reference voltage ≤ 250 V Current loading 4 A Traversing speed 3 m/s Travelling distance 5 m Acceleration ≤ 5 m/s² Signal type Sensor/actuator cable Application Zones with oils and lubricants Drag chain operation Enclosure rating IP65/ IP67/ IP68 Description Head A: female connector, M12, 4-pin, angled Head B: cable Cable: for voltage supply, suitable for drag chains, PUR , halogen-free, unshielded, 4 x 0.75 mm², Ø 5.9 mm Operating temperature Flexible use –5 °C … +80 °C Stationary position –25 °C … +80 °C Head –25 °C … +90 °C Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604 İlgili ürünler Endüstriyel bağlantı kablosu – 889D-E4HJ-10ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889M-FX9AE-15ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4UC-15ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-M4WE-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git
Tecnichal data Technical specifications Connection type head A Female connector, M12, 4-pin, angled Connection type head B Flying leads Connection type Flying leads Connector material TPU Connector color Black Locking nut material Zinc die-cast, nickel-plated Tightening torque 0.4 Nm Cable 20 m, 4-wire, PUR, halogen-free Jacket material PUR, halogen-free Jacket color Black Cable diameter 5.9 mm Conductor cross section 0.75 mm² Shielding Unshielded Bending radius Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Bending cycles ≥ 2,000,000 Reference voltage ≤ 250 V Current loading 4 A Traversing speed 3 m/s Travelling distance 5 m Acceleration ≤ 5 m/s² Signal type Sensor/actuator cable Application Zones with oils and lubricants Drag chain operation Enclosure rating IP65/ IP67/ IP68 Description Head A: female connector, M12, 4-pin, angled Head B: cable Cable: for voltage supply, suitable for drag chains, PUR , halogen-free, unshielded, 4 x 0.75 mm², Ø 5.9 mm Operating temperature Flexible use –5 °C … +80 °C Stationary position –25 °C … +80 °C Head –25 °C … +90 °C Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604
