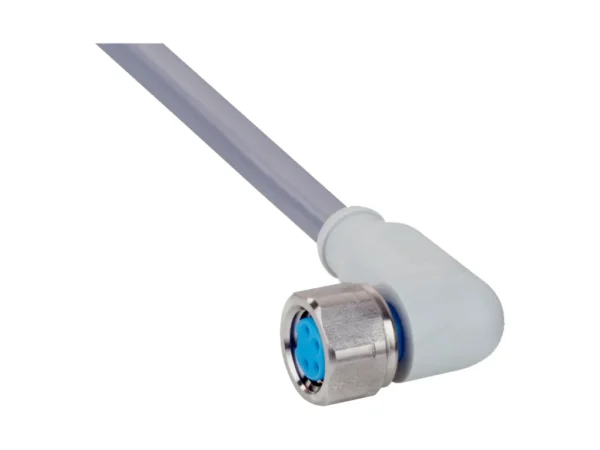

Home Sensör Kabloları DOL-0804-W05MNI – 6059198 🔍 DOL-0804-W05MNI – 6059198 ✉ Teklif Al Teklif Al Stok kodu: 6059198 Kategoriler: Sensör Kabloları Marka: SICK Açıklama Tecnichal data Technical specifications Connection type head A Female connector, M8, 4-pin, angled Connection type head B Flying leads Connection type Flying leads Connector material PUR Connector color Blue Locking nut material Stainless steel (V4A/1.4404) Tightening torque 0.4 Nm Width across flats 10 Cable 5 m, 4-wire, PVC Jacket material PVC Jacket color Gray Cable diameter 4.8 mm Conductor cross section 0.25 mm² Shielding Unshielded Bending radius Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Reference voltage ≤ 30 V Rated impulse voltage 0.8 kV Current loading 4 A Signal type Sensor/actuator cable Application Hygienic and washdown zones Note This product is generally resistant to chemical cleaning agents (see ECOLAB). Please do not use cleaning agents of any other Kind., Not resistant against lactic acid & hydrogen peroxide (H2O2) Authorizations Ecolab UL UL File No. CYJV.E335179 Enclosure rating IP65/ IP67/ IP69K Operating temperature Flexible use –5 °C … +80 °C Stationary position –30 °C … +80 °C Head –25 °C … +85 °C Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604 İlgili ürünler Endüstriyel bağlantı kablosu – 889D-M4WE-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-F4HE-2ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-M4HC-5ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git Endüstriyel bağlantı kablosu – 889D-M4HL-10ALLEN BRADLEYSensör Kabloları ₺650,00 Ürüne Git
Tecnichal data Technical specifications Connection type head A Female connector, M8, 4-pin, angled Connection type head B Flying leads Connection type Flying leads Connector material PUR Connector color Blue Locking nut material Stainless steel (V4A/1.4404) Tightening torque 0.4 Nm Width across flats 10 Cable 5 m, 4-wire, PVC Jacket material PVC Jacket color Gray Cable diameter 4.8 mm Conductor cross section 0.25 mm² Shielding Unshielded Bending radius Flexible use > 10 x cable diameter Stationary position > 5 x cable diameter Reference voltage ≤ 30 V Rated impulse voltage 0.8 kV Current loading 4 A Signal type Sensor/actuator cable Application Hygienic and washdown zones Note This product is generally resistant to chemical cleaning agents (see ECOLAB). Please do not use cleaning agents of any other Kind., Not resistant against lactic acid & hydrogen peroxide (H2O2) Authorizations Ecolab UL UL File No. CYJV.E335179 Enclosure rating IP65/ IP67/ IP69K Operating temperature Flexible use –5 °C … +80 °C Stationary position –30 °C … +80 °C Head –25 °C … +85 °C Classifications ECLASS 5.0 19030312 ECLASS 5.1.4 19030312 ECLASS 6.0 27060304 ECLASS 6.2 27060304 ECLASS 7.0 27060304 ECLASS 8.0 27060304 ECLASS 8.1 27060304 ECLASS 9.0 27060304 ECLASS 10.0 27060304 ECLASS 11.0 27060304 ECLASS 12.0 27060304 ETIM 5.0 EC000830 ETIM 6.0 EC000830 ETIM 7.0 EC003249 ETIM 8.0 EC003249 UNSPSC 16.0901 26121604
