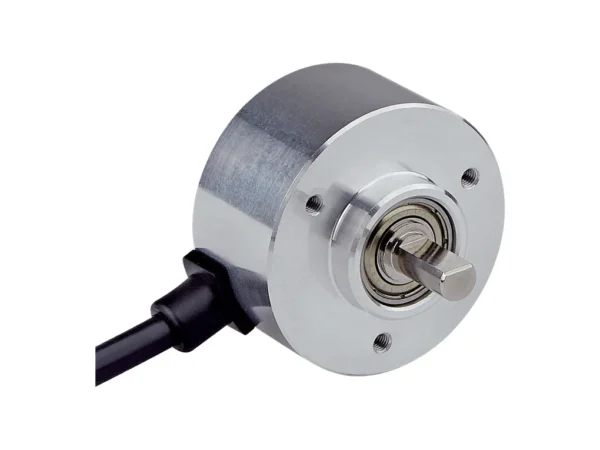

Home Enkoderler DLS40E-S3AZ00S07 – 1128028 🔍 DLS40E-S3AZ00S07 – 1128028 ✉ Teklif Al Teklif Al Stok kodu: 1128028 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Features Special device ✔ Specialty Cable, 8-wire, radial, 3 m Standard reference device DLS40E-S3AV01024, 1109596 Performance Pulses per revolution 1,024 Measuring step 90°, electric/pulses per revolution Duty cycle ≤ 0.5 ± 10 % Interfaces Communication interface Incremental Communication Interface detail TTL / RS-422 Number of signal channels 6-channel Output frequency ≤ 150 kHz Load current ≤ 30 mA Power consumption ≤ 2 W (without load) Electrical data Connection type Cable, 8-wire, radial, 3 m Supply voltage 4.5 … 5.5 V Reference signal, number 1 Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 600 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, face mount flange Shaft diameter 6 mm Shaft length 12 mm Shaft material Stainless steel Flange material Aluminum Housing material Aluminum Material, cable PVC Start up torque 0.3 Ncm Operating torque 0.2 Ncm Permissible shaft loading 40 N (radial) 20 N (axial) Operating speed 6,000 min⁻¹ Maximum operating speed ≤ 8,000 min⁻¹ Moment of inertia of the rotor 2.3 gcm² Bearing lifetime 2.0 x 10^9 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP50 Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –10 °C … +70 °C Storage temperature range –25 °C … +85 °C Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications ECLASS 5.0 27270501 ECLASS 5.1.4 27270501 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270501 ECLASS 8.0 27270501 ECLASS 8.1 27270501 ECLASS 9.0 27270501 ECLASS 10.0 27270501 ECLASS 11.0 27270501 ECLASS 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-SIP13BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 847T-DN1A-RG02000ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1734-SSIALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP2BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Features Special device ✔ Specialty Cable, 8-wire, radial, 3 m Standard reference device DLS40E-S3AV01024, 1109596 Performance Pulses per revolution 1,024 Measuring step 90°, electric/pulses per revolution Duty cycle ≤ 0.5 ± 10 % Interfaces Communication interface Incremental Communication Interface detail TTL / RS-422 Number of signal channels 6-channel Output frequency ≤ 150 kHz Load current ≤ 30 mA Power consumption ≤ 2 W (without load) Electrical data Connection type Cable, 8-wire, radial, 3 m Supply voltage 4.5 … 5.5 V Reference signal, number 1 Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 600 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, face mount flange Shaft diameter 6 mm Shaft length 12 mm Shaft material Stainless steel Flange material Aluminum Housing material Aluminum Material, cable PVC Start up torque 0.3 Ncm Operating torque 0.2 Ncm Permissible shaft loading 40 N (radial) 20 N (axial) Operating speed 6,000 min⁻¹ Maximum operating speed ≤ 8,000 min⁻¹ Moment of inertia of the rotor 2.3 gcm² Bearing lifetime 2.0 x 10^9 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP50 Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –10 °C … +70 °C Storage temperature range –25 °C … +85 °C Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications ECLASS 5.0 27270501 ECLASS 5.1.4 27270501 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270501 ECLASS 8.0 27270501 ECLASS 8.1 27270501 ECLASS 9.0 27270501 ECLASS 10.0 27270501 ECLASS 11.0 27270501 ECLASS 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
