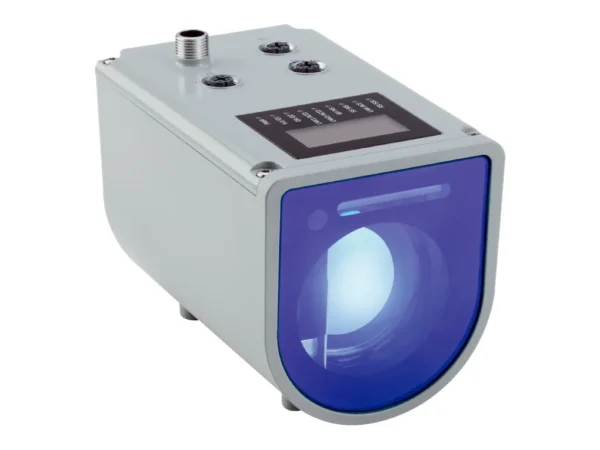

DL1000-S11110 – 1100075

≤ 22 W, With heating switched off

≤ 35 W, With heating switched on

IP65

IP67

1 ms

4 ms

16 ms

Infrared light (905 nm, measuring laser)

Visible red light (650 nm, Adjustment aid)

5 mm x 20 mm (at 1 m) ¹⁰⁾

20 mm x 20 mm (at 5 m) ¹⁰⁾

35 mm x 25 mm (at 10 m) ¹⁰⁾

150 mm x 50 mm (at 50 m) ¹⁰⁾

290 mm x 80 mm (at 100 m) ¹⁰⁾

570 mm x 140 mm (at 200 m) ¹⁰⁾

4,200 mm x 920 mm (≥ 1,500 mm) ¹⁰⁾

Rain and snow filter

Fog filter

Moving average distance value

Kalman filter

Moving average speed value

Internal pull-down circuit
HIGH switching voltage: min. 13 V … max. supply voltage

LOW switching voltage: max. 5 V

Switching functions: deactivate measuring laser, activate alignment laser, preset

–40 °C … +55 °C

–40 °C … +95 °C, operation with cooling case

Shock: 30 g / 6 ms according to DIN EN 60068-2-27 (Ea), 6 axes

Continuous shock: 25 g / 6 ms according to DIN EN 60068-2-27 (fatigue), 500 shocks, 6 axes
