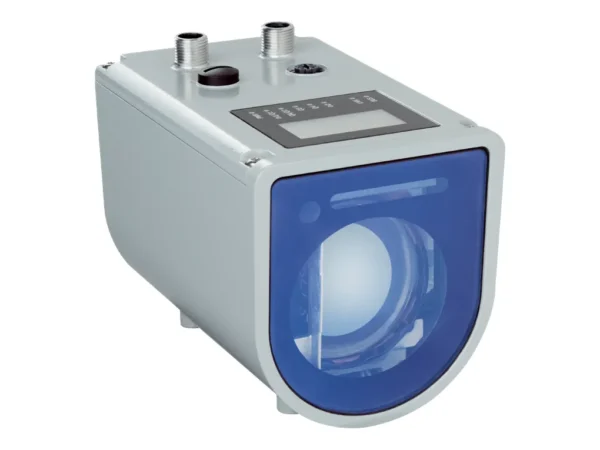

Home Optik Işık Süresi Sensörleri DL1000-S11101 – 1075438 🔍 DL1000-S11101 – 1075438 ✉ Teklif Al Teklif Al Stok kodu: 1075438 Kategoriler: Optik Işık Süresi Sensörleri Marka: SICK Açıklama Tecnichal data Features Measurement principle HDDM+ Mechanics/electronics Supply voltage Vs DC 18 V … 30 V, reverse polarity protected Ripple ≤ 5 Vpp Power consumption ≤ 22 W, With heating switched off ≤ 35 W, With heating switched on Initialization time > 15 s Housing material Metal (Aluminum alloy (AlSi12)) Window material Glass Connection type Round connector M12 x 1 Indication Graphical, resistive touch display, status LEDs Weight 980 g Dimensions (W x H x D) 84 mm x 104.4 mm x 140.5 mm Enclosure rating IP65 IP67 Protection class III (EN 61140) Safety-related parameters MTTFD 101 years DCavg 0% Performance Measurement principle HDDM+ Measurement range min … max: 0.2 m … 1,500 m, on “diamond grade” reflective tape Target Reflector Resolution 0.001 mm … 100 mm, adjustable Repeatability ≥ 1 mm, See repeatability characteristic lines Accuracy Typ. ± 15 mm, See measurement accuracy diagram Response time 3 ms … 384 ms Measurement cycle time 1 ms 4 ms 16 ms Output time ≥ 1 ms Light source Infrared light (905 nm, measuring laser) Visible red light (650 nm, Adjustment aid) Laser class 1, even with simultaneous operation of measurement and alignment laser (IEC 60825-1:2014, EN 60825-1:2014) Typ. light spot size (distance) 5 mm x 20 mm (at 1 m) 10) 20 mm x 20 mm (at 5 m) 10) 35 mm x 25 mm (at 10 m) 10) 150 mm x 50 mm (at 50 m) 10) 290 mm x 80 mm (at 100 m) 10) 4,200 mm x 920 mm (≥ 1,500 mm) 10) Filter Rain and snow filter Fog filter Moving average distance value Kalman filter Moving average speed value Additional function Selection of relevant distance and signal level range, Selection of first or last echo in selected distance and signal level range Average laser service life (at 25 °C) 100,000 h 11) Max. movement speed 128 m/s Interfaces Ethernet ✔ , TCP/IP Function Parameterization, output of measurement data Data transmission rate 10/100 MBit/s Serial ✔ , RS-422 Remark Switchable to SSI Function Parameterization, output of measurement data SSI ✔ Remark Switchable to RS-422 Function Output of measurement data Inputs/outputs In1/Q1 Digital input, digital output (Switchable) QA/Q2 Analog output, digital output (Switchable) Q3 Digital output Q4 Digital output In2 Digital input Digital input Internal pull-down circuitHIGH switching voltage: min. 13 V … max. supply voltage LOW switching voltage: max. 5 V Switching functions: deactivate measuring laser, activate alignment laser, preset Digital output Number 2 … 4 Type Push-pull: PNP/NPN Maximum output current IA ≤ 100 mA Analog output Number 1 Type Current output Current 4 mA … 20 mA Resolution 16 bit Ambient data Ambient temperature, operation –40 °C … +55 °C –40 °C … +95 °C, operation with cooling case Ambient temperature, storage –40 °C … +75 °C Max. rel. humidity (not condensing) ≤ 95 % Effect of air pressure 0.3 ppm/hPa Effect of air temperature –1 ppm/K Temperature drift Typ. 0.25 mm/K Typ. Ambient light immunity ≤ 100,000 lx Mechanical load Shock: 30 g / 6 ms according to DIN EN 60068-2-27 (Ea), 6 axes Continuous shock: 25 g / 6 ms according to DIN EN 60068-2-27 (fatigue), 500 shocks, 6 axes Classifications eCl@ss 5.0 27270801 eCl@ss 5.1.4 27270801 eCl@ss 6.0 27270801 eCl@ss 6.2 27270801 eCl@ss 7.0 27270801 eCl@ss 8.0 27270801 eCl@ss 8.1 27270801 eCl@ss 9.0 27270801 eCl@ss 10.0 27270801 eCl@ss 11.0 27270801 eCl@ss 12.0 27270916 ETIM 5.0 EC001825 ETIM 6.0 EC001825 ETIM 7.0 EC001825 ETIM 8.0 EC001825 UNSPSC 16.0901 41111613 İlgili ürünler DL1000-S11102 – 1075439SICKOptik Işık Süresi Sensörleri ₺6.500,00 Ürüne Git DL100-21HA2213 – 1096494SICKOptik Işık Süresi Sensörleri ₺6.500,00 Ürüne Git DL100-21AA2211 – 1095769SICKOptik Işık Süresi Sensörleri ₺6.500,00 Ürüne Git DL100-23AB2103 – 1060950SICKOptik Işık Süresi Sensörleri ₺6.500,00 Ürüne Git
Tecnichal data Features Measurement principle HDDM+ Mechanics/electronics Supply voltage Vs DC 18 V … 30 V, reverse polarity protected Ripple ≤ 5 Vpp Power consumption ≤ 22 W, With heating switched off ≤ 35 W, With heating switched on Initialization time > 15 s Housing material Metal (Aluminum alloy (AlSi12)) Window material Glass Connection type Round connector M12 x 1 Indication Graphical, resistive touch display, status LEDs Weight 980 g Dimensions (W x H x D) 84 mm x 104.4 mm x 140.5 mm Enclosure rating IP65 IP67 Protection class III (EN 61140) Safety-related parameters MTTFD 101 years DCavg 0% Performance Measurement principle HDDM+ Measurement range min … max: 0.2 m … 1,500 m, on “diamond grade” reflective tape Target Reflector Resolution 0.001 mm … 100 mm, adjustable Repeatability ≥ 1 mm, See repeatability characteristic lines Accuracy Typ. ± 15 mm, See measurement accuracy diagram Response time 3 ms … 384 ms Measurement cycle time 1 ms 4 ms 16 ms Output time ≥ 1 ms Light source Infrared light (905 nm, measuring laser) Visible red light (650 nm, Adjustment aid) Laser class 1, even with simultaneous operation of measurement and alignment laser (IEC 60825-1:2014, EN 60825-1:2014) Typ. light spot size (distance) 5 mm x 20 mm (at 1 m) 10) 20 mm x 20 mm (at 5 m) 10) 35 mm x 25 mm (at 10 m) 10) 150 mm x 50 mm (at 50 m) 10) 290 mm x 80 mm (at 100 m) 10) 4,200 mm x 920 mm (≥ 1,500 mm) 10) Filter Rain and snow filter Fog filter Moving average distance value Kalman filter Moving average speed value Additional function Selection of relevant distance and signal level range, Selection of first or last echo in selected distance and signal level range Average laser service life (at 25 °C) 100,000 h 11) Max. movement speed 128 m/s Interfaces Ethernet ✔ , TCP/IP Function Parameterization, output of measurement data Data transmission rate 10/100 MBit/s Serial ✔ , RS-422 Remark Switchable to SSI Function Parameterization, output of measurement data SSI ✔ Remark Switchable to RS-422 Function Output of measurement data Inputs/outputs In1/Q1 Digital input, digital output (Switchable) QA/Q2 Analog output, digital output (Switchable) Q3 Digital output Q4 Digital output In2 Digital input Digital input Internal pull-down circuitHIGH switching voltage: min. 13 V … max. supply voltage LOW switching voltage: max. 5 V Switching functions: deactivate measuring laser, activate alignment laser, preset Digital output Number 2 … 4 Type Push-pull: PNP/NPN Maximum output current IA ≤ 100 mA Analog output Number 1 Type Current output Current 4 mA … 20 mA Resolution 16 bit Ambient data Ambient temperature, operation –40 °C … +55 °C –40 °C … +95 °C, operation with cooling case Ambient temperature, storage –40 °C … +75 °C Max. rel. humidity (not condensing) ≤ 95 % Effect of air pressure 0.3 ppm/hPa Effect of air temperature –1 ppm/K Temperature drift Typ. 0.25 mm/K Typ. Ambient light immunity ≤ 100,000 lx Mechanical load Shock: 30 g / 6 ms according to DIN EN 60068-2-27 (Ea), 6 axes Continuous shock: 25 g / 6 ms according to DIN EN 60068-2-27 (fatigue), 500 shocks, 6 axes Classifications eCl@ss 5.0 27270801 eCl@ss 5.1.4 27270801 eCl@ss 6.0 27270801 eCl@ss 6.2 27270801 eCl@ss 7.0 27270801 eCl@ss 8.0 27270801 eCl@ss 8.1 27270801 eCl@ss 9.0 27270801 eCl@ss 10.0 27270801 eCl@ss 11.0 27270801 eCl@ss 12.0 27270916 ETIM 5.0 EC001825 ETIM 6.0 EC001825 ETIM 7.0 EC001825 ETIM 8.0 EC001825 UNSPSC 16.0901 41111613
