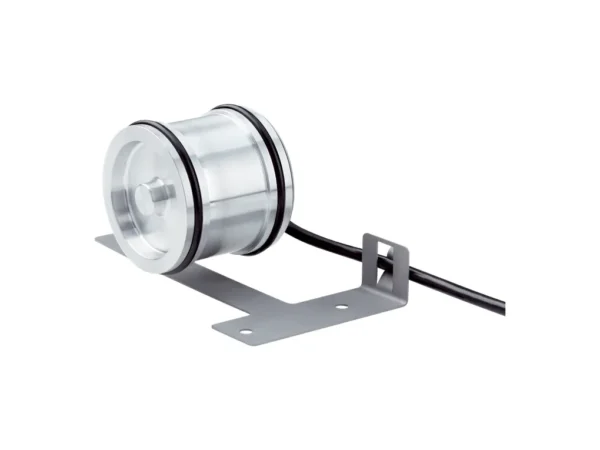

Home Enkoderler DKV60E-22AKA0200 – 1115696 🔍 DKV60E-22AKA0200 – 1115696 ✉ Teklif Al Teklif Al Stok kodu: 1115696 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Pulses per revolution 200 Resolution in pulses/mm 1 Measuring increment (resolution in mm/pulse) 1 Measuring step deviation ± 18°, / pulses per revolution Error limits ± 4 mm/m, subject to the measuring wheel (wheel + surface) Duty cycle ≤ 0.5 ± 5 % Initialization time ≤ 3 ms Interfaces Communication interface Incremental Communication Interface detail TTL / RS-422 Number of signal channels 6-channel Electrical data Operating power consumption (no load) 50 mA Connection type Cable, 8-wire, universal, 1.5 m Supply voltage 4.5 V … 5.5 V Load current max. 30 mA Maximum output frequency ≤ 300 kHz Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 600 years (EN ISO 13849-1) Mechanical data Measuring wheel circumference 200 mm Measuring wheel surface O ring EPDM Spring arm design 69.5 mm spring arm Mass 420 g Encoder material Shaft Stainless steel Flange Aluminum Housing Aluminum Cable PVC Spring arm mechanism material Spring element Spring steel, anti-corrosive Measuring wheel, spring arm Spring steel, anti-corrosive Start up torque 0.9 Ncm (at 20 °C) Operating torque 0.4 Ncm (at 20 °C) Operating speed ≤ 1,000 min⁻¹ Maximum operating speed 1,500 min⁻¹ Bearing lifetime 2 x 10^9 revolutions Maximum travel/deflection of spring arm 8 mm at 14 N spring travel Recommended pretension 8 N at 4 mm deflection Max. permissible working area for the spring (continuous operation) ± 1.5 mm Recommended spring deflection 2 mm … 8 mm Mounted encoder DBS50 Core, DBS50E-SKAKA0200 Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 (class A) Enclosure rating IP65 Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –20 °C … +60 °C –35 °C … +95 °C (on request) Storage temperature range –40 °C … +100 °C, without package Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270790 eCl@ss 11.0 27270707 eCl@ss 12.0 27270504 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-MIP5BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1734-SSIALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP5BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP1BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Pulses per revolution 200 Resolution in pulses/mm 1 Measuring increment (resolution in mm/pulse) 1 Measuring step deviation ± 18°, / pulses per revolution Error limits ± 4 mm/m, subject to the measuring wheel (wheel + surface) Duty cycle ≤ 0.5 ± 5 % Initialization time ≤ 3 ms Interfaces Communication interface Incremental Communication Interface detail TTL / RS-422 Number of signal channels 6-channel Electrical data Operating power consumption (no load) 50 mA Connection type Cable, 8-wire, universal, 1.5 m Supply voltage 4.5 V … 5.5 V Load current max. 30 mA Maximum output frequency ≤ 300 kHz Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 600 years (EN ISO 13849-1) Mechanical data Measuring wheel circumference 200 mm Measuring wheel surface O ring EPDM Spring arm design 69.5 mm spring arm Mass 420 g Encoder material Shaft Stainless steel Flange Aluminum Housing Aluminum Cable PVC Spring arm mechanism material Spring element Spring steel, anti-corrosive Measuring wheel, spring arm Spring steel, anti-corrosive Start up torque 0.9 Ncm (at 20 °C) Operating torque 0.4 Ncm (at 20 °C) Operating speed ≤ 1,000 min⁻¹ Maximum operating speed 1,500 min⁻¹ Bearing lifetime 2 x 10^9 revolutions Maximum travel/deflection of spring arm 8 mm at 14 N spring travel Recommended pretension 8 N at 4 mm deflection Max. permissible working area for the spring (continuous operation) ± 1.5 mm Recommended spring deflection 2 mm … 8 mm Mounted encoder DBS50 Core, DBS50E-SKAKA0200 Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 (class A) Enclosure rating IP65 Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –20 °C … +60 °C –35 °C … +95 °C (on request) Storage temperature range –40 °C … +100 °C, without package Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270790 eCl@ss 11.0 27270707 eCl@ss 12.0 27270504 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
