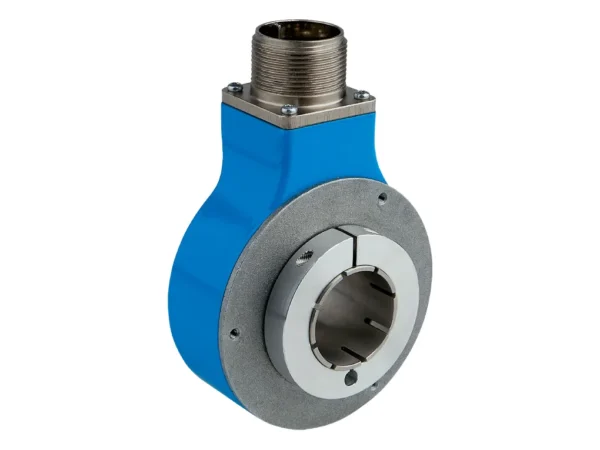

Home Enkoderler DGS80B-TSL404096 INCREMENTAL ENCODER – 1118693 🔍 DGS80B-TSL404096 INCREMENTAL ENCODER – 1118693 ✉ Teklif Al Teklif Al Stok kodu: 1118693 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Pulses per revolution 4,096 Measuring step 90°, electric/pulses per revolution Measuring step deviation ± 15° electrical Duty cycle ≤ 0.5 ± 15 % Interfaces Communication interface Incremental Communication Interface detail HTL / Push pull Number of signal channels 6-channel Initialization time < 50 ms Output frequency ≤ 300 kHz Load current ≤ 40 mA, per channel Operating current ≤ 50 mA (without load) Power consumption ≤ 0.85 W Electrical data Connection type Male connector, MS, 10-pin, radial Supply voltage 4.5 … 30 V DC Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 518 years (EN ISO 13849-1) Mechanical data Mechanical design Through hollow shaft Shaft diameter 30 mm Flange type / stator coupling 1-sided stator coupling with slot available for order as accessory Weight 650 g Shaft material Aluminum Flange material ZAMAC die cast Housing material ZAMAC die cast Shaft sealing ring material FKM70 Start up torque 6 Ncm (+20 °C) Operating torque 5 Ncm (+20 °C) Permissible shaft loading 100 N (radial) 100 N (axial) Operating speed ≤ 3,600 min⁻¹ Moment of inertia of the rotor 408 gcm² Bearing lifetime 10^9 revolutions Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP65 (IEC 60529) Permissible relative humidity 98 % (Condensation not permitted) Operating temperature range –25 °C … +85 °C Storage temperature range –25 °C … +85 °C, without package Resistance to shocks 250 g, 6 ms (EN 60068-2-27) Resistance to vibration 10 g, 5 Hz … 2,000 Hz (EN 60068-2-6) Classifications ECLASS 5.0 27270501 ECLASS 5.1.4 27270501 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270501 ECLASS 8.0 27270501 ECLASS 8.1 27270501 ECLASS 9.0 27270501 ECLASS 10.0 27270501 ECLASS 11.0 27270501 ECLASS 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 1734-SSIALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 847T-DN1A-RG02000ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1734-IKALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1734-IJALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Pulses per revolution 4,096 Measuring step 90°, electric/pulses per revolution Measuring step deviation ± 15° electrical Duty cycle ≤ 0.5 ± 15 % Interfaces Communication interface Incremental Communication Interface detail HTL / Push pull Number of signal channels 6-channel Initialization time < 50 ms Output frequency ≤ 300 kHz Load current ≤ 40 mA, per channel Operating current ≤ 50 mA (without load) Power consumption ≤ 0.85 W Electrical data Connection type Male connector, MS, 10-pin, radial Supply voltage 4.5 … 30 V DC Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 518 years (EN ISO 13849-1) Mechanical data Mechanical design Through hollow shaft Shaft diameter 30 mm Flange type / stator coupling 1-sided stator coupling with slot available for order as accessory Weight 650 g Shaft material Aluminum Flange material ZAMAC die cast Housing material ZAMAC die cast Shaft sealing ring material FKM70 Start up torque 6 Ncm (+20 °C) Operating torque 5 Ncm (+20 °C) Permissible shaft loading 100 N (radial) 100 N (axial) Operating speed ≤ 3,600 min⁻¹ Moment of inertia of the rotor 408 gcm² Bearing lifetime 10^9 revolutions Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP65 (IEC 60529) Permissible relative humidity 98 % (Condensation not permitted) Operating temperature range –25 °C … +85 °C Storage temperature range –25 °C … +85 °C, without package Resistance to shocks 250 g, 6 ms (EN 60068-2-27) Resistance to vibration 10 g, 5 Hz … 2,000 Hz (EN 60068-2-6) Classifications ECLASS 5.0 27270501 ECLASS 5.1.4 27270501 ECLASS 6.0 27270590 ECLASS 6.2 27270590 ECLASS 7.0 27270501 ECLASS 8.0 27270501 ECLASS 8.1 27270501 ECLASS 9.0 27270501 ECLASS 10.0 27270501 ECLASS 11.0 27270501 ECLASS 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
