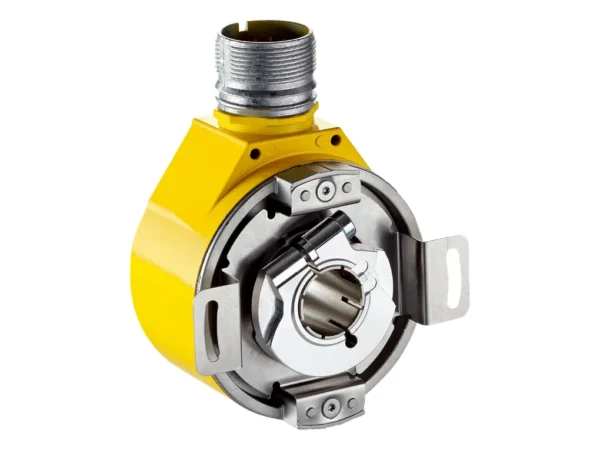

Home Enkoderler DFS60S-BFOA01024 – 1095901 🔍 DFS60S-BFOA01024 – 1095901 ✉ Teklif Al Teklif Al Stok kodu: 1095901 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Safety-related parameters Safety integrity level SIL 2 (IEC 61508), SILCL2 (IEC 62061) Performance level PL d (EN ISO 13849) Category 3 (EN ISO 13849) PFHD: Probability of dangerous failure per hour 1.7 x 10-8 TM (mission time) 20 years (EN ISO 13849) Safety-related measuring step 0.09°, Quadrature analysis Safety-related accuracy ± 0.09° Performance Sine/cosine periods per revolution 1,024 Measuring step 0.3 ″, For interpolation of the sine/cosine signals with e.g. 12 bit Integral non-linearity Typ. ± 45 ″ (without mechanical tension of the stator coupling) Differential non-linearity ± 7 ″ Interfaces Communication interface Incremental Communication Interface detail Sin/Cos Initialization time 50 ms Output frequency ≤ 153.6 kHz Power consumption ≤ 0.7 W (without load) Load resistance ≥ 120 Ω Electrical data Connection type Male connector, M23, 12-pin, radial Supply voltage 4.5 … 32 V Reference signal, number 1 Reference signal, position 90°, electronically, gated with Sinus and Cosinus Reverse polarity protection ✔ Protection class III (according to DIN EN 61140) Short-circuit protection of the outputs ✔ Mechanical data Mechanical design Blind hollow shaft Shaft diameter 1/2″With feather key Weight Approx. 0.25 kg Shaft material Stainless steel Flange material Die-cast zinc Housing material Aluminum die cast Start up torque ≤ 0.8 Ncm (+20 °C) Operating torque ≤ 0.6 Ncm (+20 °C) Permissible movement static ± 0.3 mm (radial) ± 0.5 mm (axial) Permissible movement dynamic ± 0.05 mm (radial) ± 0.1 mm (axial) Operating speed ≤ 6,000 min⁻¹ Moment of inertia of the rotor 56 gcm² Bearing lifetime 3.6 x 109 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2, EN 61000-6-3 and IEC 61326-3-1 Enclosure rating IP65 (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –30 °C … +95 °C Storage temperature range –30 °C … +85 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 10 g, 10 Hz … 1,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270501 eCl@ss 11.0 27270501 eCl@ss 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-SIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP10BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP13BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP7BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Safety-related parameters Safety integrity level SIL 2 (IEC 61508), SILCL2 (IEC 62061) Performance level PL d (EN ISO 13849) Category 3 (EN ISO 13849) PFHD: Probability of dangerous failure per hour 1.7 x 10-8 TM (mission time) 20 years (EN ISO 13849) Safety-related measuring step 0.09°, Quadrature analysis Safety-related accuracy ± 0.09° Performance Sine/cosine periods per revolution 1,024 Measuring step 0.3 ″, For interpolation of the sine/cosine signals with e.g. 12 bit Integral non-linearity Typ. ± 45 ″ (without mechanical tension of the stator coupling) Differential non-linearity ± 7 ″ Interfaces Communication interface Incremental Communication Interface detail Sin/Cos Initialization time 50 ms Output frequency ≤ 153.6 kHz Power consumption ≤ 0.7 W (without load) Load resistance ≥ 120 Ω Electrical data Connection type Male connector, M23, 12-pin, radial Supply voltage 4.5 … 32 V Reference signal, number 1 Reference signal, position 90°, electronically, gated with Sinus and Cosinus Reverse polarity protection ✔ Protection class III (according to DIN EN 61140) Short-circuit protection of the outputs ✔ Mechanical data Mechanical design Blind hollow shaft Shaft diameter 1/2″With feather key Weight Approx. 0.25 kg Shaft material Stainless steel Flange material Die-cast zinc Housing material Aluminum die cast Start up torque ≤ 0.8 Ncm (+20 °C) Operating torque ≤ 0.6 Ncm (+20 °C) Permissible movement static ± 0.3 mm (radial) ± 0.5 mm (axial) Permissible movement dynamic ± 0.05 mm (radial) ± 0.1 mm (axial) Operating speed ≤ 6,000 min⁻¹ Moment of inertia of the rotor 56 gcm² Bearing lifetime 3.6 x 109 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2, EN 61000-6-3 and IEC 61326-3-1 Enclosure rating IP65 (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –30 °C … +95 °C Storage temperature range –30 °C … +85 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 10 g, 10 Hz … 1,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270501 eCl@ss 11.0 27270501 eCl@ss 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
