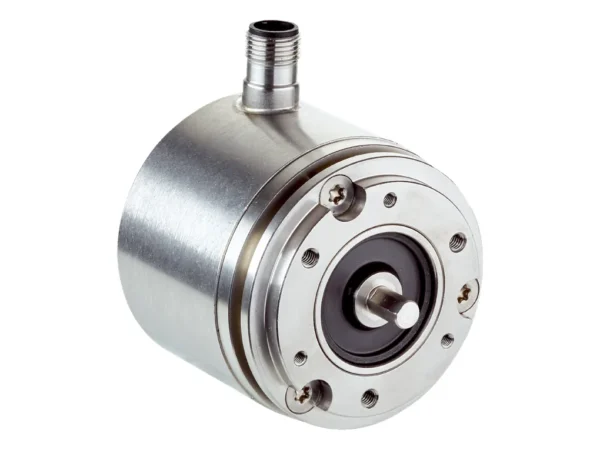

Home Enkoderler DFS60I-S1WC00512 – 1106240 🔍 DFS60I-S1WC00512 – 1106240 ✉ Teklif Al Teklif Al Stok kodu: 1106240 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Pulses per revolution 512 Measuring step 90°, electric/pulses per revolution Measuring step deviation at binary number of lines ± 0.008° Error limits ± 0.03° Interfaces Communication interface Incremental Communication Interface detail HTL / Push pull Number of signal channels 6-channel 0-set function via hardware pin ✔ 0-SET function H-active, L ≡ 0 – 3 V, H ≡ 4.0 – Us V Initialization time 30 ms Output frequency ≤ 820 kHz Load current ≤ 30 mA Operating current 40 mA (without load) Power consumption ≤ 0.7 W (without load) Load resistance ≥ 120 Ω Electrical data Connection type Male connector, M12, 12-pin, radial Supply voltage 4.5 … 32 V Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 300 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, Servo flange Shaft diameter 6 mm Shaft length 10 mm Weight + 0.5 kg Shaft material Stainless steel V2A Flange material Stainless steel V2A Housing material Stainless steel V2A Start up torque 1 Ncm (+20 °C) Operating torque 0.5 Ncm (+20 °C) Permissible shaft loading 80 N (radial) 40 N (axial) Operating speed ≤ 9,000 min⁻¹ Moment of inertia of the rotor 6.2 gcm² Bearing lifetime 3.6 x 10^10 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67, housing side (IEC 60529) IP67, shaft side (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –40 °C … +100 °C –30 °C … +100 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 10 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270501 eCl@ss 11.0 27270501 eCl@ss 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 847T-DN1A-RG02000ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP13BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP7BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Pulses per revolution 512 Measuring step 90°, electric/pulses per revolution Measuring step deviation at binary number of lines ± 0.008° Error limits ± 0.03° Interfaces Communication interface Incremental Communication Interface detail HTL / Push pull Number of signal channels 6-channel 0-set function via hardware pin ✔ 0-SET function H-active, L ≡ 0 – 3 V, H ≡ 4.0 – Us V Initialization time 30 ms Output frequency ≤ 820 kHz Load current ≤ 30 mA Operating current 40 mA (without load) Power consumption ≤ 0.7 W (without load) Load resistance ≥ 120 Ω Electrical data Connection type Male connector, M12, 12-pin, radial Supply voltage 4.5 … 32 V Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 300 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, Servo flange Shaft diameter 6 mm Shaft length 10 mm Weight + 0.5 kg Shaft material Stainless steel V2A Flange material Stainless steel V2A Housing material Stainless steel V2A Start up torque 1 Ncm (+20 °C) Operating torque 0.5 Ncm (+20 °C) Permissible shaft loading 80 N (radial) 40 N (axial) Operating speed ≤ 9,000 min⁻¹ Moment of inertia of the rotor 6.2 gcm² Bearing lifetime 3.6 x 10^10 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67, housing side (IEC 60529) IP67, shaft side (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –40 °C … +100 °C –30 °C … +100 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 10 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270501 eCl@ss 11.0 27270501 eCl@ss 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
