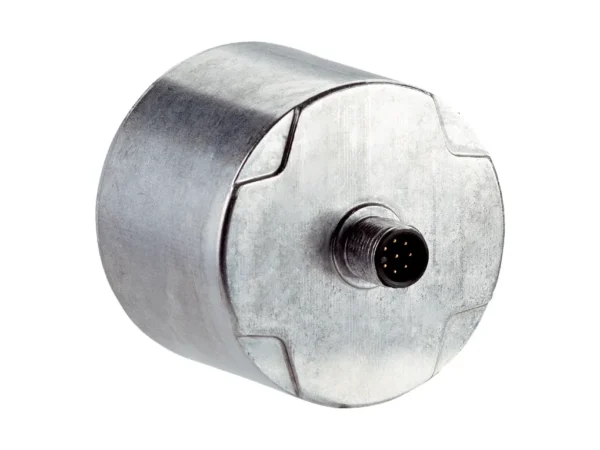

Home Enkoderler DFS60E-S4CD00360 – 1114599 🔍 DFS60E-S4CD00360 – 1114599 ✉ Teklif Al Teklif Al Stok kodu: 1114599 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Pulses per revolution 360 Measuring step 90°, electric/pulses per revolution Measuring step deviation at non binary number of lines ± 0.2° Error limits ± 0.3° Interfaces Communication interface Incremental Communication Interface detail TTL / RS-422 Number of signal channels 6-channel Initialization time 40 ms Output frequency ≤ 300 kHz Load current ≤ 30 mA Power consumption ≤ 0.5 W (without load) Electrical data Connection type Male connector, M12, 8-pin, axial Supply voltage 10 … 32 V Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 300 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, face mount flange Shaft diameter 10 mm Shaft length 19 mm Weight + 0.3 kg Shaft material Stainless steel Flange material Aluminum Housing material Aluminum die cast Start up torque 0.5 Ncm (+20 °C) Operating torque 0.3 Ncm (+20 °C) Permissible shaft loading 80 N (radial) 40 N (axial) Operating speed ≤ 9,000 min⁻¹ Moment of inertia of the rotor 6.2 gcm² Bearing lifetime 3.6 x 10^10 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-4 Enclosure rating IP67, Housing side, male connector (IEC 60529) IP65, shaft side (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range 0 °C … +85 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 50 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270501 eCl@ss 11.0 27270501 eCl@ss 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 847T-DL1A-RG02000ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP1BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP13BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP3BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Pulses per revolution 360 Measuring step 90°, electric/pulses per revolution Measuring step deviation at non binary number of lines ± 0.2° Error limits ± 0.3° Interfaces Communication interface Incremental Communication Interface detail TTL / RS-422 Number of signal channels 6-channel Initialization time 40 ms Output frequency ≤ 300 kHz Load current ≤ 30 mA Power consumption ≤ 0.5 W (without load) Electrical data Connection type Male connector, M12, 8-pin, axial Supply voltage 10 … 32 V Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 300 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, face mount flange Shaft diameter 10 mm Shaft length 19 mm Weight + 0.3 kg Shaft material Stainless steel Flange material Aluminum Housing material Aluminum die cast Start up torque 0.5 Ncm (+20 °C) Operating torque 0.3 Ncm (+20 °C) Permissible shaft loading 80 N (radial) 40 N (axial) Operating speed ≤ 9,000 min⁻¹ Moment of inertia of the rotor 6.2 gcm² Bearing lifetime 3.6 x 10^10 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-4 Enclosure rating IP67, Housing side, male connector (IEC 60529) IP65, shaft side (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range 0 °C … +85 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 50 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270501 eCl@ss 11.0 27270501 eCl@ss 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
