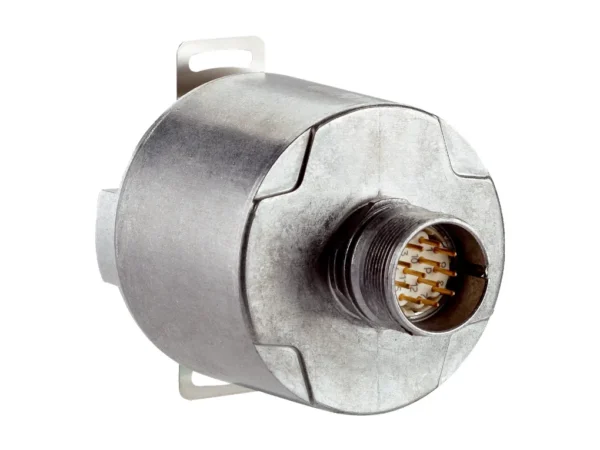

Home Enkoderler DFS60A-BHWB65536 – 1106169 🔍 DFS60A-BHWB65536 – 1106169 ✉ Teklif Al Teklif Al Stok kodu: 1106169 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Pulses per revolution 65,536 Measuring step 90°, electric/pulses per revolution Measuring step deviation at binary number of lines ± 0.0015° Error limits ± 0.03° Interfaces Communication interface Incremental Communication Interface detail HTL / Push pull Number of signal channels 6-channel 0-set function via hardware pin ✔ 0-SET function H-active, L = 0 – 3 V, H = 4,0 – Us V Initialization time 30 ms Output frequency ≤ 820 kHz Load current ≤ 30 mA Power consumption ≤ 0.7 W (without load) Electrical data Connection type Male connector, M23, 12-pin, axial Supply voltage 4.5 … 32 V Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 300 years (EN ISO 13849-1) Mechanical data Mechanical design Blind hollow shaft Shaft diameter 15 mm Weight + 0.2 kg Shaft material Stainless steel Flange material Aluminum Housing material Aluminum die cast Start up torque 0.8 Ncm (+20 °C) Operating torque 0.6 Ncm (+20 °C) Permissible movement static ± 0.3 mm (radial) ± 0.5 mm (axial) Permissible movement dynamic ± 0.05 mm (radial) ± 0.01 mm (axial) Operating speed ≤ 6,000 min⁻¹ Moment of inertia of the rotor 40 gcm² Bearing lifetime 3.6 x 10^10 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67, Housing side, male connector (IEC 60529) IP65, shaft side (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –40 °C … +100 °C –30 °C … +100 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 30 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270501 eCl@ss 11.0 27270501 eCl@ss 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-SIP6BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP12BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP4BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1734-SSIALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Pulses per revolution 65,536 Measuring step 90°, electric/pulses per revolution Measuring step deviation at binary number of lines ± 0.0015° Error limits ± 0.03° Interfaces Communication interface Incremental Communication Interface detail HTL / Push pull Number of signal channels 6-channel 0-set function via hardware pin ✔ 0-SET function H-active, L = 0 – 3 V, H = 4,0 – Us V Initialization time 30 ms Output frequency ≤ 820 kHz Load current ≤ 30 mA Power consumption ≤ 0.7 W (without load) Electrical data Connection type Male connector, M23, 12-pin, axial Supply voltage 4.5 … 32 V Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 300 years (EN ISO 13849-1) Mechanical data Mechanical design Blind hollow shaft Shaft diameter 15 mm Weight + 0.2 kg Shaft material Stainless steel Flange material Aluminum Housing material Aluminum die cast Start up torque 0.8 Ncm (+20 °C) Operating torque 0.6 Ncm (+20 °C) Permissible movement static ± 0.3 mm (radial) ± 0.5 mm (axial) Permissible movement dynamic ± 0.05 mm (radial) ± 0.01 mm (axial) Operating speed ≤ 6,000 min⁻¹ Moment of inertia of the rotor 40 gcm² Bearing lifetime 3.6 x 10^10 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67, Housing side, male connector (IEC 60529) IP65, shaft side (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –40 °C … +100 °C –30 °C … +100 °C Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 30 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270501 eCl@ss 11.0 27270501 eCl@ss 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
