Tecnichal data
| Rated current In | 8 A |
| Rated voltage | 250 V |
| Diameter connector | 27 mm |
| Operating temperature | -25 ðC |
| Assembly rating | Mini: 250V, 8 A |
| Enclosure type rating | NEMA 1, 2, 3, 4, 6P, 12, 13, IP67, 1200 psi (8720 kPa) washdown |
| Material | Coupling nut: Epoxy-coated Zinc, contact: Gold-plated Brass |
| With protective conductor | Yes |
| Degree of protection (IP), mounted | IP67 |
| Type of housing | Straight |
| Length | 61.8 mm |
| Product type feature | Stainless Steel hardware |

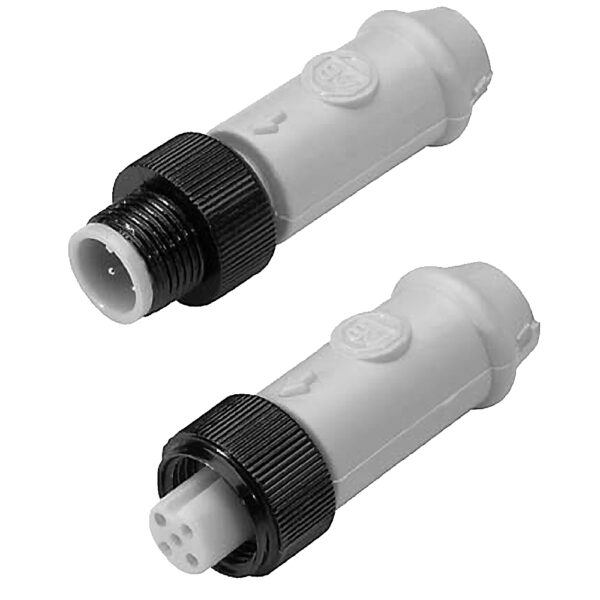

| Product type | Terminator, mini male |
| Contact type | Pin |
| Material of contact surface | Gold |
