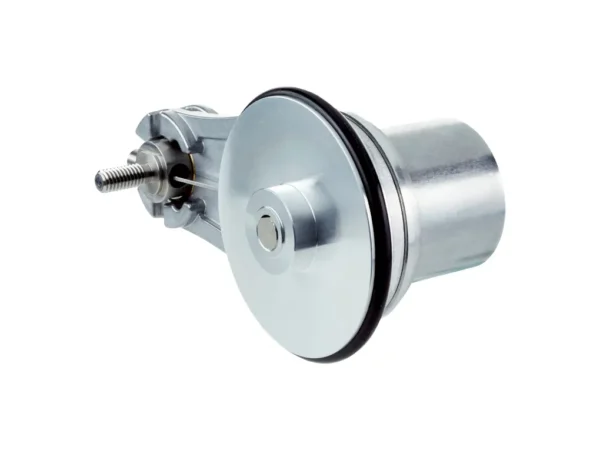

Home Enkoderler DBV50E-22EKB0200 – 1097189 🔍 DBV50E-22EKB0200 – 1097189 ✉ Teklif Al Teklif Al Stok kodu: 1097189 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Pulses per revolution 200 Resolution in pulses/mm 1 Measuring increment (resolution in mm/pulse) 1 Measuring step deviation ± 18° / pulses per revolution Error limits ± 4 mm/m, subject to the measuring wheel (wheel + surface) Duty cycle ≤ 0.5 ± 5 % Initialization time < 3 ms Interfaces Communication interface Incremental Communication Interface detail HTL / Push pull Number of signal channels 6-channel Electrical data Operating power consumption (no load) 50 mA Connection type Cable, 8-wire, universal, 1.5 m Power consumption max. without load ≤ 0.5 W Supply voltage 7 V … 30 V Load current max. 30 mA Maximum output frequency ≤ 300 kHz Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 600 years (EN ISO 13849-1) Mechanical data Measuring wheel circumference 200 mm Measuring wheel surface O-ring NBR70 Spring arm design 63.5 mm spring arm, wheel on mounting side (right), single wheel Mass + 300 g Encoder material Shaft Stainless steel Flange Aluminum Housing Aluminum Cable PVC Spring arm mechanism material Spring element Spring steel, anti-corrosive Measuring wheel, spring arm Aluminum Start up torque 0.9 Ncm (at 20 °C) Operating torque 0.6 Ncm (at 20 °C) Operating speed 1,500 min⁻¹ Maximum operating speed 3,000 min⁻¹ Bearing lifetime 2.0 x 10^9 revolutions Maximum travel/deflection of spring arm 14 mm at 14 N spring travel Recommended pretension 15 N At 10 mm deflection Max. permissible working area for the spring (continuous operation) ± 3 mm Recommended spring deflection 2 mm … 13 mm Service life of spring element > 1.4 million cycles Mounting position relative to the measuring object Preferably from above, from below possible Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 (class A) Enclosure rating IP65 Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –20 °C … +85 °C –35 °C … +95 °C (on request) Storage temperature range –40 °C … +100 °C, without package Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270790 eCl@ss 11.0 27270707 eCl@ss 12.0 27270504 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-MIP5BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP4BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP1BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP12BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Pulses per revolution 200 Resolution in pulses/mm 1 Measuring increment (resolution in mm/pulse) 1 Measuring step deviation ± 18° / pulses per revolution Error limits ± 4 mm/m, subject to the measuring wheel (wheel + surface) Duty cycle ≤ 0.5 ± 5 % Initialization time < 3 ms Interfaces Communication interface Incremental Communication Interface detail HTL / Push pull Number of signal channels 6-channel Electrical data Operating power consumption (no load) 50 mA Connection type Cable, 8-wire, universal, 1.5 m Power consumption max. without load ≤ 0.5 W Supply voltage 7 V … 30 V Load current max. 30 mA Maximum output frequency ≤ 300 kHz Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 600 years (EN ISO 13849-1) Mechanical data Measuring wheel circumference 200 mm Measuring wheel surface O-ring NBR70 Spring arm design 63.5 mm spring arm, wheel on mounting side (right), single wheel Mass + 300 g Encoder material Shaft Stainless steel Flange Aluminum Housing Aluminum Cable PVC Spring arm mechanism material Spring element Spring steel, anti-corrosive Measuring wheel, spring arm Aluminum Start up torque 0.9 Ncm (at 20 °C) Operating torque 0.6 Ncm (at 20 °C) Operating speed 1,500 min⁻¹ Maximum operating speed 3,000 min⁻¹ Bearing lifetime 2.0 x 10^9 revolutions Maximum travel/deflection of spring arm 14 mm at 14 N spring travel Recommended pretension 15 N At 10 mm deflection Max. permissible working area for the spring (continuous operation) ± 3 mm Recommended spring deflection 2 mm … 13 mm Service life of spring element > 1.4 million cycles Mounting position relative to the measuring object Preferably from above, from below possible Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 (class A) Enclosure rating IP65 Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –20 °C … +85 °C –35 °C … +95 °C (on request) Storage temperature range –40 °C … +100 °C, without package Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270790 eCl@ss 11.0 27270707 eCl@ss 12.0 27270504 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
