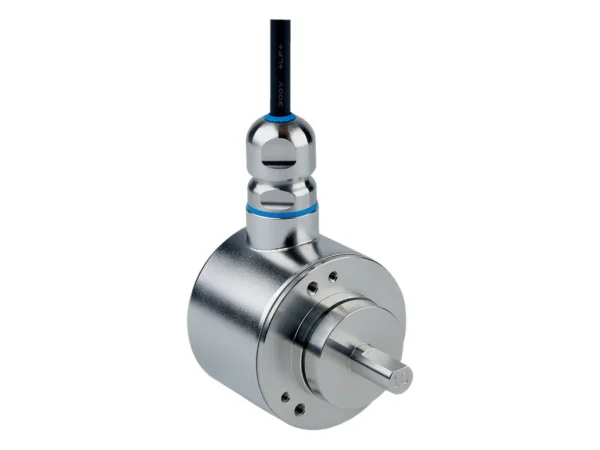

Home Enkoderler DBS60I-W4FN01024 INCR. WASHDOWN ENCODER – 1116968 🔍 DBS60I-W4FN01024 INCR. WASHDOWN ENCODER – 1116968 ✉ Teklif Al Teklif Al Stok kodu: 1116968 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Pulses per revolution 1,024 Measuring step 90°, electric/pulses per revolution Measuring step deviation ± 18° / pulses per revolution Error limits Measuring step deviation x 3 Duty cycle ≤ 0.5 ± 5 % Interfaces Communication interface Incremental Communication Interface detail TTL / HTL Number of signal channels 6-channel Initialization time < 5 ms Output frequency ≤ 300 kHz Load current ≤ 30 mA, per channel Power consumption ≤ 0.5 W (without load) Electrical data Connection type Cable, 8-wire, radial, 10 m Supply voltage 4.5 … 30 V Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 500 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, face mount flange Shaft diameter 10 mm Shaft length 19 mm Flange type / stator coupling Flange with 3 x M3 and 3 x M4 Weight 0.7 kg (DBS60I-W*) Shaft material Stainless steel V4A (316L) Flange material Stainless steel V4A (316L) Housing material Stainless steel V4A (316L) Material, cable TPU Shaft sealing ring material FKM80 Material, cable gland Stainless steel V4A (316L) Start up torque 1 Ncm (+20 °C) Operating torque 0.9 Ncm (+20 °C) Permissible shaft loading 80 N (radial) 40 N (axial) Operating speed ≤ 6,000 min⁻¹ Moment of inertia of the rotor 45 gcm² Bearing lifetime 3.6 x 109 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP69K (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –30 °C … +100 °C, at maximum 3,000 pulses per revolution Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 30 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270501 eCl@ss 11.0 27270501 eCl@ss 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 847T-DL1A-RG02000ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP13BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP6BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP13BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Pulses per revolution 1,024 Measuring step 90°, electric/pulses per revolution Measuring step deviation ± 18° / pulses per revolution Error limits Measuring step deviation x 3 Duty cycle ≤ 0.5 ± 5 % Interfaces Communication interface Incremental Communication Interface detail TTL / HTL Number of signal channels 6-channel Initialization time < 5 ms Output frequency ≤ 300 kHz Load current ≤ 30 mA, per channel Power consumption ≤ 0.5 W (without load) Electrical data Connection type Cable, 8-wire, radial, 10 m Supply voltage 4.5 … 30 V Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 500 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, face mount flange Shaft diameter 10 mm Shaft length 19 mm Flange type / stator coupling Flange with 3 x M3 and 3 x M4 Weight 0.7 kg (DBS60I-W*) Shaft material Stainless steel V4A (316L) Flange material Stainless steel V4A (316L) Housing material Stainless steel V4A (316L) Material, cable TPU Shaft sealing ring material FKM80 Material, cable gland Stainless steel V4A (316L) Start up torque 1 Ncm (+20 °C) Operating torque 0.9 Ncm (+20 °C) Permissible shaft loading 80 N (radial) 40 N (axial) Operating speed ≤ 6,000 min⁻¹ Moment of inertia of the rotor 45 gcm² Bearing lifetime 3.6 x 109 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP69K (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –30 °C … +100 °C, at maximum 3,000 pulses per revolution Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 30 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270501 eCl@ss 11.0 27270501 eCl@ss 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
