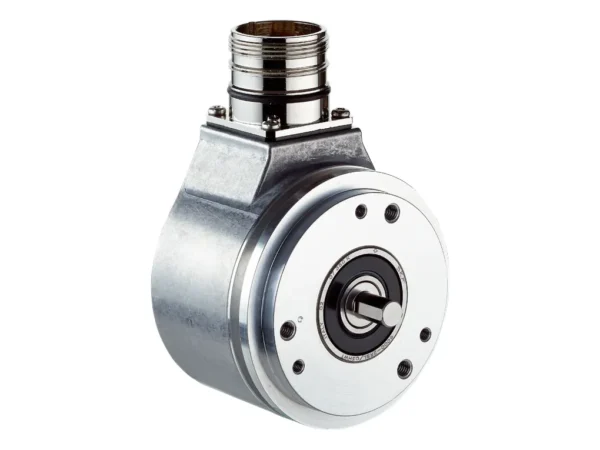

Home Enkoderler DBS60E-S1CA02000 – 1072123 🔍 DBS60E-S1CA02000 – 1072123 ✉ Teklif Al Teklif Al Stok kodu: 1072123 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Pulses per revolution 2,000 Measuring step ≤ 90°, electric/pulses per revolution Measuring step deviation ± 18° / pulses per revolution Error limits Measuring step deviation x 3 Duty cycle ≤ 0.5 ± 5 % Interfaces Communication interface Incremental Communication Interface detail TTL / RS-422 Number of signal channels 6-channel Initialization time < 5 ms Output frequency + 300 kHz Load current ≤ 30 mA, per channel Power consumption ≤ 0.5 W (without load) Electrical data Connection type Male connector, M23, 12-pin, radial Supply voltage 10 … 30 V Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 500 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, Servo flange Shaft diameter 6 mm Shaft length 10 mm Flange type / stator coupling Flange with 3 x M3 and 3 x M4 Weight + 0.3 kg Shaft material Stainless steel Flange material Aluminum Housing material Aluminum Start up torque + 1.2 Ncm (+20 °C) Operating torque 1.1 Ncm (+20 °C) Permissible shaft loading 100 N (radial) 50 N (axial) Operating speed 6,000 min⁻¹ Maximum operating speed 9,000 min⁻¹ Moment of inertia of the rotor 33 gcm² Bearing lifetime 3.6 x 109 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67, housing side (IEC 60529) IP65, shaft side (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –30 °C … +100 °C, at maximum 3,000 pulses per revolution Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 250 g, 3 ms (EN 60068-2-27) Resistance to vibration 30 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270501 eCl@ss 11.0 27270501 eCl@ss 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 842E-CM-SIP14BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-SIP1BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP13BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP5BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Pulses per revolution 2,000 Measuring step ≤ 90°, electric/pulses per revolution Measuring step deviation ± 18° / pulses per revolution Error limits Measuring step deviation x 3 Duty cycle ≤ 0.5 ± 5 % Interfaces Communication interface Incremental Communication Interface detail TTL / RS-422 Number of signal channels 6-channel Initialization time < 5 ms Output frequency + 300 kHz Load current ≤ 30 mA, per channel Power consumption ≤ 0.5 W (without load) Electrical data Connection type Male connector, M23, 12-pin, radial Supply voltage 10 … 30 V Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 500 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, Servo flange Shaft diameter 6 mm Shaft length 10 mm Flange type / stator coupling Flange with 3 x M3 and 3 x M4 Weight + 0.3 kg Shaft material Stainless steel Flange material Aluminum Housing material Aluminum Start up torque + 1.2 Ncm (+20 °C) Operating torque 1.1 Ncm (+20 °C) Permissible shaft loading 100 N (radial) 50 N (axial) Operating speed 6,000 min⁻¹ Maximum operating speed 9,000 min⁻¹ Moment of inertia of the rotor 33 gcm² Bearing lifetime 3.6 x 109 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 Enclosure rating IP67, housing side (IEC 60529) IP65, shaft side (IEC 60529) Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –30 °C … +100 °C, at maximum 3,000 pulses per revolution Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 250 g, 3 ms (EN 60068-2-27) Resistance to vibration 30 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270501 eCl@ss 11.0 27270501 eCl@ss 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
