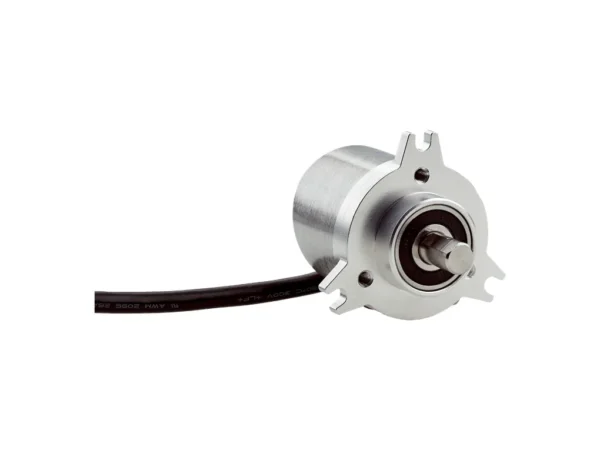

Home Enkoderler DBS50E-SKRM02048 – 1119587 🔍 DBS50E-SKRM02048 – 1119587 ✉ Teklif Al Teklif Al Stok kodu: 1119587 Kategoriler: Enkoderler Marka: SICK Açıklama Tecnichal data Performance Pulses per revolution 2,048 Measuring step 90°, electric/pulses per revolution Measuring step deviation ± 18° / pulses per revolution Error limits ± 54° / pulses per revolution Duty cycle ≤ 0.5 ± 5 % Interfaces Communication interface Incremental Communication Interface detail Open Collector Number of signal channels 3 channel Initialization time < 3 ms Output frequency ≤ 300 kHz Load current ≤ 30 mA Power consumption < 0.5 W (without load) Electrical data Connection type Cable, 5-wire, universal, 5 m Supply voltage 4.5 … 30 V Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 600 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, face mount flange 3xM4 Shaft diameter 8 mm Shaft length 13 mm Weight + 180 g (with connecting cable) Shaft material Stainless steel Flange material Aluminum Housing material Aluminum Material, cable PVC Start up torque + 0.9 Ncm (+20 °C) Operating torque 0.6 Ncm (+20 °C) Permissible shaft loading 30 N (axial) 50 N (radial) Operating speed 6,000 min⁻¹ Maximum operating speed 8,000 min⁻¹ Moment of inertia of the rotor 0.65 gcm² Bearing lifetime 2 x 10^9 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 (class A) Enclosure rating IP65 Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –20 °C … +85 °C, –35 °C … +95 °C on request Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270501 eCl@ss 11.0 27270501 eCl@ss 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113 İlgili ürünler Enkoder – 847T-DN1A-RG02000ALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP13BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 1746-HSCEALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git Enkoder – 842E-CM-MIP4BAALLEN BRADLEYEnkoderler ₺6.500,00 Ürüne Git
Tecnichal data Performance Pulses per revolution 2,048 Measuring step 90°, electric/pulses per revolution Measuring step deviation ± 18° / pulses per revolution Error limits ± 54° / pulses per revolution Duty cycle ≤ 0.5 ± 5 % Interfaces Communication interface Incremental Communication Interface detail Open Collector Number of signal channels 3 channel Initialization time < 3 ms Output frequency ≤ 300 kHz Load current ≤ 30 mA Power consumption < 0.5 W (without load) Electrical data Connection type Cable, 5-wire, universal, 5 m Supply voltage 4.5 … 30 V Reference signal, number 1 Reference signal, position 90°, electric, logically gated with A and B Reverse polarity protection ✔ Short-circuit protection of the outputs ✔ MTTFd: mean time to dangerous failure 600 years (EN ISO 13849-1) Mechanical data Mechanical design Solid shaft, face mount flange 3xM4 Shaft diameter 8 mm Shaft length 13 mm Weight + 180 g (with connecting cable) Shaft material Stainless steel Flange material Aluminum Housing material Aluminum Material, cable PVC Start up torque + 0.9 Ncm (+20 °C) Operating torque 0.6 Ncm (+20 °C) Permissible shaft loading 30 N (axial) 50 N (radial) Operating speed 6,000 min⁻¹ Maximum operating speed 8,000 min⁻¹ Moment of inertia of the rotor 0.65 gcm² Bearing lifetime 2 x 10^9 revolutions Angular acceleration ≤ 500,000 rad/s² Ambient data EMC According to EN 61000-6-2 and EN 61000-6-3 (class A) Enclosure rating IP65 Permissible relative humidity 90 % (Condensation not permitted) Operating temperature range –20 °C … +85 °C, –35 °C … +95 °C on request Storage temperature range –40 °C … +100 °C, without package Resistance to shocks 100 g, 6 ms (EN 60068-2-27) Resistance to vibration 20 g, 10 Hz … 2,000 Hz (EN 60068-2-6) Classifications eCl@ss 5.0 27270501 eCl@ss 5.1.4 27270501 eCl@ss 6.0 27270590 eCl@ss 6.2 27270590 eCl@ss 7.0 27270501 eCl@ss 8.0 27270501 eCl@ss 8.1 27270501 eCl@ss 9.0 27270501 eCl@ss 10.0 27270501 eCl@ss 11.0 27270501 eCl@ss 12.0 27270501 ETIM 5.0 EC001486 ETIM 6.0 EC001486 ETIM 7.0 EC001486 ETIM 8.0 EC001486 UNSPSC 16.0901 41112113
