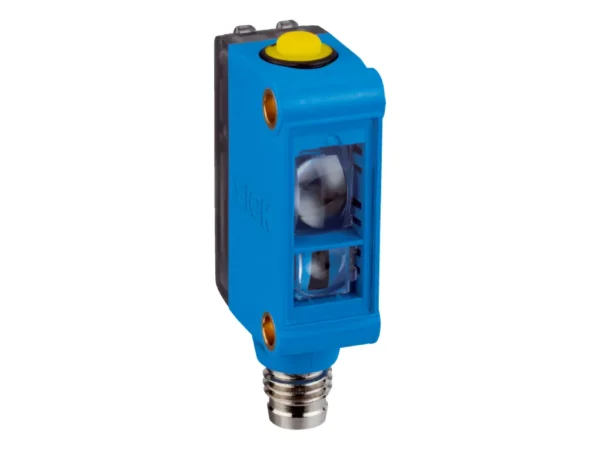

Home Fotoelektrik Sensörler CSM-WP1B1C1P – 1122736 🔍 CSM-WP1B1C1P – 1122736 ✉ Teklif Al Teklif Al Stok kodu: 1122736 Kategoriler: Fotoelektrik Sensörler Marka: SICK Açıklama Tecnichal data Features Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm Sensing distance ≤ 15 mm Sensing distance tolerance ± 4 mm Housing design Small Light source LED, RGB Wave length 640 nm, 525 nm, 470 nm Light spot size 4.9 mm x 10.1 mm Light spot direction Vertical Adjustment Teach-in button Teach-in mode Teach-in static/dynamic ET: Teach-in dynamic Mechanics/electronics Supply voltage 12 V DC … 24 V DC Ripple < 5 Vpp Current consumption < 50 mA Switching frequency 1.7 kHz Response time 300 µs Jitter 150 µs Switching output PNP Switching output (voltage) PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V Switching mode Light/dark switching Output (channel) 1 color Output current Imax. < 100 mA Input, teach-in (ET) PNP: Teach: U = 10 V … < VS, Run: U < 2 V or open Connection type Male connector M8, 4-pin Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Weight Approx. 20 g Housing material Plastic, ABS Optics material Plastic, PMMA Ambient data Ambient operating temperature –10 °C … +55 °C Ambient temperature, storage –20 °C … +75 °C Shock load According to IEC 60068 UL File No. NRKH.E348498 & NRKH7.E348498 Classifications ECLASS 5.0 27270907 ECLASS 5.1.4 27270907 ECLASS 6.0 27270907 ECLASS 6.2 27270907 ECLASS 7.0 27270907 ECLASS 8.0 27270907 ECLASS 8.1 27270907 ECLASS 9.0 27270907 ECLASS 10.0 27270907 ECLASS 11.0 27270907 ECLASS 12.0 27270907 ETIM 5.0 EC001817 ETIM 6.0 EC001817 ETIM 7.0 EC001817 ETIM 8.0 EC001817 UNSPSC 16.0901 39121528 Connection type/pinouts Connection type Male connector M8, 4-pin Pinouts BN 1 + (L+) WH 2 ET BU 3 – (M) BK 4 Q İlgili ürünler Photoelectric Sensor, Cylindrical Style, Diffuse, 100-100 mm Sensing Range, Visible Red LED, Light Operate – Dark Operate Output, PNP Output, Smooth Barrel, 18 mm Barrel, 4 Pin Micro M12 Integral Quick Disconnect Connector, Adjustable Sensitivity, 42CS – 42CSS-D2MPA1-D4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git Photoelectric Sensors – 42AF-E1UZB1-G4ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Endüstriyel bağlantı kablosu – 42CA-U2MNB-A2ALLEN BRADLEYFotoelektrik Sensörler ₺3.200,00 Ürüne Git Photoelectric Sensor, Fork Style, Visible Red LED, Light Operate – Dark Operate Selectable Output, NPN Output, 30 mm Gap, Plastic, 4 Pin Pico M8 Quick Disconnect Connector, Teachable Sensitivity – 45LSP-2LNA1-P4ALLEN BRADLEYFotoelektrik Sensörler ₺450,00 Ürüne Git
Tecnichal data Features Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm Sensing distance ≤ 15 mm Sensing distance tolerance ± 4 mm Housing design Small Light source LED, RGB Wave length 640 nm, 525 nm, 470 nm Light spot size 4.9 mm x 10.1 mm Light spot direction Vertical Adjustment Teach-in button Teach-in mode Teach-in static/dynamic ET: Teach-in dynamic Mechanics/electronics Supply voltage 12 V DC … 24 V DC Ripple < 5 Vpp Current consumption < 50 mA Switching frequency 1.7 kHz Response time 300 µs Jitter 150 µs Switching output PNP Switching output (voltage) PNP: HIGH = UV ≤ 2 V / LOW approx. 0 V Switching mode Light/dark switching Output (channel) 1 color Output current Imax. < 100 mA Input, teach-in (ET) PNP: Teach: U = 10 V … < VS, Run: U < 2 V or open Connection type Male connector M8, 4-pin Protection class III Circuit protection UV connections, reverse polarity protected Output Q short-circuit protected Interference pulse suppression Enclosure rating IP67 Weight Approx. 20 g Housing material Plastic, ABS Optics material Plastic, PMMA Ambient data Ambient operating temperature –10 °C … +55 °C Ambient temperature, storage –20 °C … +75 °C Shock load According to IEC 60068 UL File No. NRKH.E348498 & NRKH7.E348498 Classifications ECLASS 5.0 27270907 ECLASS 5.1.4 27270907 ECLASS 6.0 27270907 ECLASS 6.2 27270907 ECLASS 7.0 27270907 ECLASS 8.0 27270907 ECLASS 8.1 27270907 ECLASS 9.0 27270907 ECLASS 10.0 27270907 ECLASS 11.0 27270907 ECLASS 12.0 27270907 ETIM 5.0 EC001817 ETIM 6.0 EC001817 ETIM 7.0 EC001817 ETIM 8.0 EC001817 UNSPSC 16.0901 39121528 Connection type/pinouts Connection type Male connector M8, 4-pin Pinouts BN 1 + (L+) WH 2 ET BU 3 – (M) BK 4 Q
