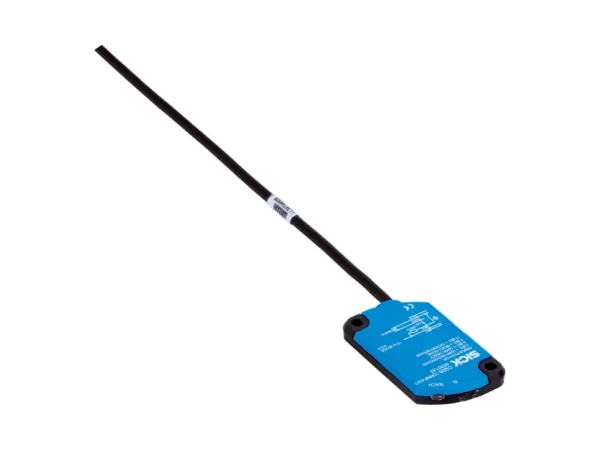

Home Kapasitif Sensörler CQ28-10NPP-KW1 – 6030132 🔍 CQ28-10NPP-KW1 – 6030132 ✉ Teklif Al Teklif Al Stok kodu: 6030132 Kategoriler: Kapasitif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Rectangular Dimensions (W x H x D) 28 mm x 46 mm x 5.5 mm Sensing range Sn 1 mm … 10 mm Safe sensing range Sa 7.2 mm Installation type Non-flush Switching frequency 10 Hz Connection type Cable, 4-wire, 2 m Switching output PNP Output function NC or NO Electrical wiring DC 4-wire Adjustment Single teach-in button (Sensitivity) Cable (Sensitivity) Enclosure rating IP68 Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2.5 V DC Current consumption 12 mA Time delay before availability ≤ 300 ms Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Cable material PVC Conductor size 0.14 mm² Short-circuit protection ✔ Reverse polarity protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –20 °C … +85 °C Ambient temperature, storage –40 °C … +85 °C Housing material Plastic, PBT Sensing face material Plastic UL File No. NRKH.E191603 Safety-related parameters MTTFD 1,112 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Metal 1 Water 1 PVC Approx. 0.4 Oil Approx. 0.25 Glass 0.6 Ceramics 0.5 Alcohol 0.7 Wood 0.2 … 0.7 Installation note Remark Associated graphic see “Installation” A 27.6 mm B 27.6 mm F 6 x Sn (max. 60 mm) Classifications eCl@ss 5.0 27270102 eCl@ss 5.1.4 27270102 eCl@ss 6.0 27270102 eCl@ss 6.2 27270102 eCl@ss 7.0 27270102 eCl@ss 8.0 27270102 eCl@ss 8.1 27270102 eCl@ss 9.0 27270102 eCl@ss 10.0 27270102 eCl@ss 11.0 27270102 eCl@ss 12.0 27274201 ETIM 5.0 EC002715 ETIM 6.0 EC002715 ETIM 7.0 EC002715 ETIM 8.0 EC002715 UNSPSC 16.0901 39122230 İlgili ürünler CMP400 – 2029468SICKKapasitif Sensörler ₺2.500,00 Ürüne Git CQ4-08EPOKP1 – 6051001SICKKapasitif Sensörler ₺2.500,00 Ürüne Git KHU53-XXX00054 – 1035446SICKKapasitif Sensörler ₺850,00 Ürüne Git CM18-08BPP-EW1 – 6058144SICKKapasitif Sensörler ₺2.500,00 Ürüne Git
Tecnichal data Features Housing Rectangular Dimensions (W x H x D) 28 mm x 46 mm x 5.5 mm Sensing range Sn 1 mm … 10 mm Safe sensing range Sa 7.2 mm Installation type Non-flush Switching frequency 10 Hz Connection type Cable, 4-wire, 2 m Switching output PNP Output function NC or NO Electrical wiring DC 4-wire Adjustment Single teach-in button (Sensitivity) Cable (Sensitivity) Enclosure rating IP68 Mechanics/electronics Supply voltage 10 V DC … 30 V DC Ripple ≤ 10 % Voltage drop ≤ 2.5 V DC Current consumption 12 mA Time delay before availability ≤ 300 ms Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Cable material PVC Conductor size 0.14 mm² Short-circuit protection ✔ Reverse polarity protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –20 °C … +85 °C Ambient temperature, storage –40 °C … +85 °C Housing material Plastic, PBT Sensing face material Plastic UL File No. NRKH.E191603 Safety-related parameters MTTFD 1,112 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Metal 1 Water 1 PVC Approx. 0.4 Oil Approx. 0.25 Glass 0.6 Ceramics 0.5 Alcohol 0.7 Wood 0.2 … 0.7 Installation note Remark Associated graphic see “Installation” A 27.6 mm B 27.6 mm F 6 x Sn (max. 60 mm) Classifications eCl@ss 5.0 27270102 eCl@ss 5.1.4 27270102 eCl@ss 6.0 27270102 eCl@ss 6.2 27270102 eCl@ss 7.0 27270102 eCl@ss 8.0 27270102 eCl@ss 8.1 27270102 eCl@ss 9.0 27270102 eCl@ss 10.0 27270102 eCl@ss 11.0 27270102 eCl@ss 12.0 27274201 ETIM 5.0 EC002715 ETIM 6.0 EC002715 ETIM 7.0 EC002715 ETIM 8.0 EC002715 UNSPSC 16.0901 39122230
