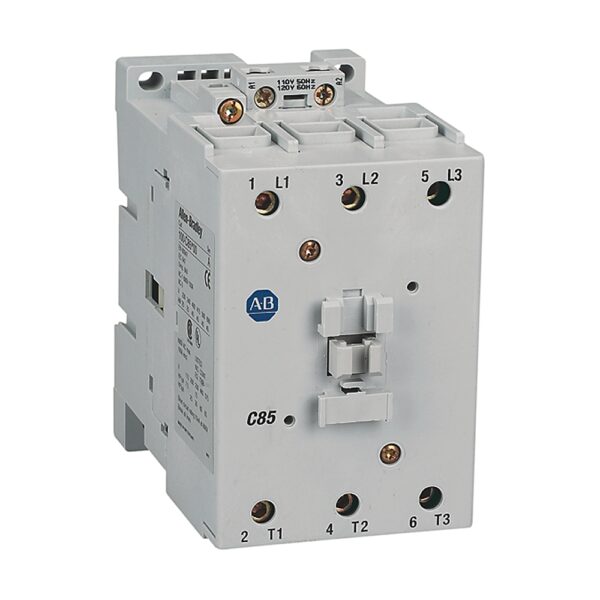

Name: Allen Bradley 100-C85D10 | Kontaktör | Royal Endüstriyel
Brand: ALLEN BRADLEY
SKU: 100-C85D10
Price: 2200.00 TRY
Availability: InStock

Contactor, 85 A, 110V 50 Hz/120V 60 Hz., AC, 3 Normally Open Poles, 1 NO Contacts & 0 NC Contacts, Single Pack, Line Side Coil Termination, Screw Terminals, Motor Load – 100-C85D10

✉ Teklif Al

Teklif Al

Stok kodu: 100-C85D10 Kategoriler: Kontaktörler Marka: ALLEN BRADLEY

Technical Specs

Specifications
Connection:Screw Terminals
Coil Voltage:110V 50Hz / 120V 60Hz
3-Phase kW (50 Hz) 230V Rating:25
3-Phase kW (50 Hz) 400V/415V Rating:45
3-Phase kW (50 Hz) 500V Rating:55
3-Phase kW (50 Hz) 690V Rating:45
1-Phase HP (60 Hz) 115V Rating:7.5
1-Phase HP (60 Hz) 230V Rating:15
3-Phase HP (60 Hz) 200V Rating:25
3-Phase HP (60 Hz) 230V Rating:30
3-Phase HP (60 Hz) 460V Rating:60
3-Phase HP (60 Hz) 575V Rating:60
Contactor Data
Terminal Type:Screw Terminals
Rated Operating Current, AC-3:85A
No. of Poles:3 Poles
Coil Termination:Line Side
Contact Configuration:1 N.O. 0 N.C. Auxiliary Contact Configuration
Package Quantity:1
Application Data
Electrical Standards:UL
Load Data [Optional]
Utilization Category:AC-3 Squirrel-cage motor starting and stopping
Life Data [Optional]
Actual Life:Actual Life Cannot be Calculated (more information)…
Terminal Marking Positions Used
100-C or 104-C Contactor:1_
Front Mounted Auxiliary Contact:None
Left Side Auxiliary Contact:None
Right Side Auxiliary Contact:None
Interlock:None

Contactor, 85 A, 110V 50 Hz/120V 60 Hz., AC, 3 Normally Open Poles, 1 NO Contacts & 0 NC Contacts, Single Pack, Line Side Coil Termination, Screw Terminals, Motor Load – 100-C85D10
