Tecnichal data
| Resistance tolerance | ñ5% |
| Dielectric withstanding voltage (resistor) | 700 V |
| Resistance value | 1200 MOhm |
| Standard resistance range | 1 to 100000000 Ohm |
| Rated continuous working voltage (resistor) | 0.5 x R or 300V maximum |
| Current, max | 24 A (bus), 0.25…0.5VA (resistor) |
| Rated voltage | 600 V |
| Type of component | Resistor |
| Voltage rating | 600V AC/DC |
| Resistor type | Carbon fixed, 1/2 Watt, 5% |
| Depth | 2.8 inch |
| Width | 0.24 inch |
| Height | 2.61 inch |
| Colour | Black |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Wire strip length | 0.38 inch |
| Wire range (rated cross section) | 30…12 AWG |

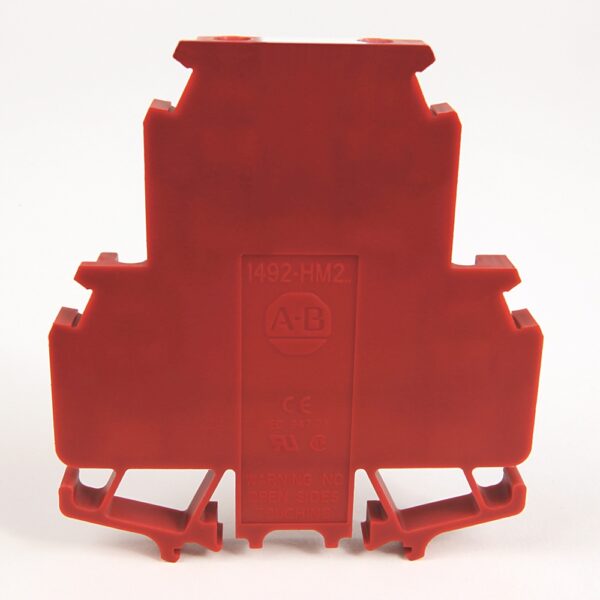

| Terminal block type | Resistor component, multi-rail |
| Closing plate required | Yes |
| Type of electrical connection 1 | Screw connection |
| Density | 50 pcs./ft |
| Recommended tightening torque | 3 lb.in |
| Bulletin number | Connection products |
| Operating temperature | -4 ðF |
| Storage temperature | -40 ðF |
| Insulation temperature | -40 ðF |
