Technical Specs
Proximity Sensor Data

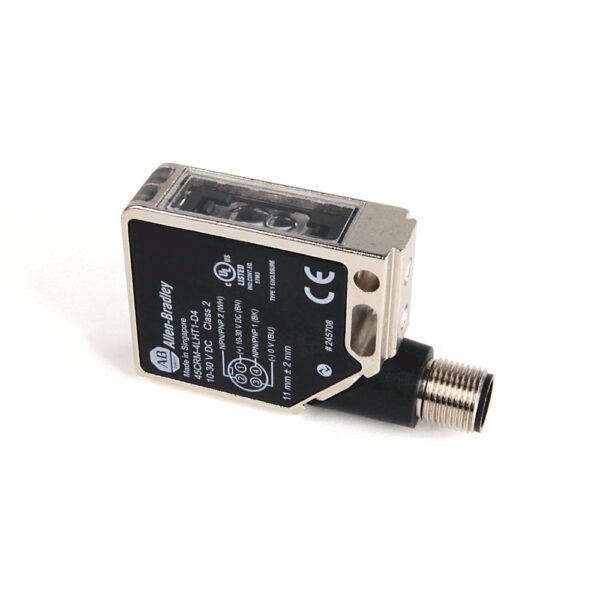

BulletinNo:45CRM Color Registration Mark
Nominal Sensing Distance:11 mm ± 2 mm (0.43 ± 0.079 in.)
Output Type:2 x NPN/PNP Complementary Outputs; IO-Link (V1.0)
IO-Link Enabled:Yes
Output Mode:Light or Dark Operation
Light Spot Orientation:1 mm x 3 mm ( Vertical)
Operating Voltage:10…30V DC (18…30V DC when operating in IO-Link mode)
Response Time:40us
Light Source:3 Visible LEDs (Red, Green, Blue)
Operating Temperature:-20…60C (-4…140F)
Operating Environment:IP67
Termination Type:Micro QD (DC)
Accessory Items
Connection Media:DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m
