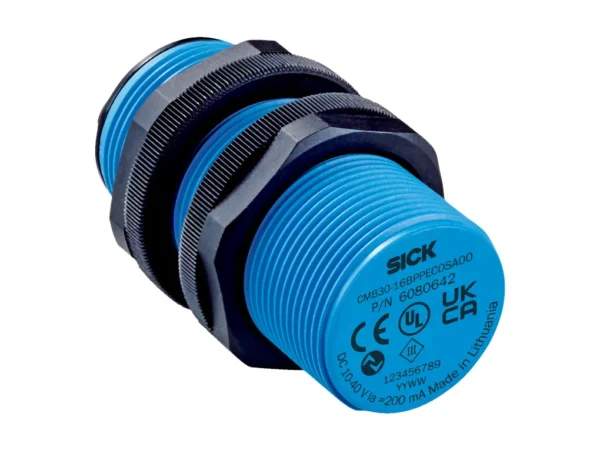

Home Kapasitif Sensörler CMB30-16BPPEC0SA00 – 6080642 🔍 CMB30-16BPPEC0SA00 – 6080642 ✉ Teklif Al Teklif Al Stok kodu: 6080642 Kategoriler: Kapasitif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Thread size M30 x 1.5 Diameter Ø 30 mm Sensing range Sn 0 mm … 16 mm Safe sensing range Sa 12.24 mm Installation type Flush Switching frequency 50 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function Complementary Output characteristic Wire configurable Electrical wiring DC 4-wire Adjustment Potentiometer, 11 turns (Sensitivity) Teach-in by wire (Sensitivity) IO-Link (Sensor parameters and Smart Task functions) Enclosure rating IP67 IP68 IP69K Special features Visual adjustment indicator, Smart Task, IO-Link Pin 2 configuration External input, Teach-in, switching signal Items supplied Mounting nut, PA12 plastic (2x) Screwdriver for potentiometer adjustment (1 x) Mechanics/electronics Supply voltage 10 V DC … 36 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V DC Current consumption ≤ 20 mA Time delay before availability ≤ 300 ms Hysteresis 3 % … 20 % Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % EMC EN 61000-4-2 ESD: > 40 kV CD and AD EN 61000-4-3 Radiated RF: 20 V/m EN 61000-4-4 burst: +/- 4 kV / 5 kHz EN 61000-4-5 Surge: Voltage supply > 2 kV with 500 ohm; switching output > 2 kV with 500 ohm EN 61000-4-6 HF: > 20 Vrms EN 61000-4-8 mains frequency magnetic fields: Permanent > 60 A/m, 75,9 µ tesla; briefly > 600 A/m, 759 µ tesla Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance EN 60068-2-27 shock resistance Ea: 30 g 11 ms; 3 shocks in each direction of the 3 coordinate axes IEC 60068-2-31 drop test: 2 times from 1 m, 100 times from 0.5 m EN 60068-2-6 vibration resistance Fc: 10 Hz … 150 Hz, 1 mm / 15 g Ambient operating temperature –30 °C … +85 °C Ambient temperature, storage –40 °C … +85 °C Housing material Plastic, PBT Housing length 74 mm Thread length 59.5 mm Tightening torque, max. ≤ 7.5 Nm UL File No. NRKH.E191603 Safety-related parameters MTTFD 786 years DCavg 0% TM (mission time) 20 years Communication interface Communication interface IO-Link V1.1 Communication Interface detail COM2 (38,4 kBaud) Cycle time > 5 ms Process data length 4 Byte Process data structure Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 = Sensor switching channel Qint1 Bit 3 = Sensor switching channel Qint2 Bit 4 = Contamination alarm for switching channel Qint1 Bit 5 = Contamination channel for Qint2 Bit 6 = Temperature alarm Bit 7 = Short-circuit Bit 16 … 31 = Analog value (digit value, not linearized) Reduction factors Note The values are reference values which may vary Metal 1 Water 1 PVC Approx. 0.4 Oil Approx. 0.25 Glass 0.6 Ceramics 0.5 Alcohol 0.7 Wood 0.2 … 0.7 Installation note Remark Associated graphic see “Installation” B 30 mm C 30 mm D 48 mm F 48 mm Smart Task Smart Task name Base logics Logic function Direct AND OR Window Hysteresis Timer function Deactivated On delay Off delay ON and OFF delay Impulse (one shot) Inverter Yes Switching signal Switching signal QL1 Switching output Switching signal QL2 Switching output Classifications eCl@ss 5.0 27270102 eCl@ss 5.1.4 27270102 eCl@ss 6.0 27270102 eCl@ss 6.2 27270102 eCl@ss 7.0 27270102 eCl@ss 8.0 27270102 eCl@ss 8.1 27270102 eCl@ss 9.0 27270102 eCl@ss 10.0 27270102 eCl@ss 11.0 27270102 eCl@ss 12.0 27274201 ETIM 5.0 EC002715 ETIM 6.0 EC002715 ETIM 7.0 EC002715 ETIM 8.0 EC002715 UNSPSC 16.0901 39122230 İlgili ürünler CQ4-08EPSKP1 – 6051000SICKKapasitif Sensörler ₺2.500,00 Ürüne Git CQ4-08ENSKU1 – 6051011SICKKapasitif Sensörler ₺2.500,00 Ürüne Git CQ28-10NNP-KW1 – 6030133SICKKapasitif Sensörler ₺2.500,00 Ürüne Git CQ28-10NNP-KW1S03 – 6049010SICKKapasitif Sensörler ₺2.500,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Thread size M30 x 1.5 Diameter Ø 30 mm Sensing range Sn 0 mm … 16 mm Safe sensing range Sa 12.24 mm Installation type Flush Switching frequency 50 Hz Connection type Male connector M12, 4-pin Switching output PNP Output function Complementary Output characteristic Wire configurable Electrical wiring DC 4-wire Adjustment Potentiometer, 11 turns (Sensitivity) Teach-in by wire (Sensitivity) IO-Link (Sensor parameters and Smart Task functions) Enclosure rating IP67 IP68 IP69K Special features Visual adjustment indicator, Smart Task, IO-Link Pin 2 configuration External input, Teach-in, switching signal Items supplied Mounting nut, PA12 plastic (2x) Screwdriver for potentiometer adjustment (1 x) Mechanics/electronics Supply voltage 10 V DC … 36 V DC Ripple ≤ 10 % Voltage drop ≤ 2 V DC Current consumption ≤ 20 mA Time delay before availability ≤ 300 ms Hysteresis 3 % … 20 % Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % EMC EN 61000-4-2 ESD: > 40 kV CD and AD EN 61000-4-3 Radiated RF: 20 V/m EN 61000-4-4 burst: +/- 4 kV / 5 kHz EN 61000-4-5 Surge: Voltage supply > 2 kV with 500 ohm; switching output > 2 kV with 500 ohm EN 61000-4-6 HF: > 20 Vrms EN 61000-4-8 mains frequency magnetic fields: Permanent > 60 A/m, 75,9 µ tesla; briefly > 600 A/m, 759 µ tesla Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance EN 60068-2-27 shock resistance Ea: 30 g 11 ms; 3 shocks in each direction of the 3 coordinate axes IEC 60068-2-31 drop test: 2 times from 1 m, 100 times from 0.5 m EN 60068-2-6 vibration resistance Fc: 10 Hz … 150 Hz, 1 mm / 15 g Ambient operating temperature –30 °C … +85 °C Ambient temperature, storage –40 °C … +85 °C Housing material Plastic, PBT Housing length 74 mm Thread length 59.5 mm Tightening torque, max. ≤ 7.5 Nm UL File No. NRKH.E191603 Safety-related parameters MTTFD 786 years DCavg 0% TM (mission time) 20 years Communication interface Communication interface IO-Link V1.1 Communication Interface detail COM2 (38,4 kBaud) Cycle time > 5 ms Process data length 4 Byte Process data structure Bit 0 = switching signal QL1 Bit 1 = switching signal QL2 Bit 2 = Sensor switching channel Qint1 Bit 3 = Sensor switching channel Qint2 Bit 4 = Contamination alarm for switching channel Qint1 Bit 5 = Contamination channel for Qint2 Bit 6 = Temperature alarm Bit 7 = Short-circuit Bit 16 … 31 = Analog value (digit value, not linearized) Reduction factors Note The values are reference values which may vary Metal 1 Water 1 PVC Approx. 0.4 Oil Approx. 0.25 Glass 0.6 Ceramics 0.5 Alcohol 0.7 Wood 0.2 … 0.7 Installation note Remark Associated graphic see “Installation” B 30 mm C 30 mm D 48 mm F 48 mm Smart Task Smart Task name Base logics Logic function Direct AND OR Window Hysteresis Timer function Deactivated On delay Off delay ON and OFF delay Impulse (one shot) Inverter Yes Switching signal Switching signal QL1 Switching output Switching signal QL2 Switching output Classifications eCl@ss 5.0 27270102 eCl@ss 5.1.4 27270102 eCl@ss 6.0 27270102 eCl@ss 6.2 27270102 eCl@ss 7.0 27270102 eCl@ss 8.0 27270102 eCl@ss 8.1 27270102 eCl@ss 9.0 27270102 eCl@ss 10.0 27270102 eCl@ss 11.0 27270102 eCl@ss 12.0 27274201 ETIM 5.0 EC002715 ETIM 6.0 EC002715 ETIM 7.0 EC002715 ETIM 8.0 EC002715 UNSPSC 16.0901 39122230
