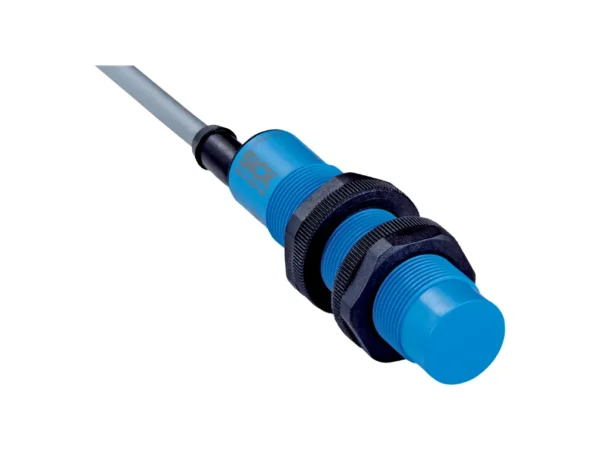

Home Kapasitif Sensörler CM18-12NNP-EW1 – 6058150 🔍 CM18-12NNP-EW1 – 6058150 ✉ Teklif Al Teklif Al Stok kodu: 6058150 Kategoriler: Kapasitif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 3 mm … 12 mm Safe sensing range Sa 9.18 mm Installation type Non-flush Switching frequency 50 Hz Connection type Cable, 4-wire, 2 m Switching output NPN Output function Complementary Output characteristic Wire configurable Electrical wiring DC 4-wire Adjustment Potentiometer, 11 turns (Sensitivity) Enclosure rating IP68 IP69K Items supplied Mounting nut, PA12 plastic (2x) Screwdriver for potentiometer adjustment (1 x) Mechanics/electronics Supply voltage 10 V DC … 36 V DC Ripple ≤ 10 % Voltage drop ≤ 2.5 V DC Current consumption 12 mA Time delay before availability ≤ 200 ms Hysteresis 3 % … 20 % Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Cable material PVC Conductor size 0.34 mm² Cable diameter Ø 5.2 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance According to EN 60068 Ambient operating temperature –30 °C … +85 °C Ambient temperature, storage –40 °C … +85 °C Housing material Plastic, PBT Housing length 86 mm Thread length 47 mm Tightening torque, max. ≤ 2.6 Nm UL File No. NRKH.E191603 Safety-related parameters MTTFD 919 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Metal 1 Water 1 PVC Approx. 0.4 Oil Approx. 0.25 Glass 0.6 Ceramics 0.5 Alcohol 0.7 Wood 0.2 … 0.7 Installation note Remark Associated graphic see “Installation” A 18 mm B 36 mm C 18 mm D 36 mm E 8 mm Classifications eCl@ss 5.0 27270102 eCl@ss 5.1.4 27270102 eCl@ss 6.0 27270102 eCl@ss 6.2 27270102 eCl@ss 7.0 27270102 eCl@ss 8.0 27270102 eCl@ss 8.1 27270102 eCl@ss 9.0 27270102 eCl@ss 10.0 27270102 eCl@ss 11.0 27270102 eCl@ss 12.0 27274201 ETIM 5.0 EC002715 ETIM 6.0 EC002715 ETIM 7.0 EC002715 ETIM 8.0 EC002715 UNSPSC 16.0901 39122230 İlgili ürünler KHU53-XXX00054 – 1035446SICKKapasitif Sensörler ₺850,00 Ürüne Git CM12-08EBP-KC1 – 6051030SICKKapasitif Sensörler ₺2.500,00 Ürüne Git CQ4-08ENOKP1 – 6051003SICKKapasitif Sensörler ₺2.500,00 Ürüne Git CQ4-08ENOKT1 – 6051007SICKKapasitif Sensörler ₺2.500,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Thread size M18 x 1 Diameter Ø 18 mm Sensing range Sn 3 mm … 12 mm Safe sensing range Sa 9.18 mm Installation type Non-flush Switching frequency 50 Hz Connection type Cable, 4-wire, 2 m Switching output NPN Output function Complementary Output characteristic Wire configurable Electrical wiring DC 4-wire Adjustment Potentiometer, 11 turns (Sensitivity) Enclosure rating IP68 IP69K Items supplied Mounting nut, PA12 plastic (2x) Screwdriver for potentiometer adjustment (1 x) Mechanics/electronics Supply voltage 10 V DC … 36 V DC Ripple ≤ 10 % Voltage drop ≤ 2.5 V DC Current consumption 12 mA Time delay before availability ≤ 200 ms Hysteresis 3 % … 20 % Reproducibility ≤ 5 % Temperature drift (of Sr) ± 10 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Cable material PVC Conductor size 0.34 mm² Cable diameter Ø 5.2 mm Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance According to EN 60068 Ambient operating temperature –30 °C … +85 °C Ambient temperature, storage –40 °C … +85 °C Housing material Plastic, PBT Housing length 86 mm Thread length 47 mm Tightening torque, max. ≤ 2.6 Nm UL File No. NRKH.E191603 Safety-related parameters MTTFD 919 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Metal 1 Water 1 PVC Approx. 0.4 Oil Approx. 0.25 Glass 0.6 Ceramics 0.5 Alcohol 0.7 Wood 0.2 … 0.7 Installation note Remark Associated graphic see “Installation” A 18 mm B 36 mm C 18 mm D 36 mm E 8 mm Classifications eCl@ss 5.0 27270102 eCl@ss 5.1.4 27270102 eCl@ss 6.0 27270102 eCl@ss 6.2 27270102 eCl@ss 7.0 27270102 eCl@ss 8.0 27270102 eCl@ss 8.1 27270102 eCl@ss 9.0 27270102 eCl@ss 10.0 27270102 eCl@ss 11.0 27270102 eCl@ss 12.0 27274201 ETIM 5.0 EC002715 ETIM 6.0 EC002715 ETIM 7.0 EC002715 ETIM 8.0 EC002715 UNSPSC 16.0901 39122230
