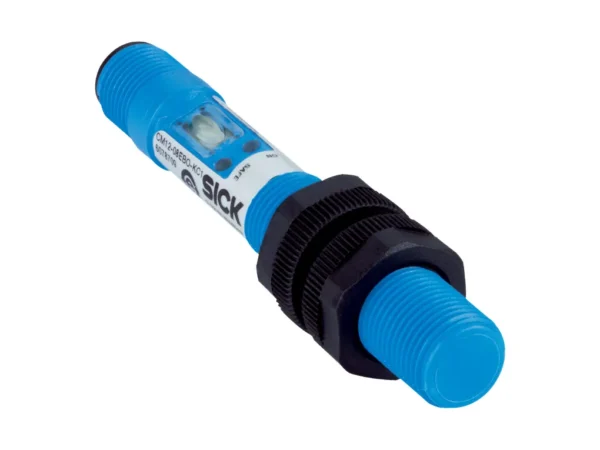

Home Kapasitif Sensörler CM12-08EBO-KC1 – 6078709 🔍 CM12-08EBO-KC1 – 6078709 ✉ Teklif Al Teklif Al Stok kodu: 6078709 Kategoriler: Kapasitif Sensörler Marka: SICK Açıklama Tecnichal data Features Housing Cylindrical thread design Thread size M12 x 1 Diameter Ø 12 mm Sensing range Sn 0.5 mm … 8 mm 0.5 mm … 4 mm Safe sensing range Sa 5.76 mm Installation type Non-flush / flush Switching frequency 15 Hz Connection type Male connector M12, 4-pin Switching output PNP / NPN Output function Programmable (factory setting: normally closed) Output characteristic Wire configurable Electrical wiring DC 4-wire Adjustment Single teach-in button (Sensitivity) Cable (Sensitivity) Enclosure rating IP68 (According to EN 60529) Items supplied Mounting nut, PA12 plastic (2x) Mechanics/electronics Supply voltage 10 V DC … 36 V DC Ripple ≤ 10 % Voltage drop ≤ 2.5 V DC Current consumption 12 mA Time delay before availability ≤ 120 ms Hysteresis 3 % … 20 % Reproducibility ≤ 5 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –20 °C … +85 °C Ambient temperature, storage –40 °C … +85 °C Housing material Plastic Housing length 84.7 mm Thread length 46.5 mm Tightening torque, max. ≤ 1 Nm UL File No. NRKH.E191603 Safety-related parameters MTTFD 607 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Metal 1 Water 1 PVC Approx. 0.4 Oil Approx. 0.25 Glass 0.6 Ceramics 0.5 Alcohol 0.7 Wood 0.2 … 0.7 Installation note Remark Associated graphic see “Installation” A 8 mm B 12 mm C 12 mm D 12 mm E 8 mm F 6 x Sn (max. 48 mm) Classifications eCl@ss 5.0 27270102 eCl@ss 5.1.4 27270102 eCl@ss 6.0 27270102 eCl@ss 6.2 27270102 eCl@ss 7.0 27270102 eCl@ss 8.0 27270102 eCl@ss 8.1 27270102 eCl@ss 9.0 27270102 eCl@ss 10.0 27270102 eCl@ss 11.0 27270102 eCl@ss 12.0 27274201 ETIM 5.0 EC002715 ETIM 6.0 EC002715 ETIM 7.0 EC002715 ETIM 8.0 EC002715 UNSPSC 16.0901 39122230 İlgili ürünler CQ4-08EPSKT1 – 6051004SICKKapasitif Sensörler ₺2.500,00 Ürüne Git CQ28-10NPP-KW1S02 – 6037194SICKKapasitif Sensörler ₺2.500,00 Ürüne Git CQ4-08EPOKP1 – 6051001SICKKapasitif Sensörler ₺2.500,00 Ürüne Git CMP400 – 2029468SICKKapasitif Sensörler ₺2.500,00 Ürüne Git
Tecnichal data Features Housing Cylindrical thread design Thread size M12 x 1 Diameter Ø 12 mm Sensing range Sn 0.5 mm … 8 mm 0.5 mm … 4 mm Safe sensing range Sa 5.76 mm Installation type Non-flush / flush Switching frequency 15 Hz Connection type Male connector M12, 4-pin Switching output PNP / NPN Output function Programmable (factory setting: normally closed) Output characteristic Wire configurable Electrical wiring DC 4-wire Adjustment Single teach-in button (Sensitivity) Cable (Sensitivity) Enclosure rating IP68 (According to EN 60529) Items supplied Mounting nut, PA12 plastic (2x) Mechanics/electronics Supply voltage 10 V DC … 36 V DC Ripple ≤ 10 % Voltage drop ≤ 2.5 V DC Current consumption 12 mA Time delay before availability ≤ 120 ms Hysteresis 3 % … 20 % Reproducibility ≤ 5 % EMC According to EN 60947-5-2 Continuous current Ia ≤ 200 mA Short-circuit protection ✔ Reverse polarity protection ✔ Power-up pulse protection ✔ Shock and vibration resistance 30 g, 11 ms / 10 … 55 Hz, 1 mm Ambient operating temperature –20 °C … +85 °C Ambient temperature, storage –40 °C … +85 °C Housing material Plastic Housing length 84.7 mm Thread length 46.5 mm Tightening torque, max. ≤ 1 Nm UL File No. NRKH.E191603 Safety-related parameters MTTFD 607 years DCavg 0 % TM (mission time) 20 years Reduction factors Note The values are reference values which may vary Metal 1 Water 1 PVC Approx. 0.4 Oil Approx. 0.25 Glass 0.6 Ceramics 0.5 Alcohol 0.7 Wood 0.2 … 0.7 Installation note Remark Associated graphic see “Installation” A 8 mm B 12 mm C 12 mm D 12 mm E 8 mm F 6 x Sn (max. 48 mm) Classifications eCl@ss 5.0 27270102 eCl@ss 5.1.4 27270102 eCl@ss 6.0 27270102 eCl@ss 6.2 27270102 eCl@ss 7.0 27270102 eCl@ss 8.0 27270102 eCl@ss 8.1 27270102 eCl@ss 9.0 27270102 eCl@ss 10.0 27270102 eCl@ss 11.0 27270102 eCl@ss 12.0 27274201 ETIM 5.0 EC002715 ETIM 6.0 EC002715 ETIM 7.0 EC002715 ETIM 8.0 EC002715 UNSPSC 16.0901 39122230
